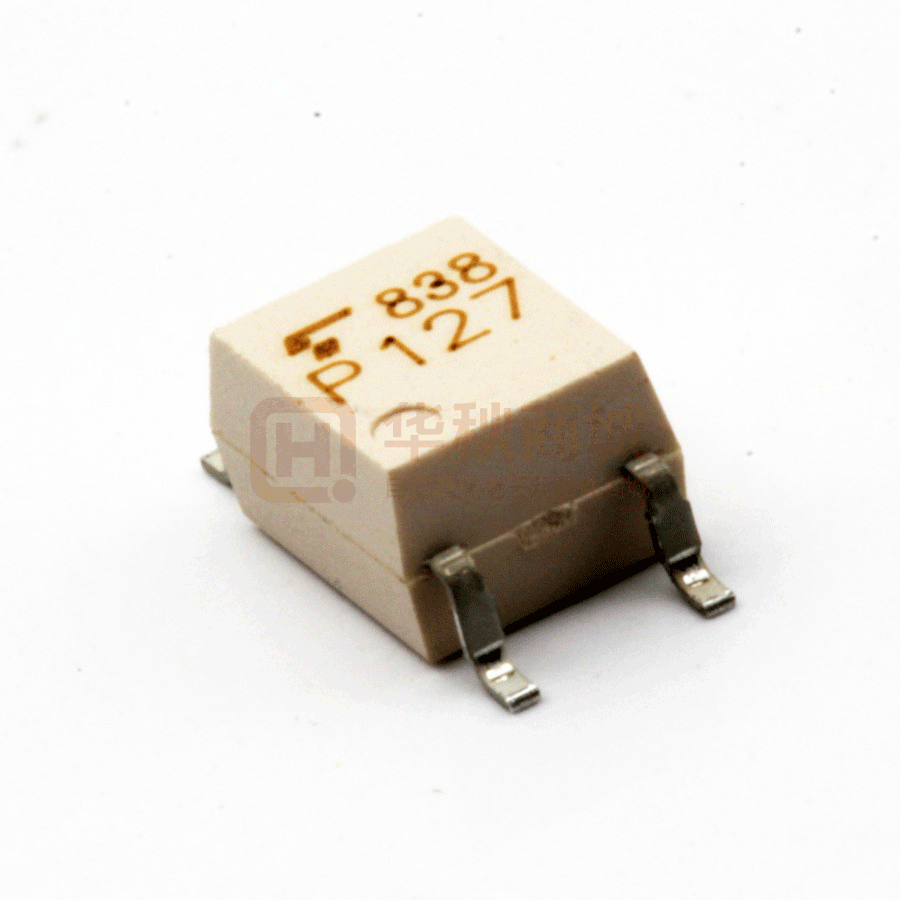

Images are for reference only

TLP127(TPL,U,F)

  • Mfr Part #TLP127(TPL,U,F)
  • ManufacturerToshiba
  • HQ Part #IS0015546
  • PackageSOP4_3.6X4.4MM
  • Lead Time Ship immediately
  • Description300V 2500V 15us@10mA,100Ω 150mA 40us@10mA,100Ω -55℃~+100℃ 1.2V@100mA,10mA 1 5V 1.15V Photodarlington DC SOP-4-2.54mm Optocouplers - Phototransistor Output ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Number Of Channels1Channel
Current Transmission Ratio1000%
Input Terminal TypeDC
Type Of OutputTransistor
Power200mW
Size3.60 x 4.40mm
Installation Type-
Moisture Sensitivity Level (MSL)-
Forward Voltage (Vf)1.15V
Operating Temperature-55°C~100°C
Package / CaseSOP4_3.6X4.4MM
Lead Quantity4Pins
Storage Temperature-55~+125℃
Partlife CycleActive
Country of OriginJapan
Original ManufacturerToshiba Corporation
BrandToshiba
Isolation Voltage2.5KV
Part StatusActive
Forward Current50mA
Terms of Service
ShippingDelivery Period For stock parts, orders placed on HQ Online from 8:00-16:00 will be dispatched on the same day
Once shipped, the transit time depends on the logistics provider you choose:
DHL Express, 3-5 days
FedEx International, 3-5 days
China Post Airmail, 15-45 days
Shipping RateShipping rate for your order can be found in the shopping cart.
Shipping OptionWe provide DHL, FedEx, and China Post Airmail shipping.
Shipping TrackingWe will notify you by email with a tracking number once the order is shipped. You can also find the tracking number in the order history.
Returning/WarrantyReturning HQ Online only accepts return requests due to quality issues. Return requests should be submitted within 30 days of delivery of the goods, please contact customer service for a return authorization.
Parts should be unused and in original packaging.
The customer has to take charge of the shipping.
Warranty All HQ Online purchases come with a 30-day money-back return policy, plus a 90-day HQ Online warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by the customer to follow instructions, product modification, negligent or improper operation.
OrderingHow to Buy HQ Online accepts online orders.
Add to cart > Check out > Submit order > Complete payment >Delivery
Payment PayPal, Payoneer, Credit Card includes Visa, Master, American Express, JCB, Discover.
Western Union, Bank Transfer, Payoneer, AliExpress.
7,581 In Stock
Qty
Minimum1 Mutiple1
Unit Price$ 0.0557
Ext Price$ 0
Add to Cart
Buy Now
Pricing (USD)
QtyUnit PriceExt Price
1+$0.44785 $0.44785
30+$0.43138 $12.94140
100+$0.39843 $39.84300
500+$0.36547 $182.73500
1000+$0.34900 $349.undefined
