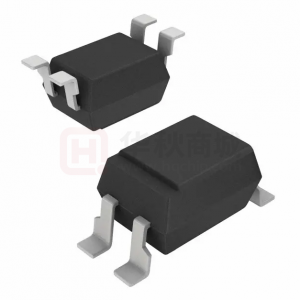

Images are for reference only

Photocouplers Fairchild FOD817ASD

  • Mfr Part #FOD817ASD
  • ManufacturerFairchild
  • HQ Part #IS0015822
  • PackageOC_7X5.1MM_SM
  • Lead Time Ship immediately
  • DescriptionInput voltage type: DC output channel number: 1 Forward voltage: 1.2V Reverse voltage: 6V Output current: 50mA Receiving terminal voltage: 70V Emitter saturation voltage (Vce(sat)@Ic,IF) : 100mV@1mA,20mA isolation voltage (rms) : 5kV

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Number Of Circuit Groups (Number Of Channels)1Channel
Current Transmission Ratio160%
Input Terminal TypeDC
Type Of Output-
Power200mW
Size7.00 x 5.10mm
Installation Type-
Operating Temperature-55°C~110°C
Storage Temperature-55~+125℃
Partlife CycleActive
Country of OriginAmerica
Original ManufacturerON Semiconductor Inc.
BrandFairchild
Isolation Voltage5KV
Part StatusActive
Forward Current50mA
