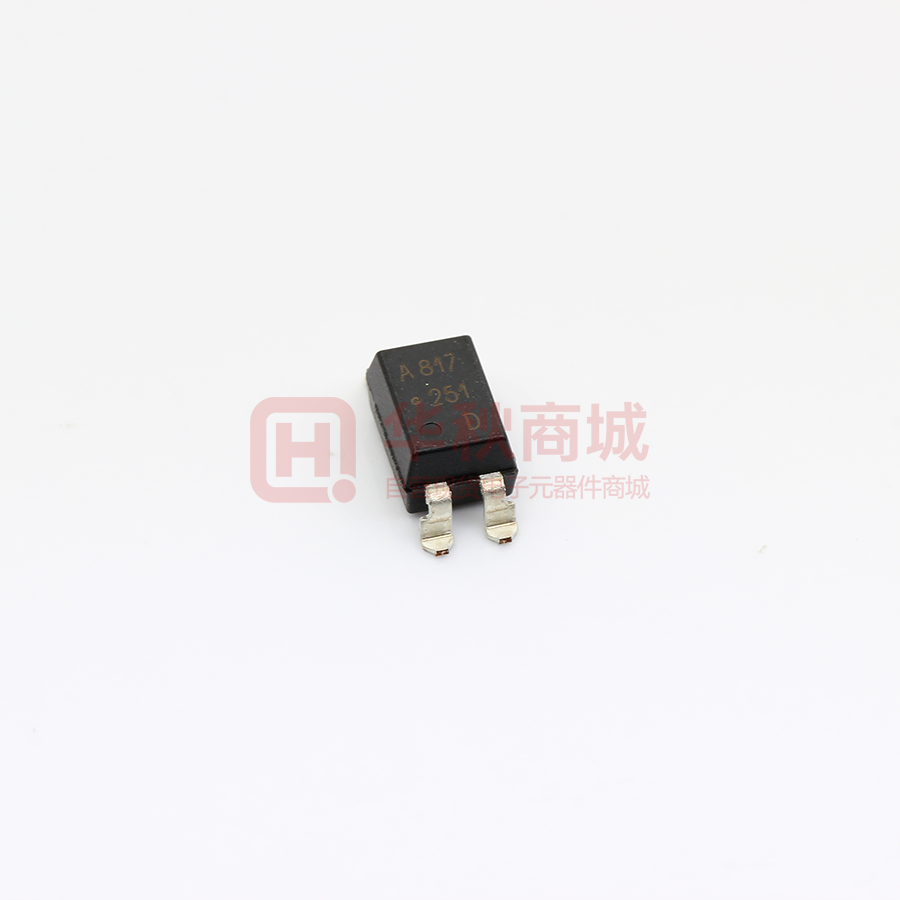

Images are for reference only
HCPL-817-30DE
- Mfr Part #HCPL-817-30DE
- ManufacturerBroadcom
- HQ Part #IS0002719
- PackageSOIC4_6.5X4.6MM
- Lead Time Ship immediately
Description4-SMD unidirectional optical coupling Viso=5000Vrms VF(typ)=1.2V IF=50mA Vo=70V CTR=300-600%
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Number Of Channels | 1Channel | |
| Current Transmission Ratio | 600% | |
| Input Terminal Type | DC | |
| Type Of Output | - | |
| Size | 6.50 x 4.60mm | |
| Installation Type | SMT | |
| Moisture Sensitivity Level (MSL) | - | |
| Forward Voltage (Vf) | 1.2V | |
| Operating Temperature | -30℃~+100℃ | |
| Package / Case | SOIC4_6.5X4.6MM | |
| Number of Output Channels | 1 | |
| Storage Temperature | -55℃~+125℃ | |
| Output Current | 30mA | |
| Partlife Cycle | Active | |
| Country of Origin | America | |
| Original Manufacturer | Broadcom Limited | |
| Isolation Voltage | 5KV | |
| Height | 3.50mm | |
| Part Status | Active | |
| Forward Current | 50mA |
