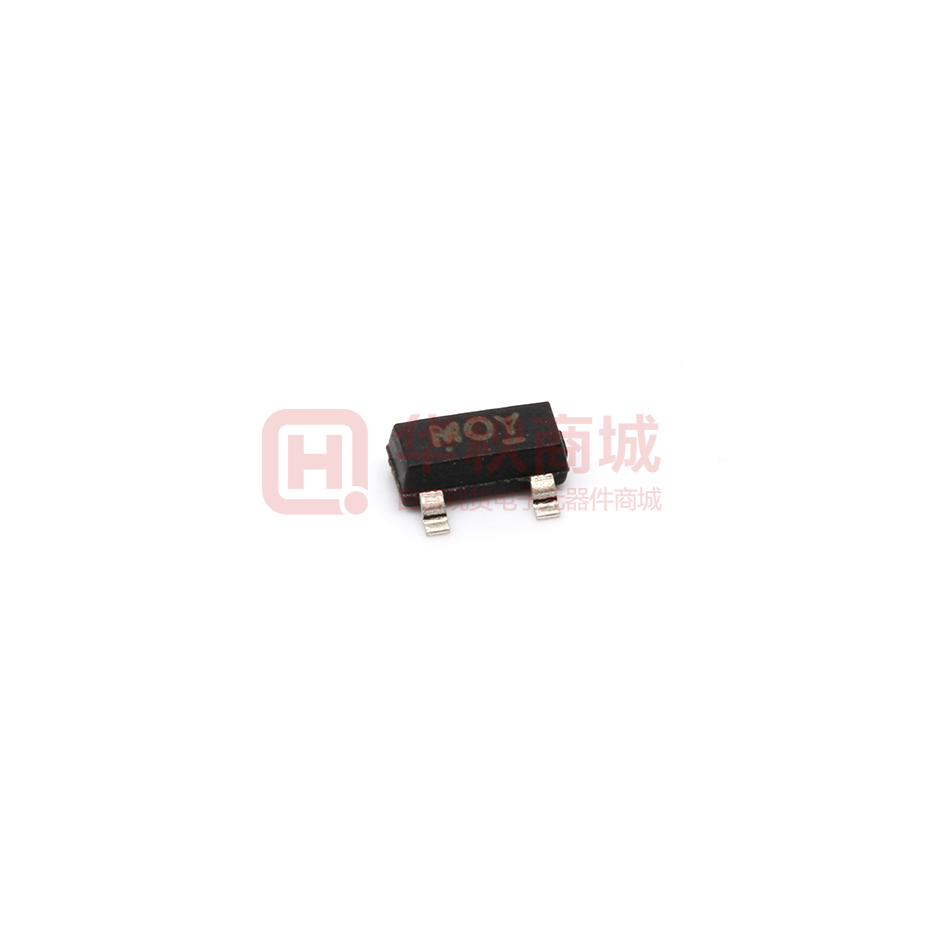

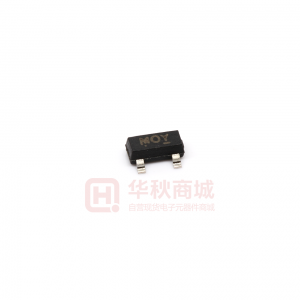

Images are for reference only

WST3403

  • Mfr Part #WST3403
  • ManufacturerWINSOK
  • HQ Part #DS0140001
  • PackageSOT23N
  • Lead Time Ship immediately
  • Description30V 3.5A 75mΩ@4.5V,3A 1W 1.2V@250uA P Channel SOT-23-3L MOSFETs ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureSingle
Continuous Drain Current3.5A
Threshold Voltage700mV@250µA
Drain Current-3.5A
Drain Source Voltage (Vdss)30V
Operating Temperature-55~+150℃
Installation Type-
Transistor Type-
Package / CaseSOT23N
Power Dissipation1W
Total Gate Charge9.7nC
Reverse Transfer Capacitance80.4pF
Breakdown voltage of grid and source±20V
Breakdown Voltage30V
PolarizationP-channel
Storage Temperature-55~+150℃
Lead Quantity3Pin
Height1.15mm
L x W/Size2.90 x 1.30mm
Country of OriginChina
Original ManufacturerWinsok power Semiconductor CO., LTD
BrandWinsok
Rdson (Maximum) For Different Ids And Vgs75mΩ
Terms of Service
ShippingDelivery Period For stock parts, orders placed on HQonline from 8:00-16:00 will be dispatched on the same day
Once shipped, the transit time depends on the logistics provider you choose:
DHL Express, 3-5 days
FedEx International, 3-5 days
China Post Airmail, 15-45 days
Shipping RateShipping rate for your order can be found in the shopping cart.
Shipping OptionWe provide DHL, FedEx, and China Post Airmail shipping.
Shipping TrackingWe will notify you by email with a tracking number once the order is shipped. You can also find the tracking number in the order history.
Returning/WarrantyReturning HQonline only accepts return requests due to quality issues. Return requests should be submitted within 30 days of delivery of the goods, please contact customer service for a return authorization.
Parts should be unused and in original packaging.
The customer has to take charge of the shipping.
Warranty All HQonline purchases come with a 30-day money-back return policy, plus a 90-day HQonline warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by the customer to follow instructions, product modification, negligent or improper operation.
OrderingHow to Buy HQonline accepts online orders.
Add to cart > Check out > Submit order > Complete payment >Delivery
Payment PayPal, Payoneer, Credit Card includes Visa, Master, American Express, JCB, Discover.
Western Union, Bank Transfer, Payoneer, AliExpress.
3,000 In Stock
Qty
Minimum10 Mutiple10
Unit Price$ 0.0557
Ext Price$ 0
Add to Cart
Buy Now
Pricing (USD)
QtyUnit PriceExt Price
10+$0.03315 $0.33150
50+$0.03060 $1.53000
200+$0.02848 $5.69600
600+$0.02636 $15.81600
1500+$0.02466 $36.99000
3000+$0.02360 $70.80000
