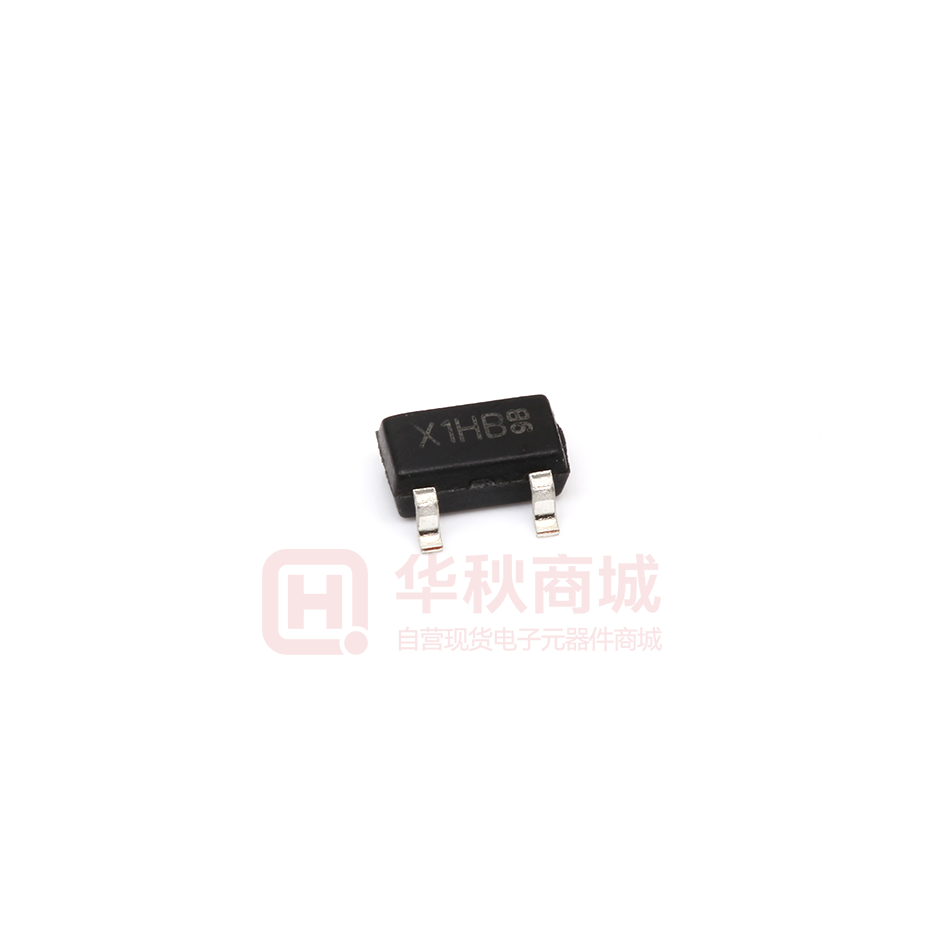

Images are for reference only

WST3401

  • Mfr Part #WST3401
  • ManufacturerWINSOK
  • HQ Part #DS0140000
  • PackageSOT-23
  • Lead Time Ship immediately
  • Description30V 5.5A 52mΩ@10V,3A 1W 1.2V@250uA P Channel SOT-23-3L MOSFETs ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureSingle
Continuous Drain Current5.5A
Threshold Voltage1.2V@250µA
Drain Current-5.5A
Drain Source Voltage (Vdss)30V
Operating Temperature-55~+150℃
Installation Type-
Transistor Type-
Power Dissipation1W
Total Gate Charge6.4nC
Reverse Transfer Capacitance80pF
Breakdown voltage of grid and source±12V
Breakdown Voltage30V
PolarizationP-channel
Storage Temperature-55~+150℃
Lead Quantity3Pin
Height1.25mm
L x W/Size2.92 x 1.60mm
Country of OriginChina
Original ManufacturerWinsok power Semiconductor CO., LTD
BrandWinsok
Rdson (Maximum) For Different Ids And Vgs52mΩ
