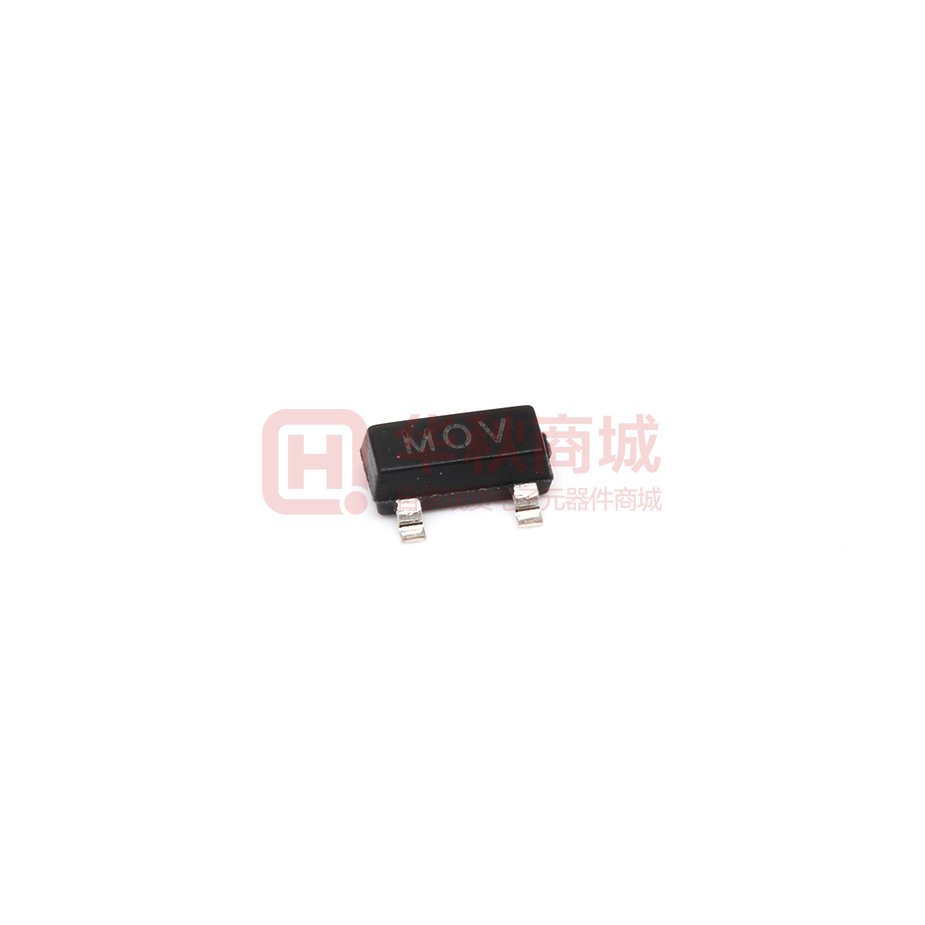

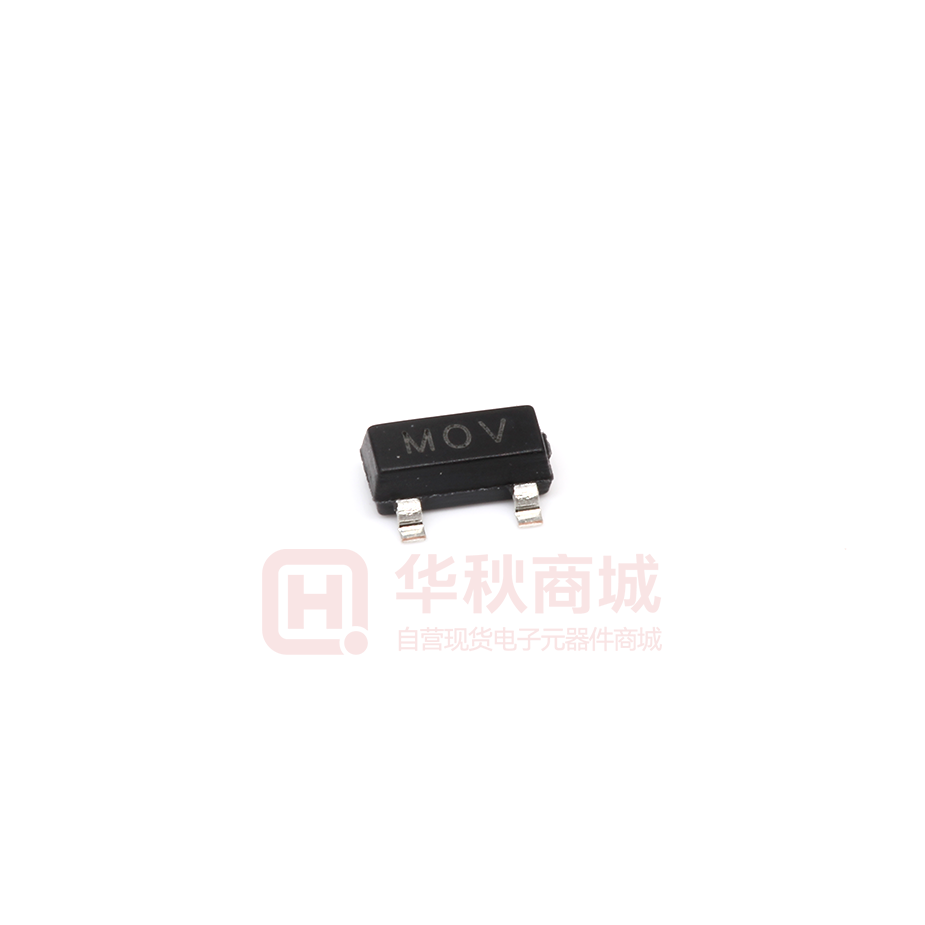

Images are for reference only

WST3400S

  • Mfr Part #WST3400S
  • ManufacturerWINSOK
  • HQ Part #DS0139999
  • PackageSOT23N
  • Lead Time Ship immediately
  • Description30V 5.6A 32mΩ@4.5V,5A 1W 1V@250uA N Channel SOT-23-3L MOSFETs ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureSingle
Continuous Drain Current5.6A
Threshold Voltage800mV@250µA
Drain Current5.6A
Drain Source Voltage (Vdss)30V
Operating Temperature-55~+150℃
Installation Type-
Transistor Type-
Package / CaseSOT23N
Power Dissipation1W
Total Gate Charge5.5nC
Reverse Transfer Capacitance45pF
Breakdown voltage of grid and source±12V
Breakdown Voltage30V
PolarizationN-Channel
Storage Temperature-55~+150℃
Lead Quantity3Pin
Height1.15mm
L x W/Size2.90 x 1.30mm
Country of OriginChina
Original ManufacturerWinsok power Semiconductor CO., LTD
BrandWinsok
Rdson (Maximum) For Different Ids And Vgs32mΩ
