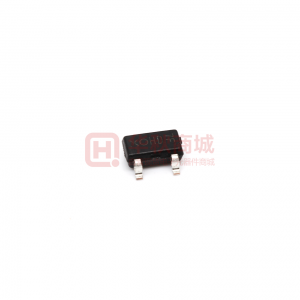

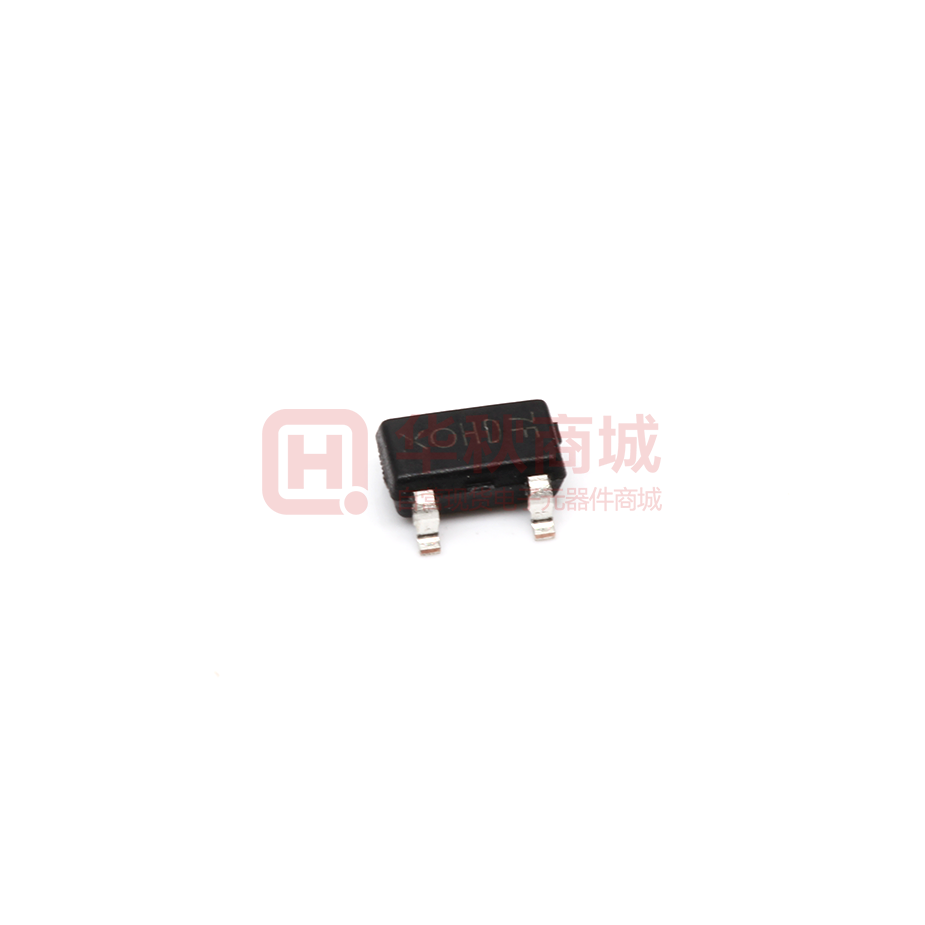

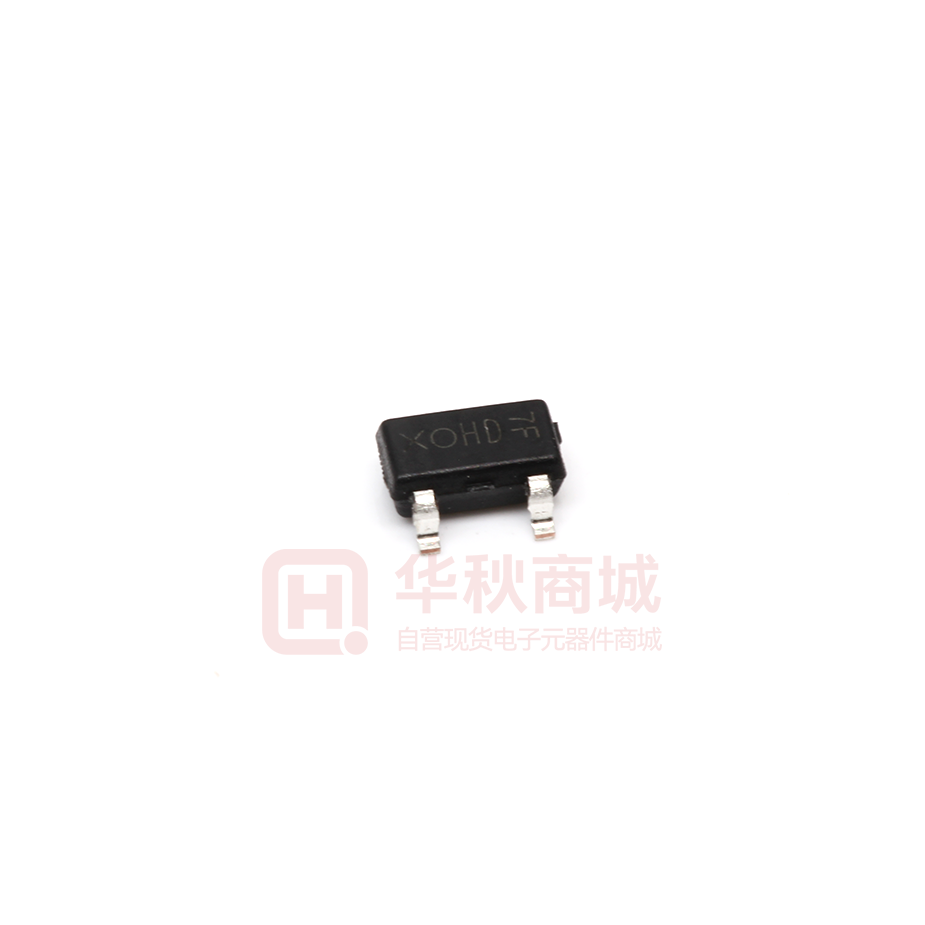

Images are for reference only

WST3400

  • Mfr Part #WST3400
  • ManufacturerWINSOK
  • HQ Part #DS0139998
  • PackageSOT-23
  • Lead Time Ship immediately
  • Description30V 7A 28mΩ@4.5V,5A 1W 1.2V@250uA N Channel SOT-23-3L MOSFETs ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureSingle
Continuous Drain Current7A
Threshold Voltage800mV@250µA
Drain Current7A
Drain Source Voltage (Vdss)30V
Operating Temperature-55~+150℃
Installation Type-
Transistor Type-
Power Dissipation1W
Total Gate Charge6nC
Reverse Transfer Capacitance65pF
Breakdown voltage of grid and source±12V
Breakdown Voltage30V
PolarizationN-Channel
Storage Temperature-55~+150℃
Lead Quantity3Pin
Height1.25mm
L x W/Size2.92 x 1.60mm
Country of OriginChina
Original ManufacturerWinsok power Semiconductor CO., LTD
BrandWinsok
Rdson (Maximum) For Different Ids And Vgs28mΩ
