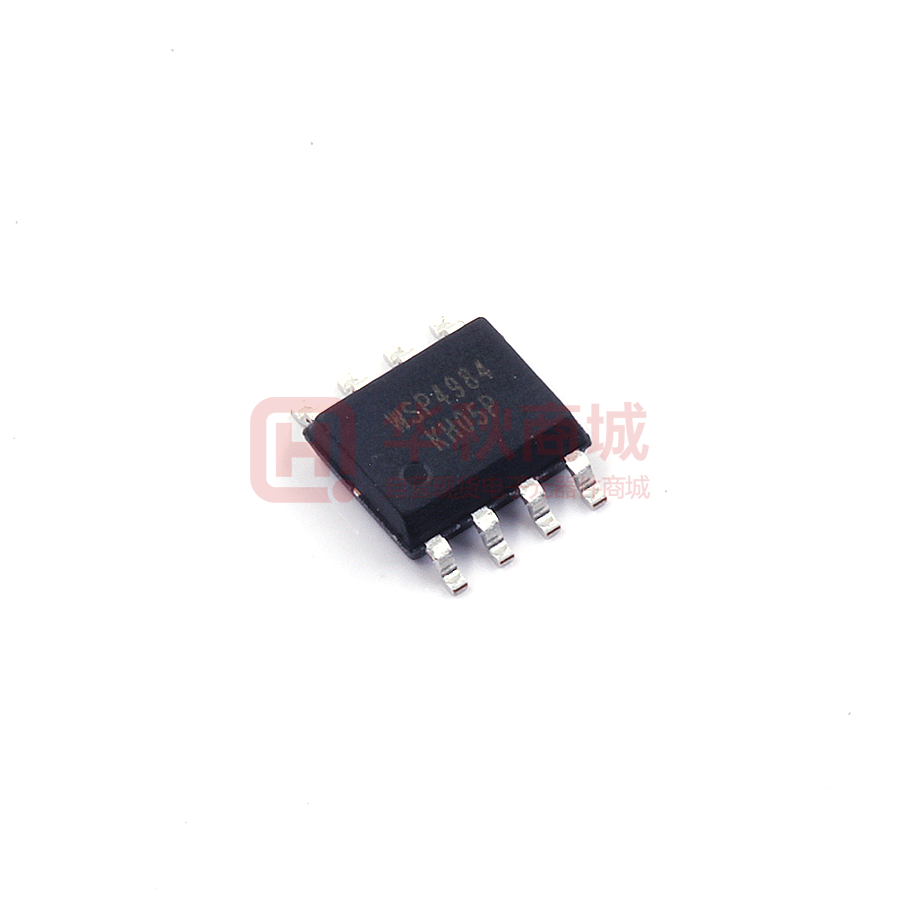

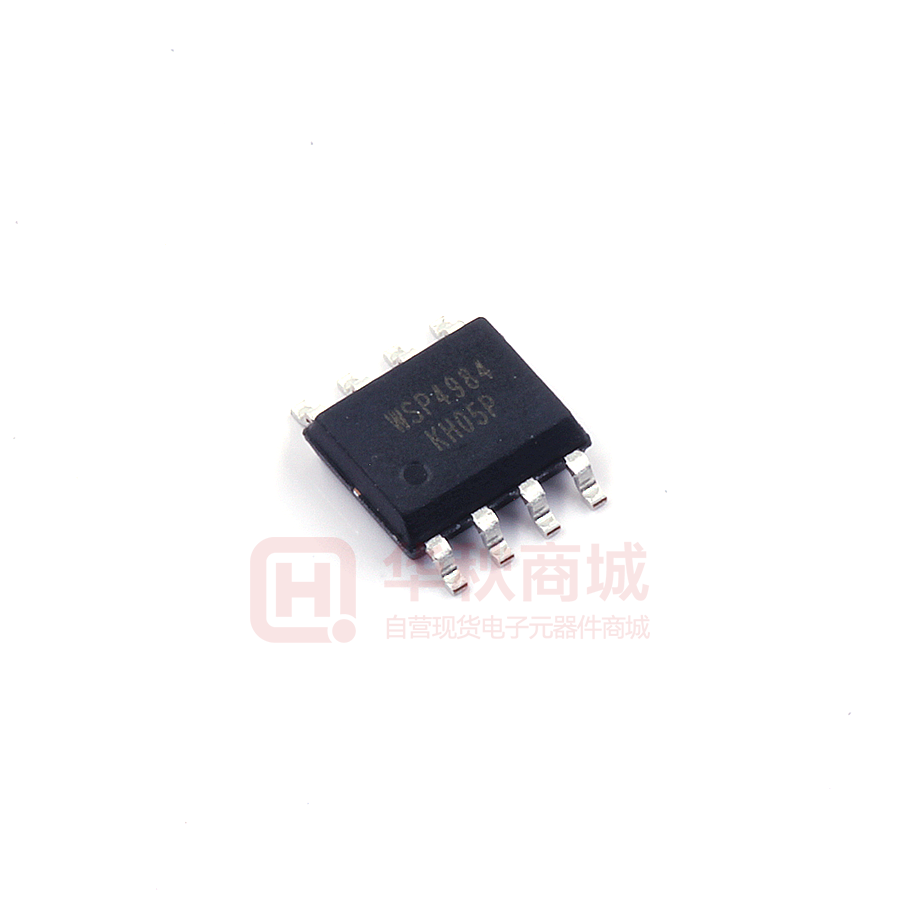

Images are for reference only

WSP4984

  • Mfr Part #WSP4984
  • ManufacturerWINSOK
  • HQ Part #DS0139946
  • PackageSOP8_150MIL
  • Lead Time Ship immediately
  • Description40V 10A 2W 20mΩ@10V,6.6A 2.7V@250uA 2 N-Channel SOP-8 MOSFETs ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureDual
Continuous Drain Current10A
Threshold Voltage2.2V@250µA
Drain Current10A
Drain Source Voltage (Vdss)40V
Operating Temperature-55~+150℃
Installation Type-
Transistor Type2 N-Channel (Dual)
Package / CaseSOP8_150MIL
Power Dissipation2W
Total Gate Charge13.6nC
Reverse Transfer Capacitance135pF
Breakdown voltage of grid and source±20V
Breakdown Voltage40V
PolarizationN-Channel
Storage Temperature-55~+150℃
Lead Quantity8Pin
Height1.75mm
L x W/Size4.90 x 3.90mm
Country of OriginChina
Original ManufacturerWinsok power Semiconductor CO., LTD
BrandWinsok
Rdson (Maximum) For Different Ids And Vgs20mΩ
