Images are for reference only

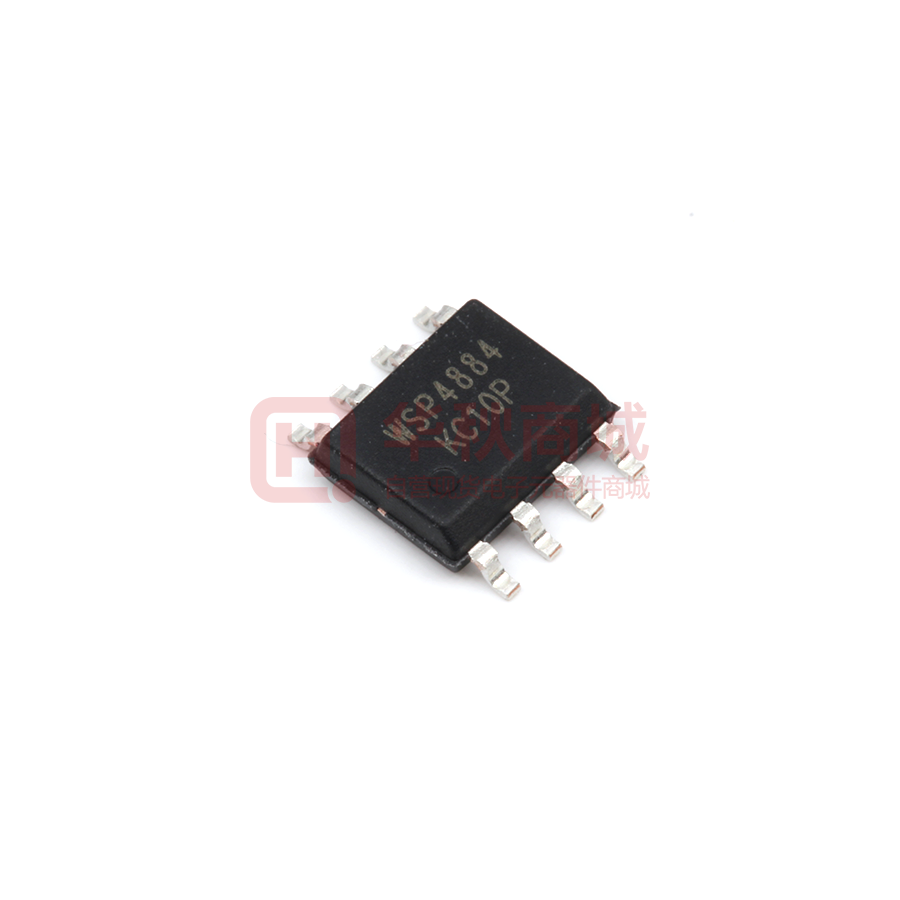

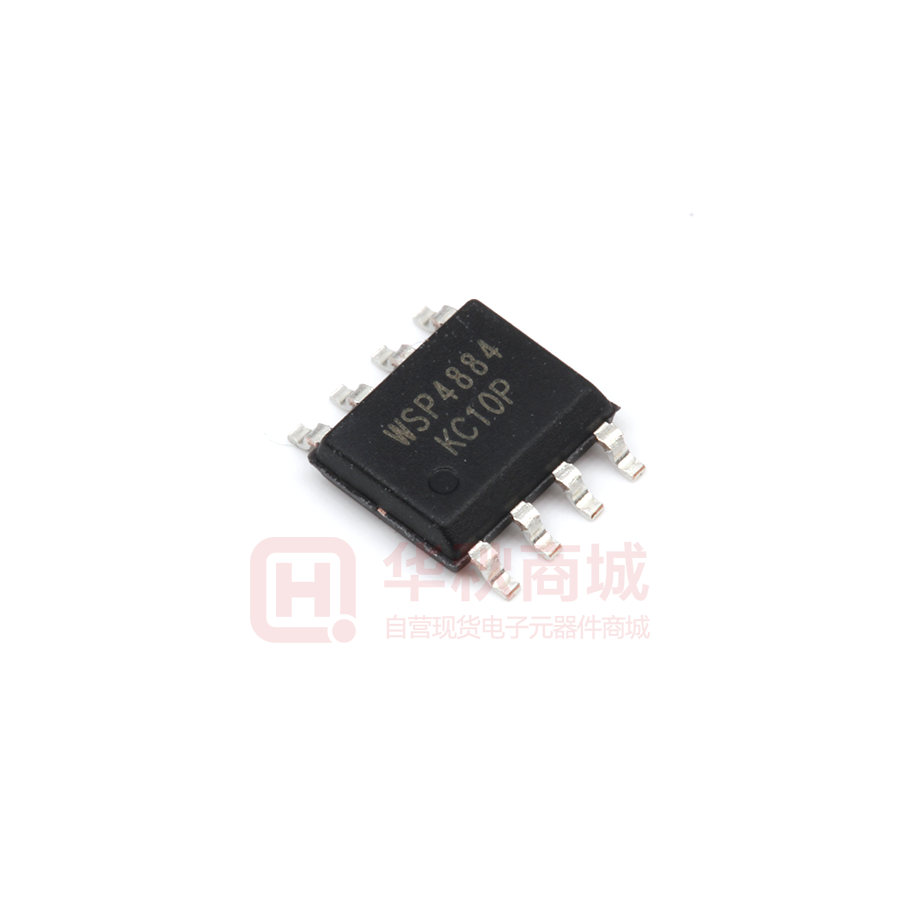

WSP4884

  • Mfr Part #WSP4884
  • ManufacturerWINSOK
  • HQ Part #DS0139942
  • PackageSOP8_150MIL
  • Lead Time Ship immediately
  • Description30V 8.8A 2W 23mΩ@10V,8.5A 2.5V@250uA 2 N-Channel SOP-8 MOSFETs ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureDual
Continuous Drain Current8.8A
Threshold Voltage1.8V@250µA
Drain Current8.8A
Drain Source Voltage (Vdss)30V
Operating Temperature-55~+150℃
Installation Type-
Transistor Type2 N-Channel (Dual)
Package / CaseSOP8_150MIL
Power Dissipation2W
Total Gate Charge6nC
Reverse Transfer Capacitance57pF
Breakdown voltage of grid and source±20V
Breakdown Voltage30V
PolarizationN-Channel
Storage Temperature-55~+150℃
Lead Quantity8Pin
Height1.75mm
L x W/Size4.90 x 3.90mm
Country of OriginChina
Original ManufacturerWinsok power Semiconductor CO., LTD
BrandWinsok
Rdson (Maximum) For Different Ids And Vgs23mΩ
