Restocking

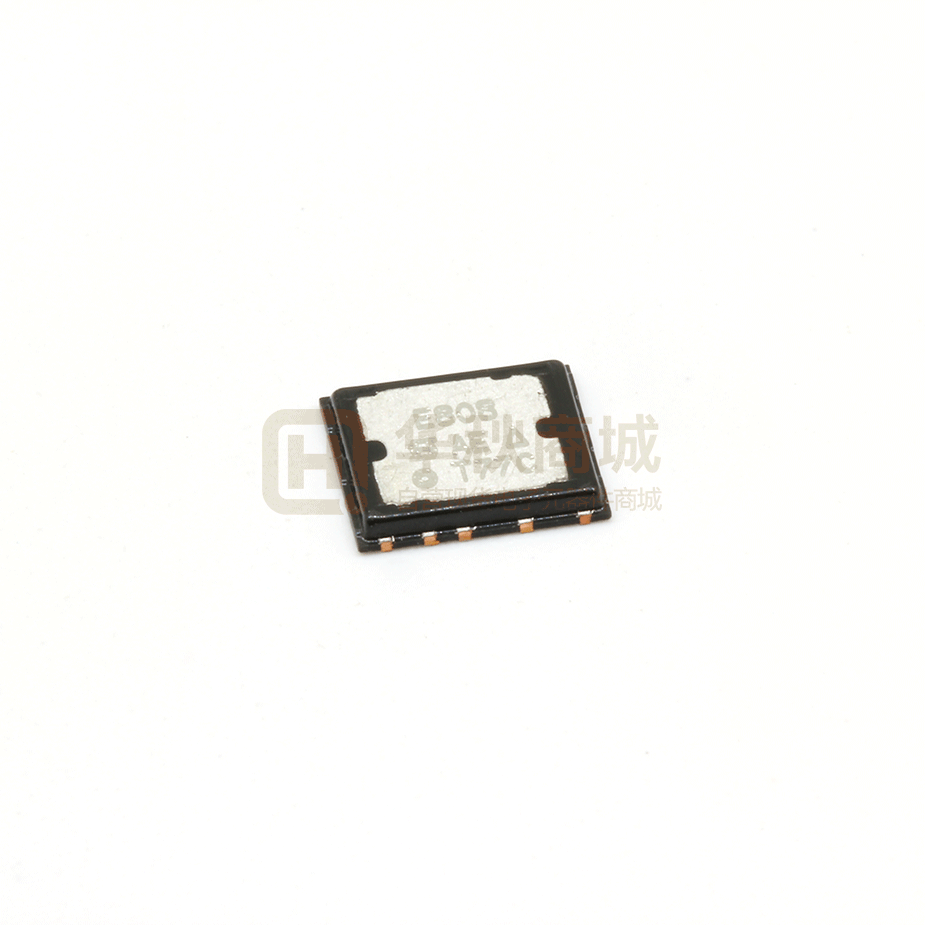

Images are for reference only

MOSFETs Vishay SIE808DF-T1-E3

  • Mfr Part #SIE808DF-T1-E3
  • ManufacturerVishay
  • HQ Part #DS0077671
  • PackagePPAK10_5.89X4.9MM
  • Lead Time Ship immediately
  • Description20V 60A 1.6mΩ@25A,10V 3V@250uA N Channel 8800pF@10V 155nC@10V -55℃~+150℃@(Tj) PolarPAK-10 MOSFETs ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureSingle
Continuous Drain Current45A
Threshold Voltage3V@250µA
Drain Current60A
Drain Source Voltage (Vdss)20V
Operating Temperature-55~+150℃
Installation Type-
Transistor Type-
Package / CasePPAK10_5.89X4.9MM
Power Dissipation5.2W
Total Gate Charge102nC
Reverse Transfer Capacitance600pF
Breakdown voltage of grid and source±20V
Breakdown Voltage20V
PolarizationN-Channel
Storage Temperature-55~+150℃
Height0.85mm
L x W/Size5.89 x 4.90mm
Country of OriginAmerica
Original ManufacturerVishay Intertechnology, Inc.
BrandVishay
TechnologyMOSFET (Metal Oxide)
Rdson (Maximum) For Different Ids And Vgs-
Moisture Sensitivity Level (MSL)-
Lead Free Or Not-
SeriesTrenchFET®
Part Status-
