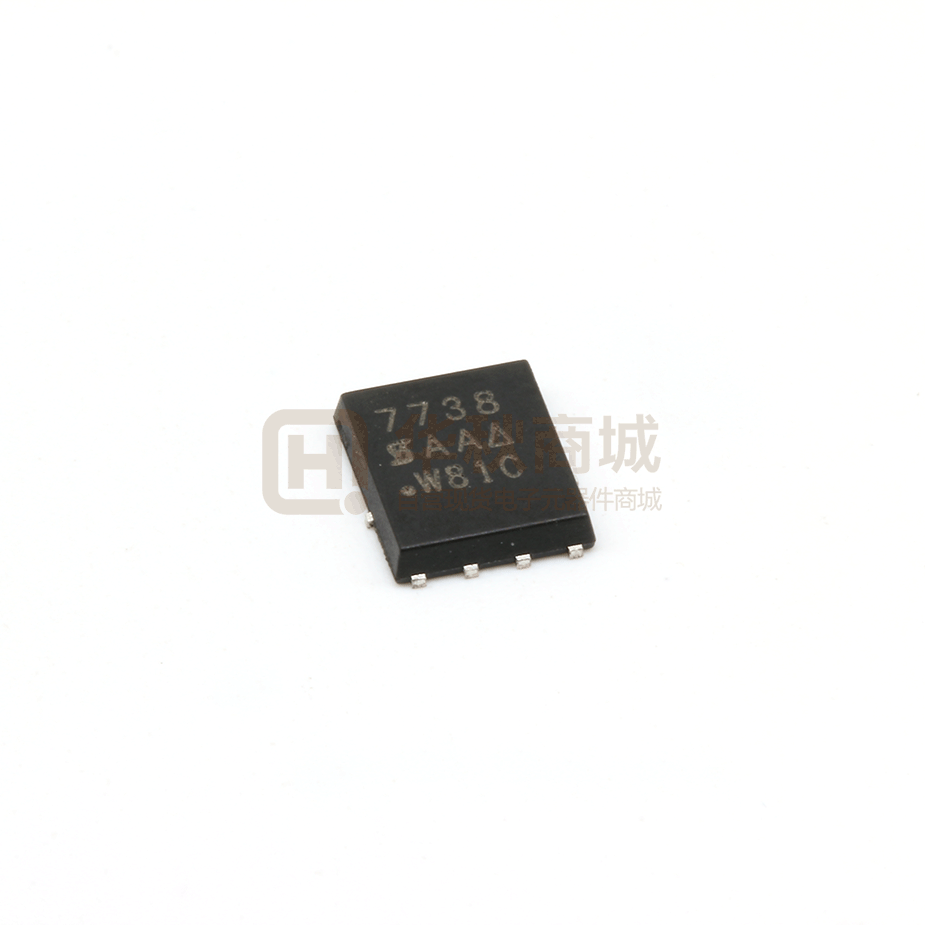

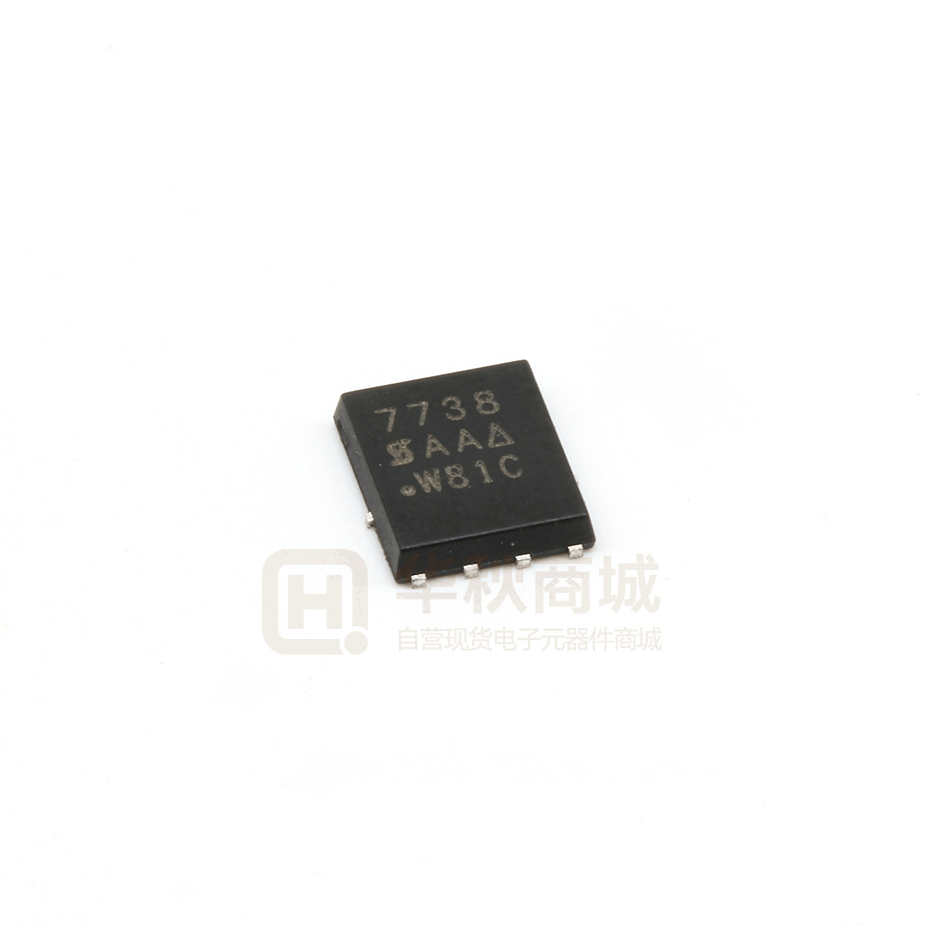

Images are for reference only

SI7738DP-T1-GE3

  • Mfr Part #SI7738DP-T1-GE3
  • ManufacturerVishay
  • HQ Part #DS0083649
  • PackagePPAK8_4.9X5.89MM
  • Lead Time Ship immediately
  • Description150V 30A 38mΩ@10V,7.7A 96W 4V@250uA N Channel PowerPAK-SO-8 MOSFETs ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureSingle
Continuous Drain Current30A
Grid Charge (Qg)53nC
Threshold Voltage4V@250µA
Drain Current30A
Drain Source Voltage (Vdss)150V
Operating Temperature-55~+150℃
Installation Type-
Transistor Type-
Package / CasePPAK8_4.9X5.89MM
Power Dissipation5.4W
Total Gate Charge35nC
Reverse Transfer Capacitance45pF
Breakdown voltage of grid and source±20V
Breakdown Voltage150V
PolarizationN-Channel
Partlife CycleActive
Storage Temperature-55~+150℃
Height1.12mm
L x W/Size4.90 x 5.89mm
Country of OriginAmerica
Original ManufacturerVishay Intertechnology, Inc.
BrandVishay
Input Capacitance Ciss2.1nF
Technical RouteMOSFET (Metal Oxide)
Rdson (Maximum) For Different Ids And Vgs-
Moisture Sensitivity Level (MSL)-
Lead Free Or Not-
SeriesTrenchFET®
Part StatusActive
