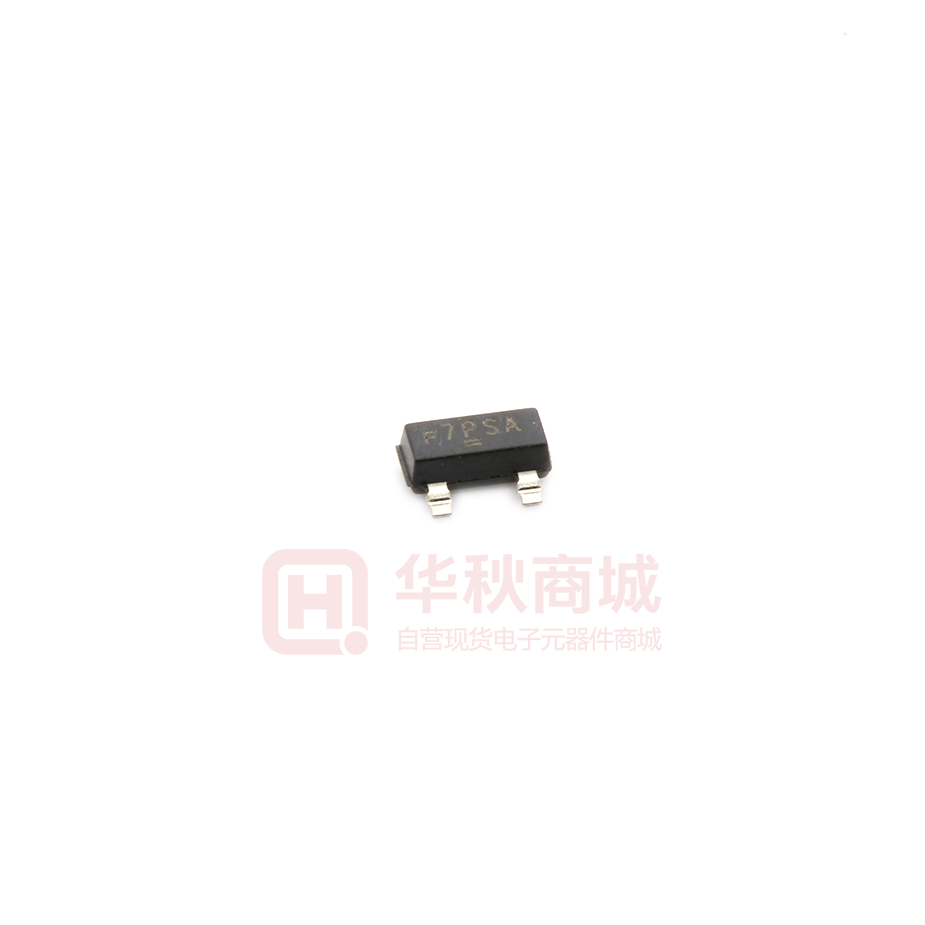

SI2347DS-T1-GE3

  • Mfr Part #SI2347DS-T1-GE3
  • ManufacturerVishay
  • HQ Part #DS0075280
  • PackageSOT-23
  • Lead Time Ship immediately
  • DescriptionMOSFETs 30V 3.9A 68mΩ P Channel SOT23

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureSingle
Continuous Drain Current3.9A
Threshold Voltage2.5V@250µA
Drain Current5A
Drain Source Voltage (Vdss)30V
Operating Temperature-55℃~+150℃
Installation TypeSMT
Transistor TypeP-Channel
Package / CaseSOT-23
Conduction Resistance (RDS (on) @ Vgs, Id)42mΩ@10V,3.8A
Power Dissipation1.2W
Power (Watts)1.7W
Total Gate Charge22nC
Reverse Transfer Capacitance73pF
Breakdown voltage of grid and source±20V
Breakdown Voltage30V
PolarizationP-Channel
Partlife CycleActive
Storage Temperature-55℃~+150℃
Lead Quantity3Pin
Height1.12mm
L x W/Size2.92 x 1.30mm
Country of OriginAmerica
Original ManufacturerVishay Intertechnology, Inc.
Type1 P channel
Input Capacitance Ciss705pF@15V
Moisture Sensitivity Level (MSL)1 (Unlimited)
Lead Free Or NotYes
SeriesTrenchFET®
Part StatusActive
