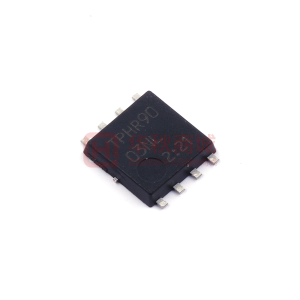

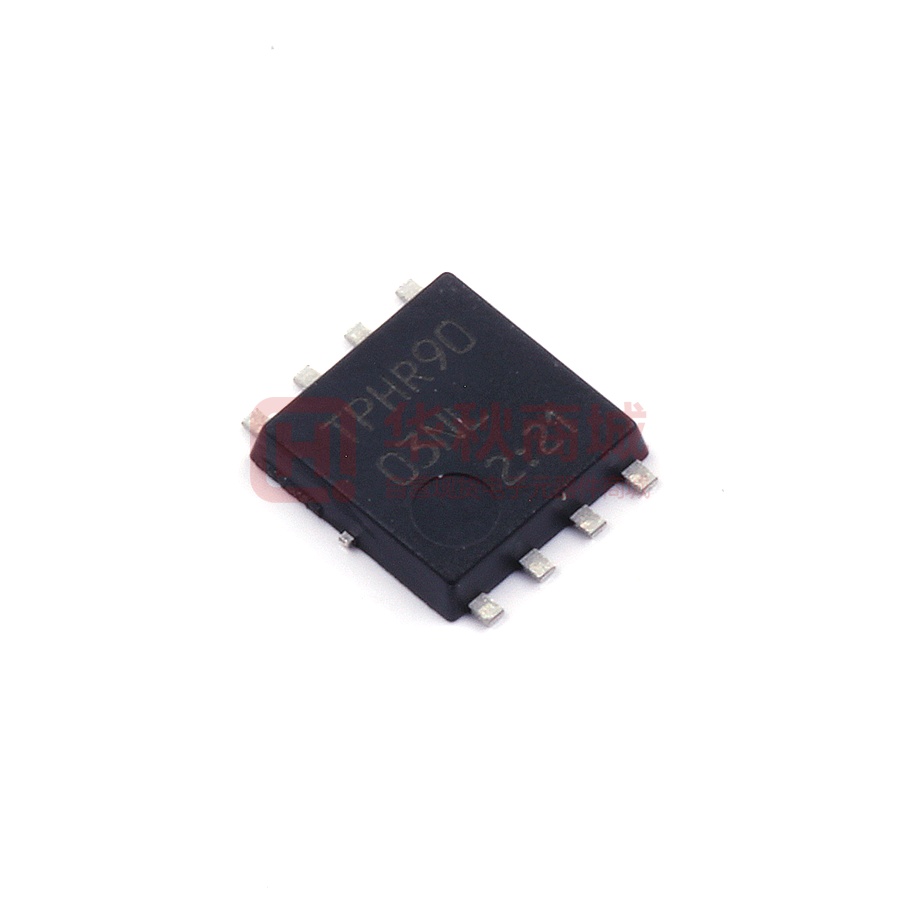

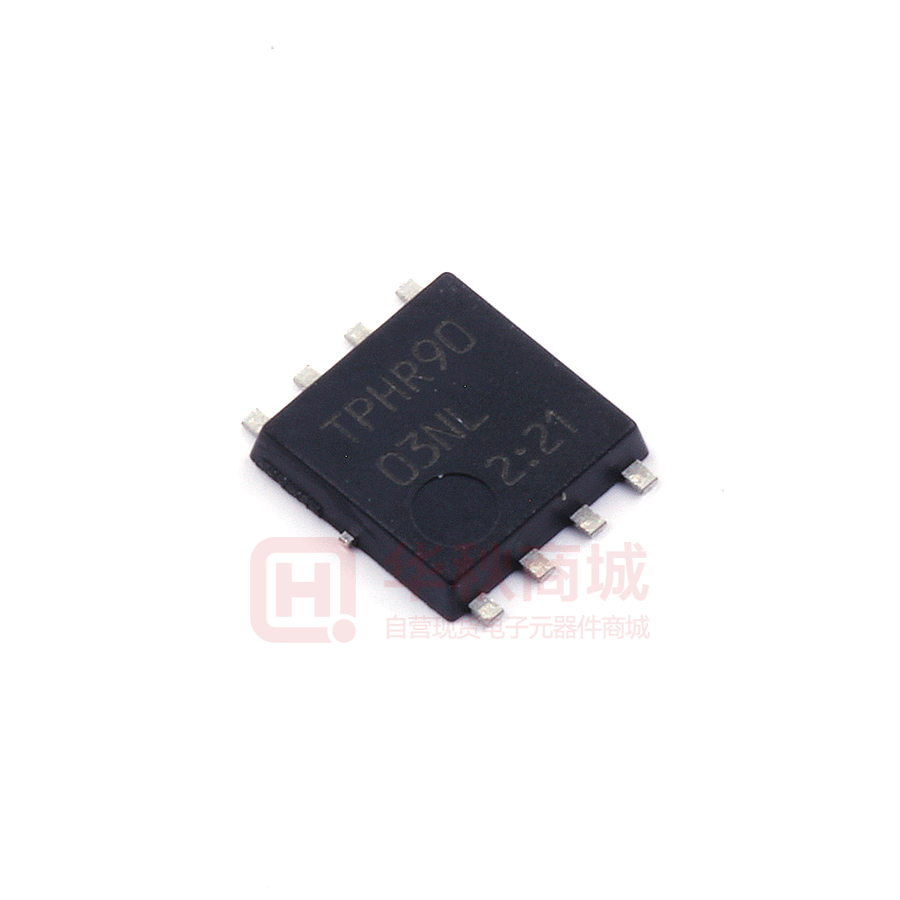

Images are for reference only

TPHR9003NL,L1Q

  • Mfr Part #TPHR9003NL,L1Q
  • ManufacturerToshiba
  • HQ Part #DS0076095
  • PackagePowerVDFN8
  • Lead Time Ship immediately
  • Description30V 60A 1.6W 0.9mΩ@10V,30A 2.3V@1mA N Channel DSOP-8-EP-5.0mm MOSFETs ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureSingle
Continuous Drain Current220A
Threshold Voltage2.3V@1mA
Drain Source Voltage (Vdss)30V
Operating Temperature+150℃
Installation Type-
Transistor Type-
Power Dissipation78W
Total Gate Charge74nC
Reverse Transfer Capacitance130pF
Breakdown voltage of grid and source±20V
Breakdown Voltage30V
PolarizationN-Channel
Storage Temperature-55~+150℃
Lead Quantity8Pin
Height0.95mm
L x W/Size5.00 x 5.00mm
Printing CodeTRHR9003NL
Country of OriginJapan
Original ManufacturerToshiba Corporation
BrandToshiba
TechnologyMOSFET (Metal Oxide)
Rdson (Maximum) For Different Ids And Vgs-
Moisture Sensitivity Level (MSL)-
Lead Free Or Not-
SeriesU-MOSVIII-H
Part StatusActive
