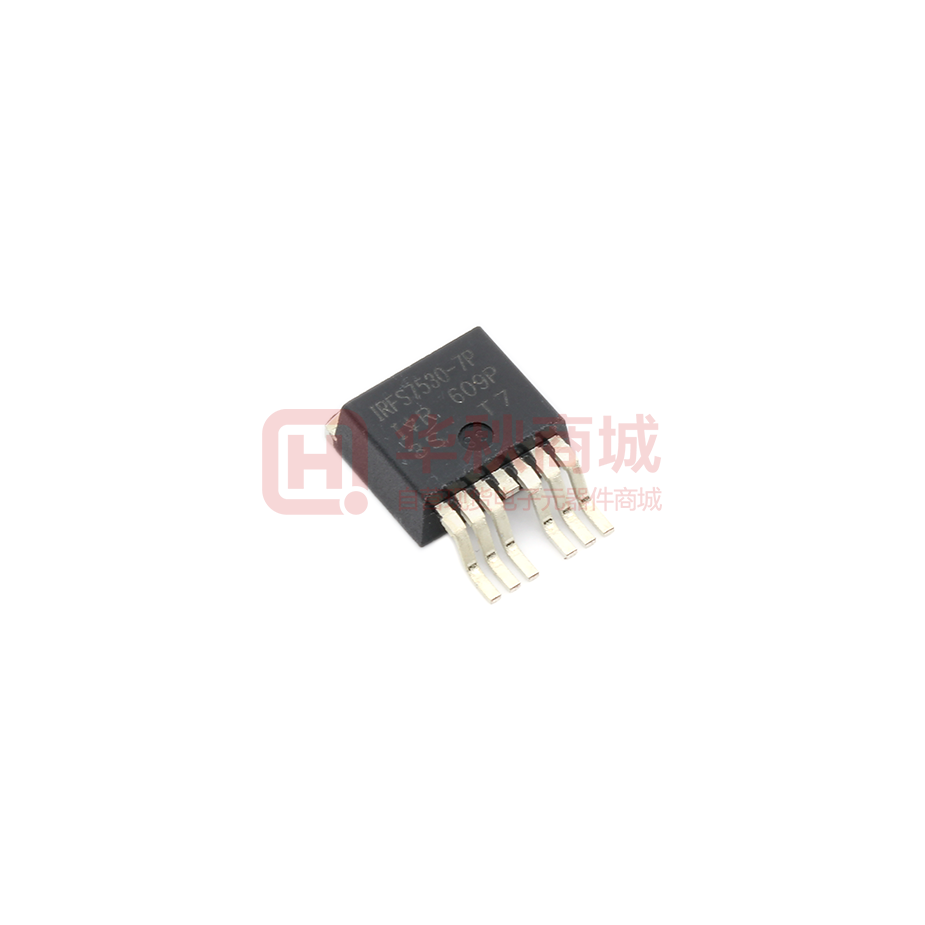

Images are for reference only

IRFS7530TRL7PP

  • Mfr Part #IRFS7530TRL7PP
  • ManufacturerInfineon
  • HQ Part #DS0081235
  • PackageD²PAK-7
  • Lead Time Ship immediately
  • DescriptionMOSFETs 60V 375W SMT D2PAK-7 338A N-Channel

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureSingle
Threshold Voltage3.7V@250µA
Drain Current240A
Drain Source Voltage (Vdss)60V
Operating Temperature-55~+150℃
Installation Type-
Transistor Type-
Power Dissipation375W
Total Gate Charge236nC
Reverse Transfer Capacitance760pF
Breakdown voltage of grid and source±20V
Breakdown Voltage60V
PolarizationN-Channel
Partlife CycleActive
Storage Temperature-55~+150℃
Lead Quantity7Pin
Height4.83mm
CertificationRoHS
Country of OriginGermany
Original ManufacturerInfineon Technologies AG
BrandInfineon
Technical RouteMOSFET (Metal Oxide)
Rdson (Maximum) For Different Ids And Vgs-
Moisture Sensitivity Level (MSL)-
Lead Free Or NotYes
SeriesHEXFET®,StrongIRFET™
Part StatusActive
