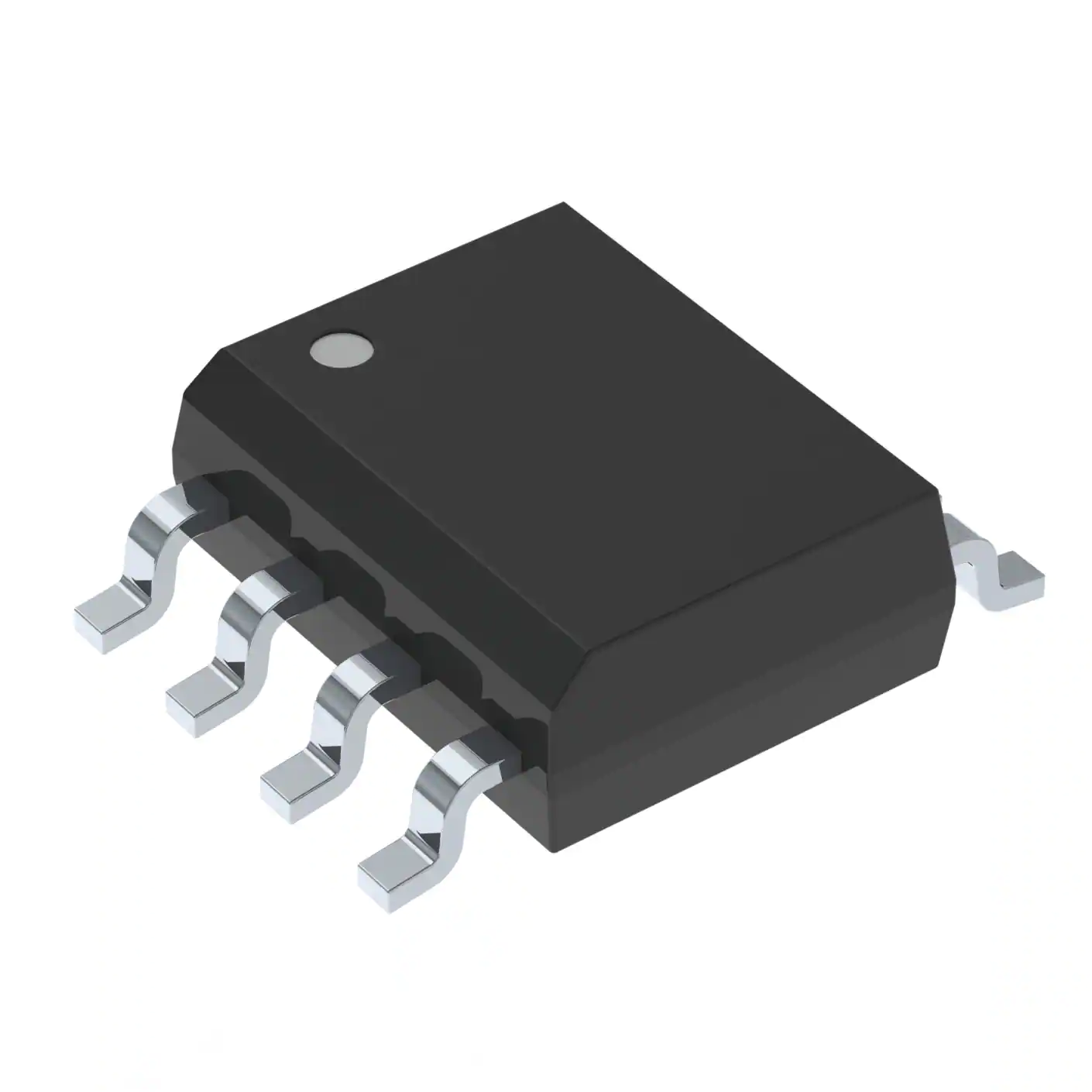

Images are for reference only


  • Mfr Part #IRF9952TRPBF
  • ManufacturerInfineon
  • HQ Part #DS0102701
  • PackageSOIC8_150MIL
  • Lead Time Ship immediately
  • DescriptionSOIC-8 MOSFETs ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureDual
Continuous Drain Current Id@25 ℃3.5,2.3A
Threshold Voltage Vgs (Th)1,-1V
FET Function-
Drain Current Idss3.5A
On Resistance Rds On (Max)100mΩ
Drain Source Voltage (Vdss)30V
Operating Temperature-55~+150℃
Installation Type-
Power (Max)2W
Supplier Device Packaging8-SO
Package / CaseSOIC8_150MIL
Drain-source on-resistance RDS(on)400,150 mΩ
Power Dissipation2W
Total Gate Charge6.9.6.1nC
Reverse Transfer Capacitance54,61pF
Breakdown voltage of grid and source±20V
Drain-Source Breakdown Voltage30V
Partlife CycleActive
Storage Temperature-55~+150℃
Lead Quantity8Pin
L x W/Size5.00 x 4.00mm
Country of OriginGermany
Original ManufacturerInfineon Technologies AG
Rdson (Maximum) For Different Ids And Vgs-
Drain Source Voltage (Vdss)30V
Moisture Sensitivity Level (Msl)-
Lead Free Or NotYes
Manufacturer'S Standard Lead Time-
Part StatusActive
