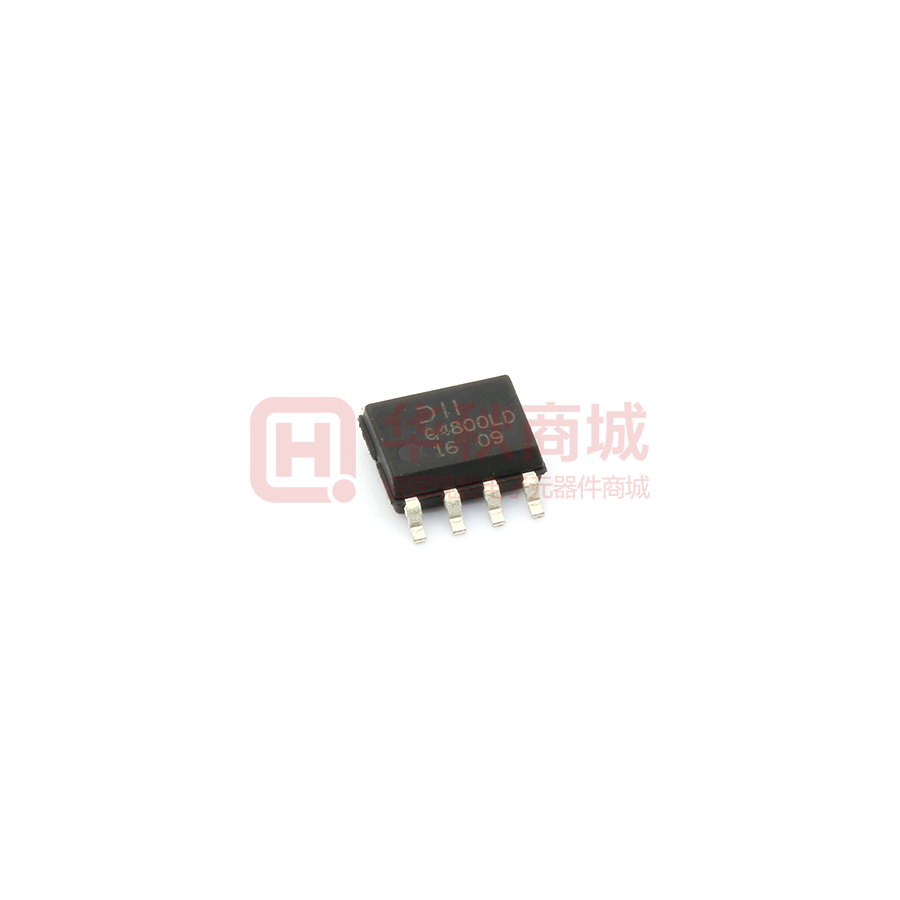

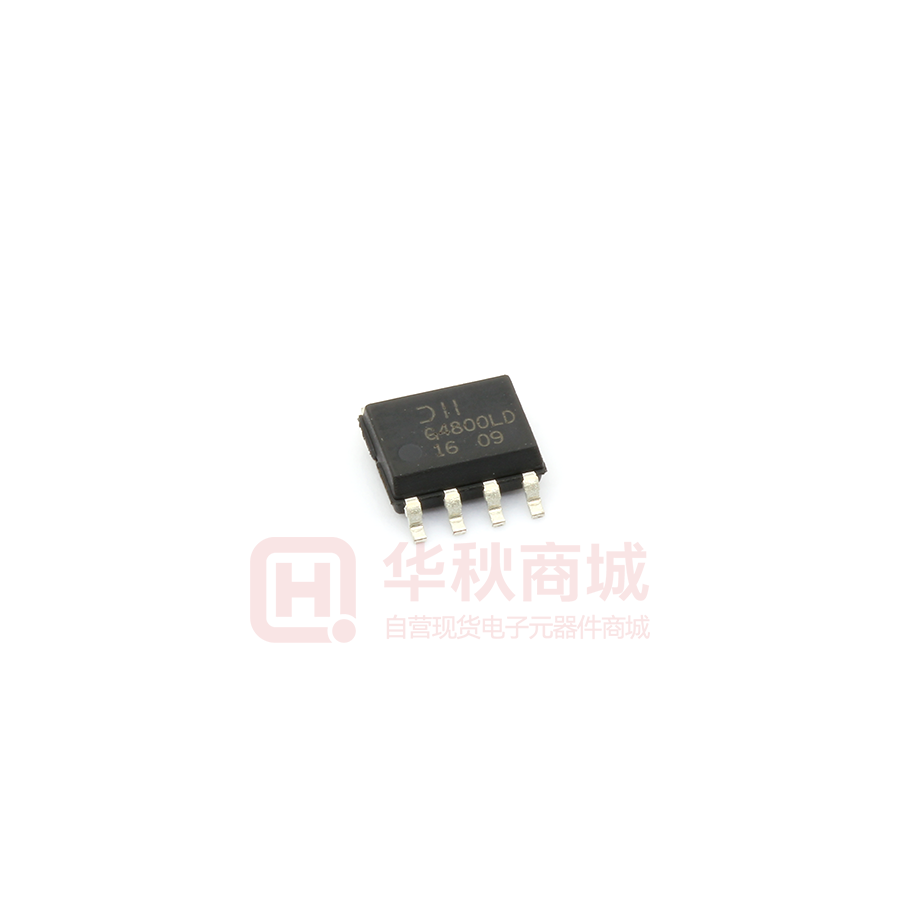

Images are for reference only


  • Mfr Part #DMG4800LSD-13
  • ManufacturerDIODES
  • HQ Part #DS0102294
  • PackageSOIC8_150MIL
  • Lead Time Ship immediately
  • Description30V 7.5A 1.17W 16mΩ@10V,9A 1.6V@250uA 2 N-Channel SOIC-8 MOSFETs ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureSingle
Continuous Drain Current Id@25 ℃7.5A
Grid Charge (Qg) (Max)8.56nC
Threshold Voltage Vgs (Th)1.6V
FET Function-
Drain Current Idss7.5A
On Resistance Rds On (Max)16mΩ
Drain Source Voltage (Vdss)30V
Operating Temperature-55~+150℃(TJ)
Installation Type-
Transistor Type2 N-Channel (Dual)
Supplier Device Packaging8-SOP
Package / CaseSOIC8_150MIL
Drain-source on-resistance RDS(on)16mΩ
Power Dissipation1.17W
Power (Watts)1.17W
Total Gate Charge8.56nC
Breakdown voltage of grid and source±25V
Partlife CycleActive
L x W/Size4.90 x 3.90mm
Country of OriginAmerica
Original ManufacturerDiodes Incorporated
Input Capacitance Ciss798pF
Rdson (Maximum) For Different Ids And Vgs-
Drain Source Voltage (Vdss)30V
Moisture Sensitivity Level (Msl)-
Lead Free Or NotYes
Manufacturer'S Standard Lead Time-
Part StatusActive
