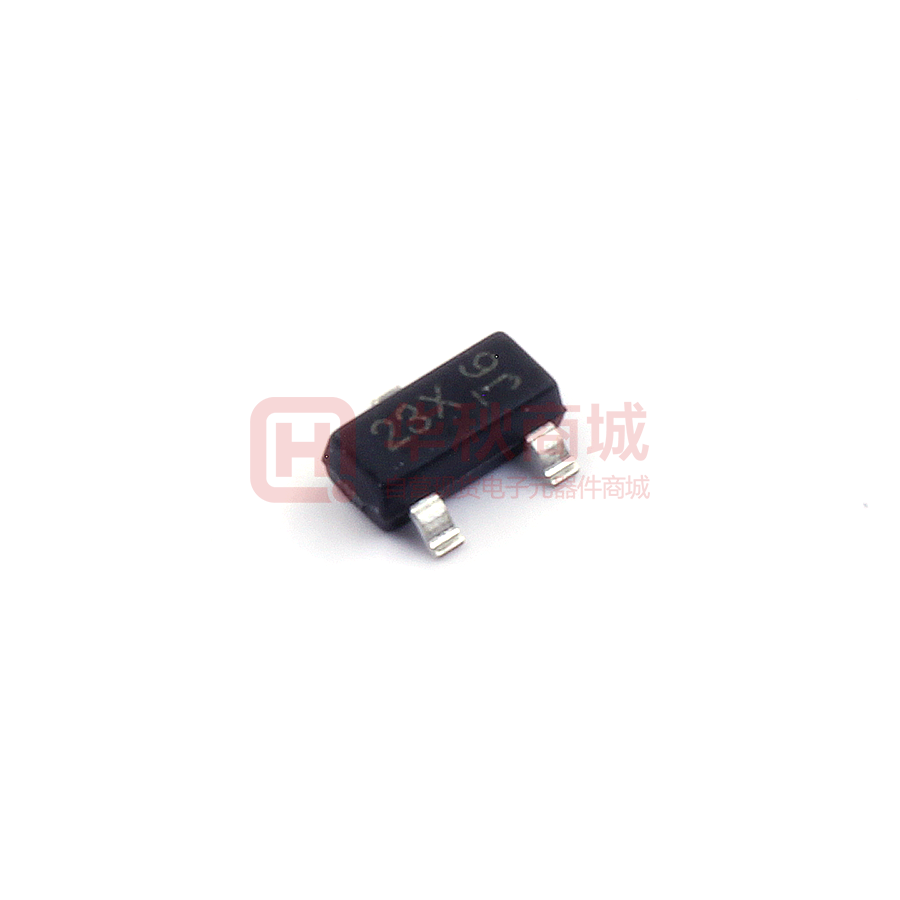

DMG2305UX-13
- Mfr Part #DMG2305UX-13
- ManufacturerDIODES
- HQ Part #DS0074224
- PackageSOT-23
- Lead Time Ship immediately
Description20V 4.2A 52mΩ@4.5V,4.2A 1.4W 900mV@250uA P Channel SOT-23 MOSFETs ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Continuous Drain Current | 4.2A | |
| Threshold Voltage | 900mV | |
| Drain Current | 4.2A | |
| Drain Source Voltage (Vdss) | 20V | |
| Operating Temperature | -55~+150℃(TJ) | |
| Installation Type | - | |
| Transistor Type | - | |
| Power Dissipation | 1.4W | |
| Power (Watts) | 1.4W | |
| Total Gate Charge | 10.2nC | |
| Breakdown voltage of grid and source | ±8V | |
| Breakdown Voltage | 20V | |
| Polarization | P-channel | |
| Partlife Cycle | Active | |
| Lead Quantity | 3Pin | |
| Height | 1.00mm | |
| L x W/Size | 2.90 x 1.30mm | |
| Country of Origin | America | |
| Original Manufacturer | Diodes Incorporated | |
| Brand | DIODES | |
| Technology | MOSFET (Metal Oxide) | |
| Rdson (Maximum) For Different Ids And Vgs | - | |
| Moisture Sensitivity Level (MSL) | - | |
| Lead Free Or Not | Yes | |
| Part Status | Active |
