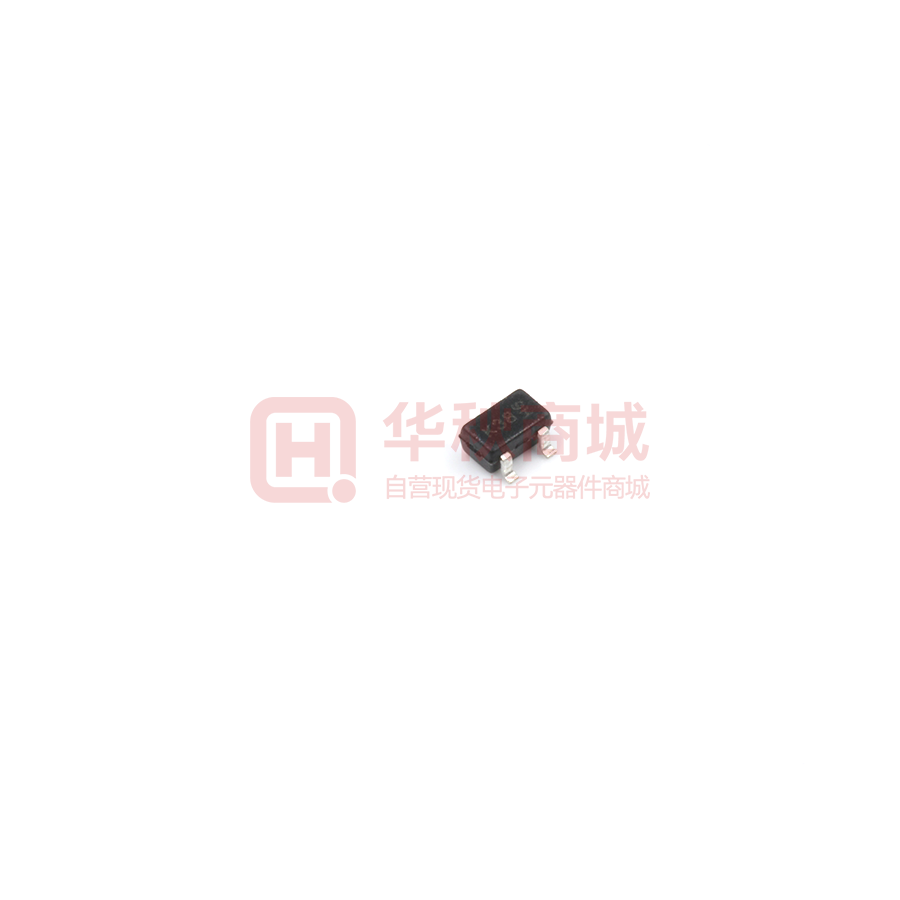

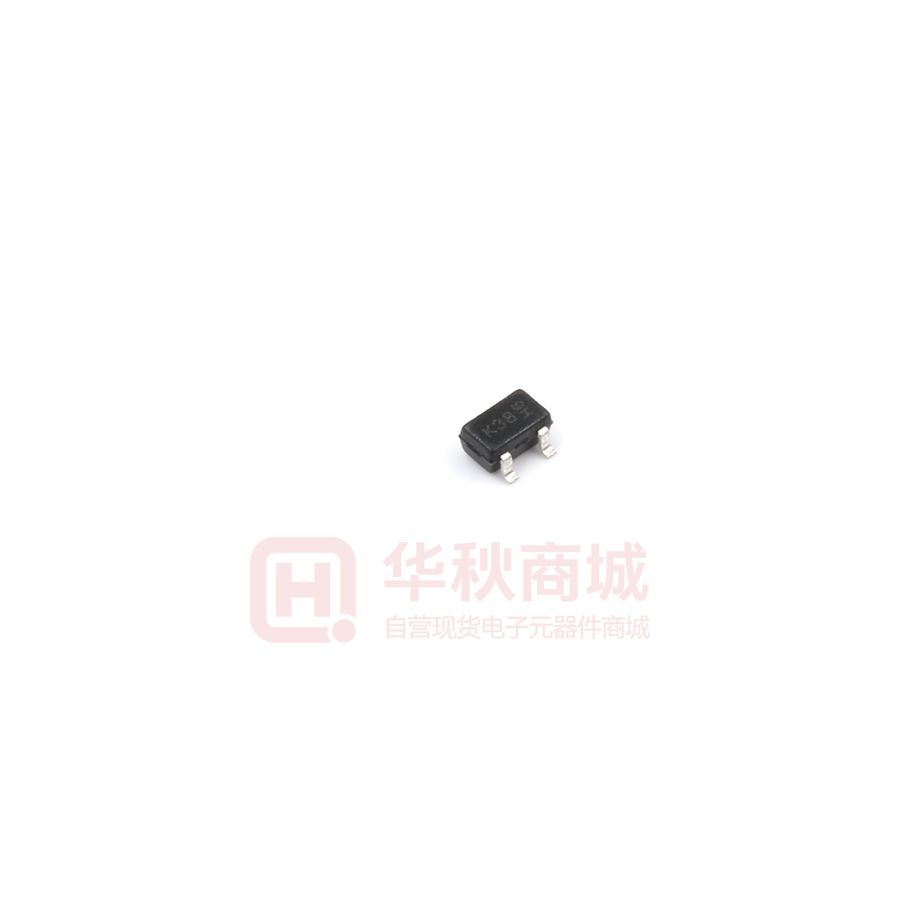

Images are for reference only


  • Mfr Part #BSS138W-7-F
  • ManufacturerDIODES
  • HQ Part #DS0074254
  • PackageSOT323
  • Lead Time Ship immediately
  • Description50V 200mA 200mW 3.5Ω@10V,220mA 1.5V@250uA N Channel SC-70-3 MOSFETs ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Continuous Drain Current Id@25 ℃200mA
Grid Charge (Qg) (Max)-
Threshold Voltage Vgs (Th)1.5V
Drain Current Idss200mA
On Resistance Rds On (Max)3.5Ω
Drain Source Voltage (Vdss)50V
Operating Temperature-55~+150℃(TJ)
Installation Type-
Power (Max)200mW
Supplier Device PackagingSOT-323
Package / CaseSOT323
Lead Spacing1.3mm
Drain-source on-resistance RDS(on)3.5Ω
Power Dissipation200mW
Power (Watts)200mW
Total Gate ChargeOriginalnC
Breakdown voltage of grid and source±20V
Partlife CycleActive
Lead Quantity3Pin
L x W/Size2.00 x 1.25mm
Country of OriginAmerica
Original ManufacturerDiodes Incorporated
Drive Voltage (Maximum Rdson, Minimum Rdson)10V
Rdson (Maximum) For Different Ids And Vgs-
Drain Source Voltage (Vdss)50V
Moisture Sensitivity Level (Msl)-
Lead Free Or NotNo
Manufacturer'S Standard Lead Time-
Part StatusActive
