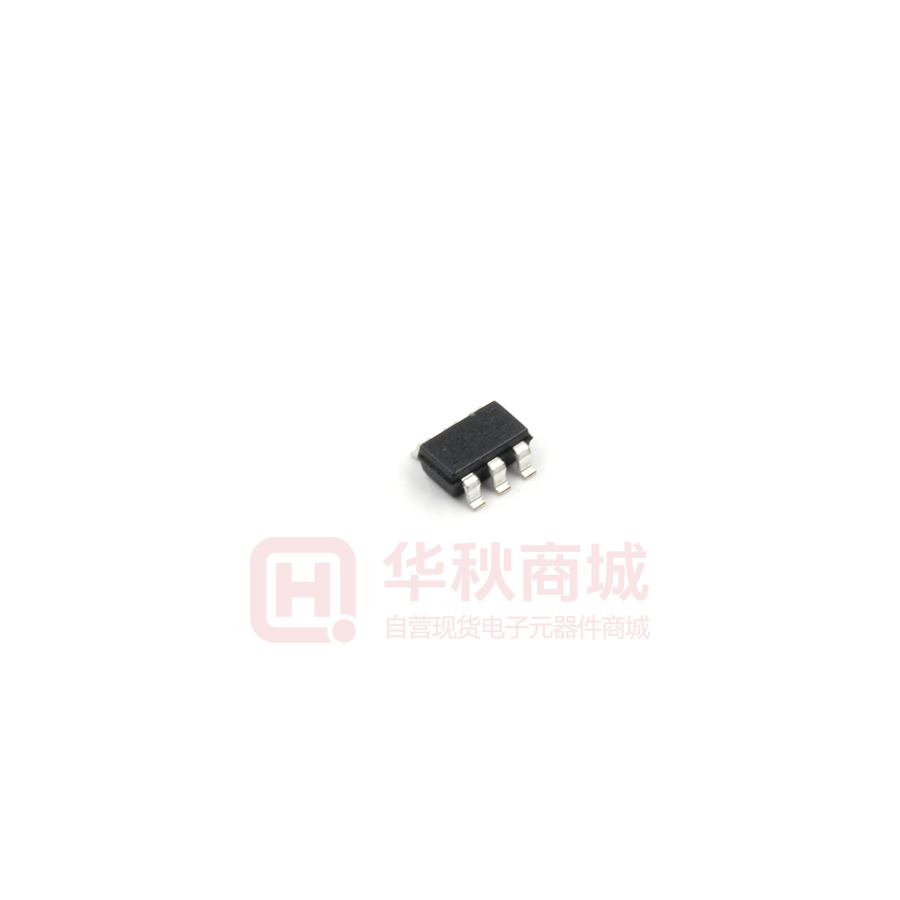

Images are for reference only
MOSFETs AOS AO6409
- Mfr Part #AO6409
- ManufacturerAOS
- HQ Part #DS0077454
- PackageTSOP6
- Lead Time Ship immediately
DescriptionN-Channel MOSFET TSOP6 VDS=20V VGS=±8V ID=5.5A
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Single | |
| Continuous Drain Current Id@25 ℃ | 5.5A | |
| Threshold Voltage Vgs (Th) | 1V@250µA | |
| Power Dissipation (Maximum) | 2.1W（Ta） | |
| Drain Current Idss | 5.5A | |
| On Resistance Rds On (Max) | 45mΩ | |
| Drain Source Voltage (Vdss) | 20V | |
| Operating Temperature | -55~+150℃(TJ) | |
| Installation Type | - | |
| Packing | Tape/reel | |
| Transistor Type | - | |
| Power (Max) | 2.1W | |
| Supplier Device Packaging | 6-TSOP | |
| Package / Case | TSOP6 | |
| Drain-source on-resistance RDS(on) | 52mΩ | |
| Power Dissipation | 2.1W | |
| Total Gate Charge | 9.3nC | |
| Reverse Transfer Capacitance | 80pF | |
| Breakdown voltage of grid and source | ±8V | |
| Drain-Source Breakdown Voltage | 20V | |
| Polarization | P-channel | |
| Partlife Cycle | Active | |
| Storage Temperature | -55~+150℃ | |
| Lead Quantity | 6Pins | |
| Height | 1.25mm | |
| L x W/Size | 2.90 x 1.60mm | |
| MPQ | 3000pcs | |
| Country of Origin | America | |
| Original Manufacturer | Alpha & Omega Semiconductor, Ltd | |
| Brand | AOS | |
| Technology | - | |
| Drive Voltage (Maximum Rdson, Minimum Rdson) | 1.8V，4.5V | |
| Rdson (Maximum) For Different Ids And Vgs | - | |
| Drain Source Voltage (Vdss) | 20V | |
| Moisture Sensitivity Level (Msl) | - | |
| Lead Free Or Not | - | |
| Manufacturer'S Standard Lead Time | - | |
| Part Status | Active |
