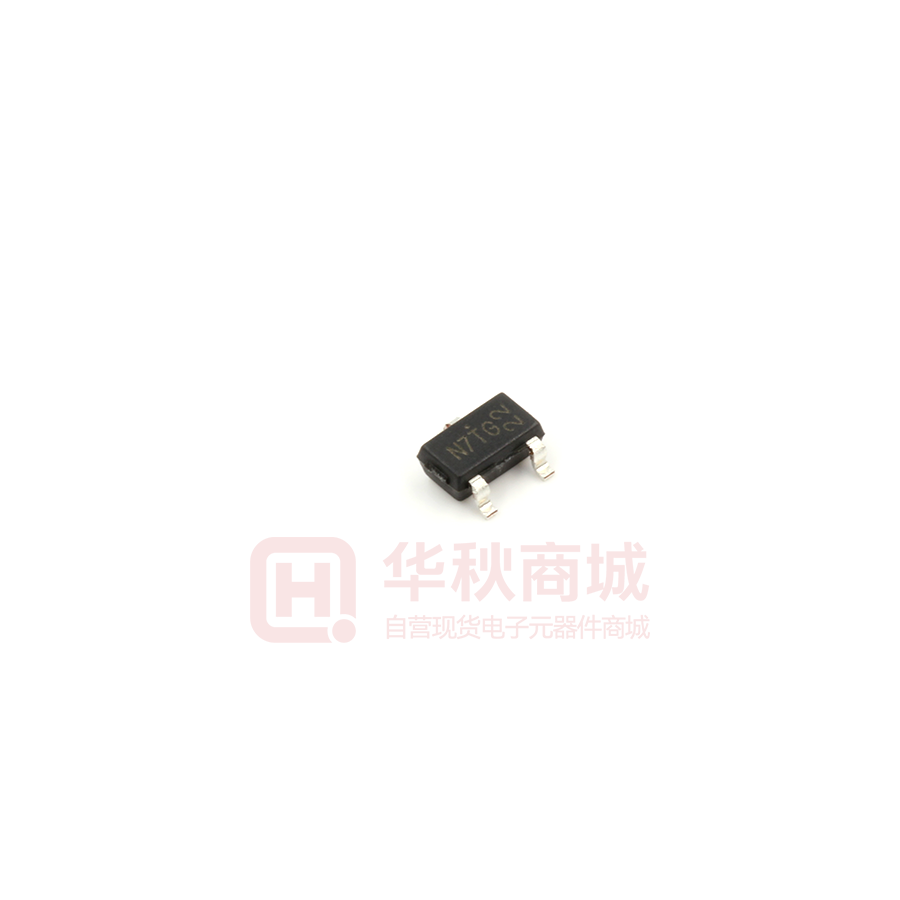

Images are for reference only
AO3481C
- Mfr Part #AO3481C
- ManufacturerAOS
- HQ Part #DS0143193
- PackageSOT-23
- Lead Time Ship immediately
DescriptionP-Channel MOSFET VDS=30V VGS=±20V ID=4.3A SOT23-3
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Single | |
| Continuous Drain Current | 4.3A | |
| Grid Charge (Qg) | 23nC | |
| Threshold Voltage | 1.7V | |
| Vgs(Max) | ±20V | |
| Drain Current (Idss) | -4.3A | |
| Drain Source Voltage (Vdss) | 30V | |
| Operating Temperature | -55℃~+150℃(TJ) | |
| Installation Type | SMT | |
| Packing | Tape/reel | |
| Transistor Type | P-Channel | |
| Package / Case | SOT-23 | |
| Conduction Resistance (RDS (on) | 37mΩ@10V,4.3A | |
| Power Dissipation | 1.3W | |
| Total Gate Charge | 23nC | |
| Reverse Transfer Capacitance | 70pF | |
| Breakdown voltage of grid and source | ±20V | |
| Breakdown Voltage | 30V | |
| Polarization | P-Channel | |
| Partlife Cycle | Active | |
| Storage Temperature | -55℃~+150℃ | |
| Lead Quantity | 3Pin | |
| Height | 1.25mm | |
| L x W/Size | 2.90 x 1.60mm | |
| MPQ | 3000pcs | |
| Country of Origin | America | |
| Original Manufacturer | Alpha and Omega Semiconductor | |
| Brand | AOS | |
| Type | 1 P channel | |
| Input Capacitiance(Ci) | 720pF | |
| Lead Free Or Not | No | |
| Part Status | Active |
