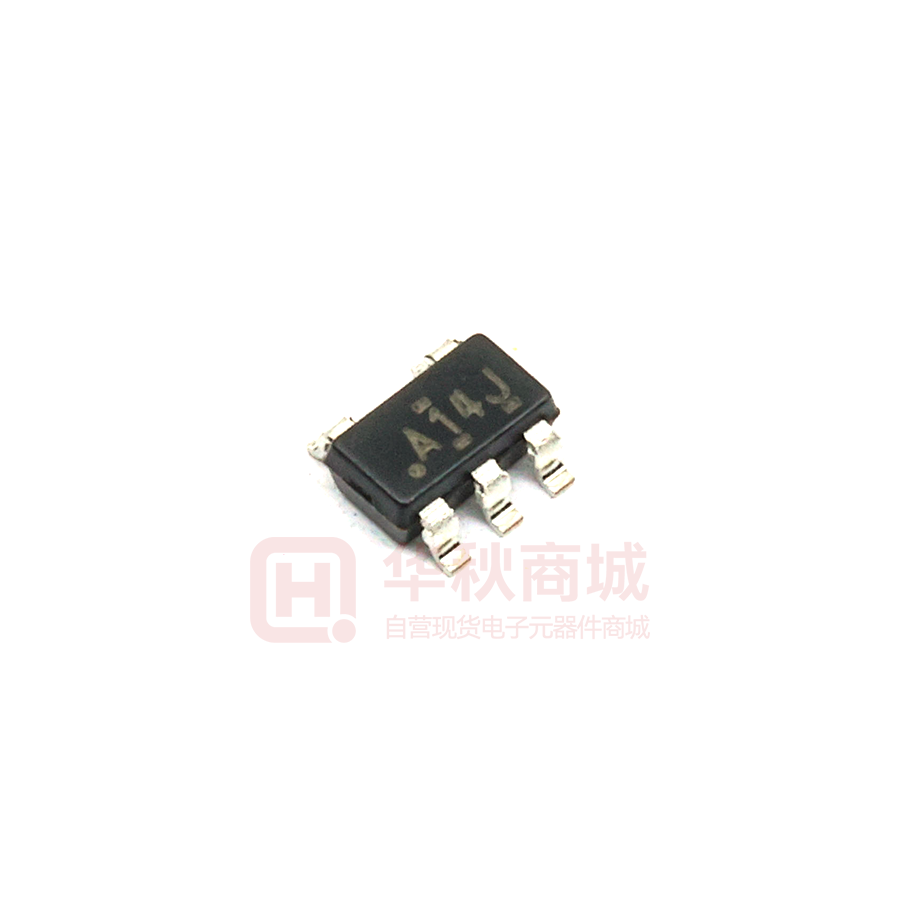

SN74AHC1G14DBVR

  • Mfr Part #SN74AHC1G14DBVR
  • ManufacturerTI
  • HQ Part #IC0304651
  • PackageSOT23-5
  • Lead Time Ship immediately
  • DescriptionSchmitt Trigger 1 10.6ns@5V,50pF 1uA 2V~5.5V 8mA 8mA SOT-23-5 Inverters ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
CharacteristicSchmitt Trigger
High Level Range2.2V~3.85V
Number of Inputs1
Low Level Range0.9V~1.65V
Logic TypeInverter
Logic TypeInverter
Package / CaseSOT23-5
Installation TypeSMT
Supply Voltage2V~5.5V
Pull Current (IOH)8mA
Injecting Current (IOL)8mA
Number of Circuits1
Output Current8mA
Lead Quantity5Pin
Height1.45mm
L x W/Size2.90 x 1.60mm
Power Supply Current-
Input Type-
Operating Temperature-40℃~+125℃
Series74AHC
Moisture Sensitivity Level (MSL)1 (Unlimited)
