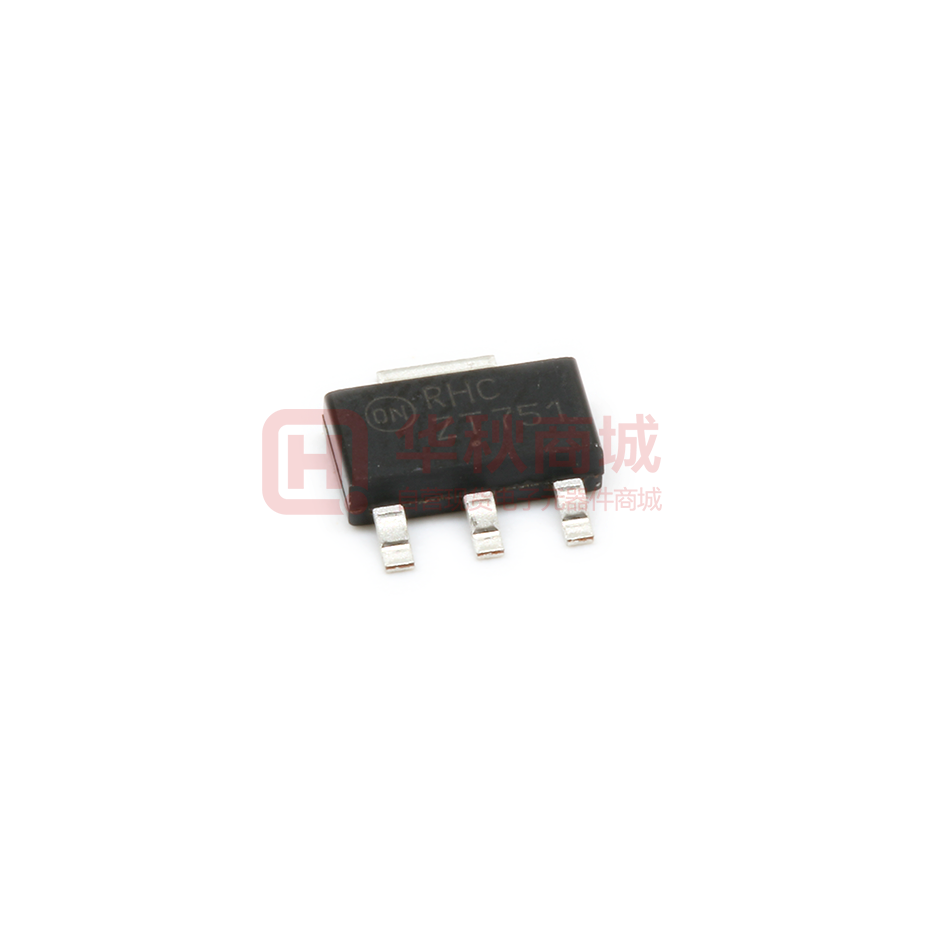

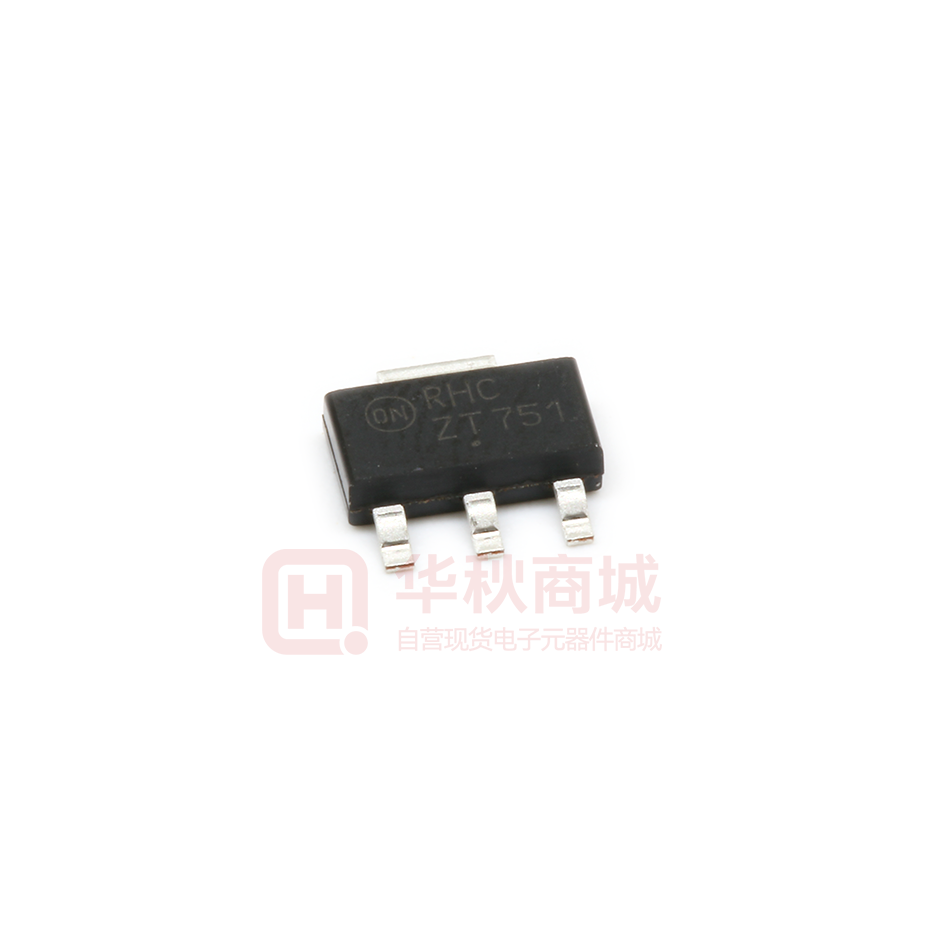

Images are for reference only

General Purpose Transistors ON PZT751T1G

  • Mfr Part #PZT751T1G
  • ManufacturerON
  • HQ Part #DS0114242
  • PackageSOT223
  • Lead Time Ship immediately
  • DescriptionGeneral Purpose Transistors PNP Ic=2A Vceo=60V hfe=40 P=800mW SOT223

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureSingle
Vce Saturation Pressure Drop (Max)500mV
Operating Temperature+150℃
Installation Type-
PackingTape/reel
Collecting Emitter Breakdown Voltage Vce (Max)60V
Transistor TypePNP
Power (Max)800mW
Supplier Device PackagingSOT-223
DC Current Gain (hFE) (Min&Range)40
Transition Frequency75MHz
Collector Current Ic (Max)2000mA
Package / CaseSOT223
Collector Current Ic2A
Power Dissipation800mW
Collector-Emitter Saturation Voltage VCE(sat)500mV
Collector- Emitter Voltage VCEO60V
Emitter-Base Voltage VEBO5V
Collector-Base Voltage VCBO80V
PolarizationPNP
Storage Temperature-65~+150℃
Lead Quantity3Pin
Height1.75mm
L x W/Size6.50 x 3.50mm
MPQ1000pcs
Printing CodeZT751
Country of OriginAmerica
Original ManufacturerON Semiconductor
BrandON
Moisture Sensitivity Level (Msl)-
Lead Free Or NotYes
Manufacturer'S Standard Lead Time-
Current Collector Cutoff (Maximum)100nA(ICBO)
Part StatusActive
Terms of Service
ShippingDelivery Period For stock parts, orders placed on HQonline from 8:00-16:00 will be dispatched on the same day
Once shipped, the transit time depends on the logistics provider you choose:
DHL Express, 3-5 days
FedEx International, 3-5 days
China Post Airmail, 15-45 days
Shipping RateShipping rate for your order can be found in the shopping cart.
Shipping OptionWe provide DHL, FedEx, and China Post Airmail shipping.
Shipping TrackingWe will notify you by email with a tracking number once the order is shipped. You can also find the tracking number in the order history.
Returning/WarrantyReturning HQonline only accepts return requests due to quality issues. Return requests should be submitted within 30 days of delivery of the goods, please contact customer service for a return authorization.
Parts should be unused and in original packaging.
The customer has to take charge of the shipping.
Warranty All HQonline purchases come with a 30-day money-back return policy, plus a 90-day HQonline warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by the customer to follow instructions, product modification, negligent or improper operation.
OrderingHow to Buy HQonline accepts online orders.
Add to cart > Check out > Submit order > Complete payment >Delivery
Payment PayPal, Payoneer, Credit Card includes Visa, Master, American Express, JCB, Discover.
Western Union, Bank Transfer, Payoneer, AliExpress.
979 In Stock
Qty
Minimum1 Mutiple1
Unit Price$ 0.0557
Ext Price$ 0
Add to Cart
Buy Now
Pricing (USD)
QtyUnit PriceExt Price
1+$0.26876 $0.26876
30+$0.25916 $7.77480
100+$0.24956 $24.95600
500+$0.23037 $115.18500
1000+$0.22077 $220.77000
2000+$0.21501 $430.02000
