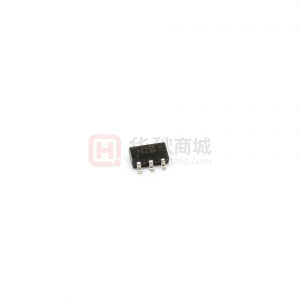

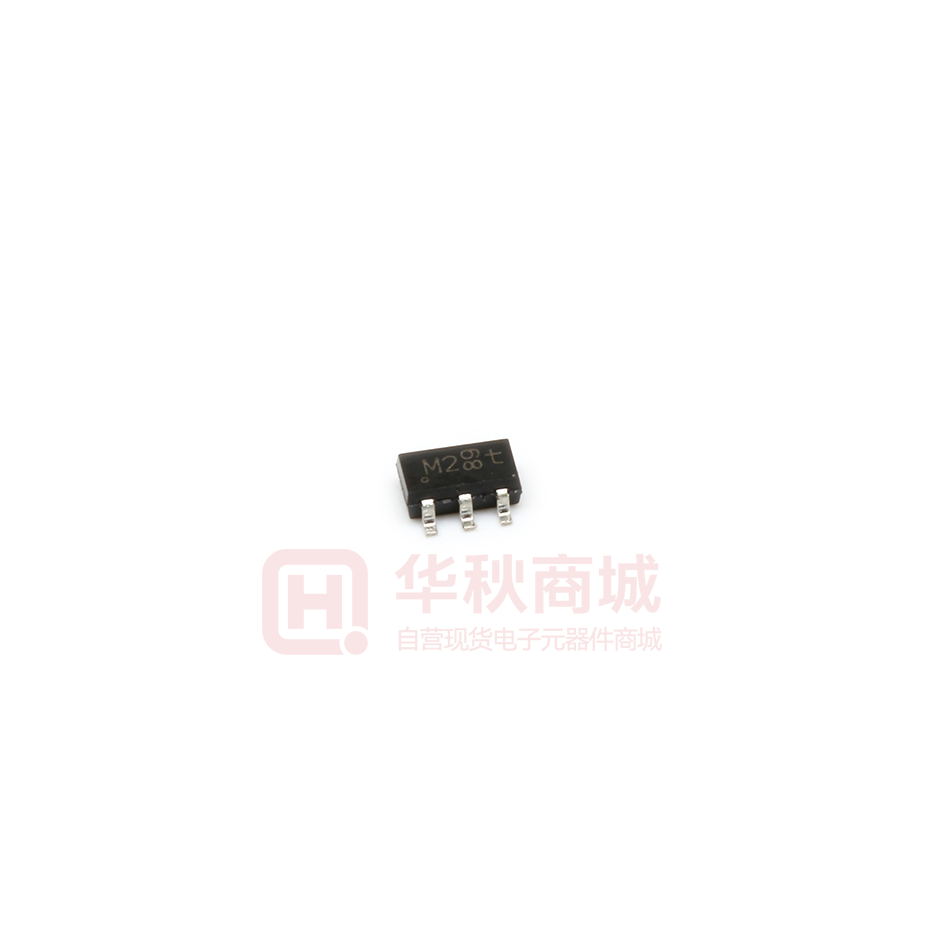

Images are for reference only

General Purpose Transistors Nexperia PBSS4140DPN,115

  • Mfr Part #PBSS4140DPN,115
  • ManufacturerNexperia
  • HQ Part #DS0126369
  • PackageSC74
  • Lead Time Ship immediately
  • DescriptionGeneral Purpose Transistors NPN,PNP Ic=1A VCEsat=500mV hfe=300~900 P=600mW SC74

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureDual
Vce Saturation Pressure Drop (Max)500mV
Operating Temperature+150℃(TJ)
Installation Type-
Collecting Emitter Breakdown Voltage Vce (Max)40V
Transistor TypeNPN,PNP
Power (Max)600mW
Supplier Device Packaging6-TSOP
DC Current Gain (hFE) (Min&Range)-
Transition Frequency150MHz
Collector Current Ic (Max)1000mA
Package / CaseSC74
Collector Current Ic1A
Power Dissipation600mW
Collector-Emitter Saturation Voltage VCE(sat)500mV
Collector- Emitter Voltage VCEO40V
Emitter-Base Voltage VEBO5V
Collector-Base Voltage VCBO40V
Frequency - transition150MHz
Storage Temperature-65~+150℃
Lead Quantity6Pin
L x W/Size3.10 x 1.70mm
Printing CodeM2
Country of OriginChina
Original ManufacturerNexperia Semiconductor Co., Ltd.
Moisture Sensitivity Level (Msl)-
Lead Free Or NotYes
Manufacturer'S Standard Lead Time-
Current Collector Cutoff (Maximum)100nA
Part StatusActive
