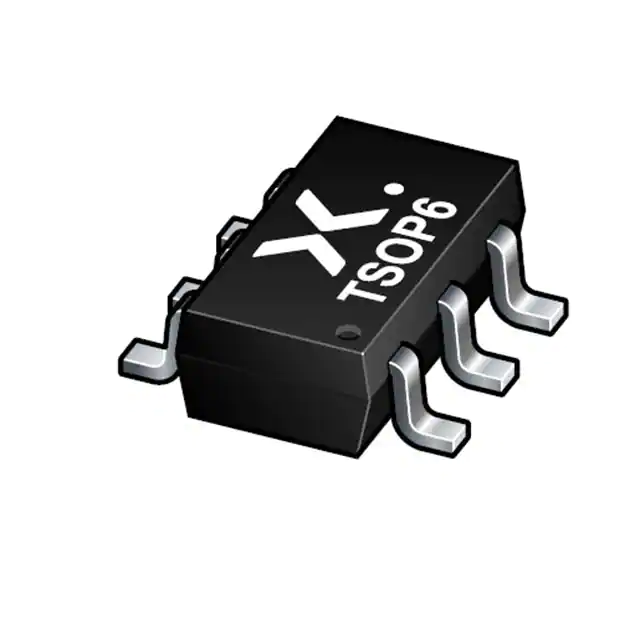

Images are for reference only

BC817DS,115

  • Mfr Part #BC817DS,115
  • ManufacturerNexperia
  • HQ Part #DS0126326
  • PackageTSOP6_3.1X1.7MM
  • Lead Time Ship immediately
  • DescriptionGeneral Purpose Transistors 45V 500mA NPN+NPN TSOP6_3.1X1.7MM 160~400

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureDual
Vce Saturation Pressure Drop700mV
Operating Temperature+150℃
Installation Type-
Collecting Emitter Breakdown Voltage Vce (Max)45V
DC Current Gain (hFE)160~400
Transition Frequency100MHz
Collector Current Ic500mA
Power Dissipation600mW
Collector- Emitter Voltage VCEO45V
Emitter-Base Voltage VEBO5V
Collector Base Voltage (VCBO)50V
Collector Cut-off Current (Icbo)100nA(ICBO)
PolarizationNPN
Partlife CycleActive
Storage Temperature-65~+150℃
Lead Quantity6Pin
Height1.10mm
L x W/Size3.10 x 1.70mm
Printing CodeN3
Country of OriginChina
Original ManufacturerNexperia Semiconductor Co., Ltd.
BrandNexperia
Moisture Sensitivity Level (MSL)-
Lead Free Or Not-
SeriesAutomotive, AEC-Q101
Part StatusActive
