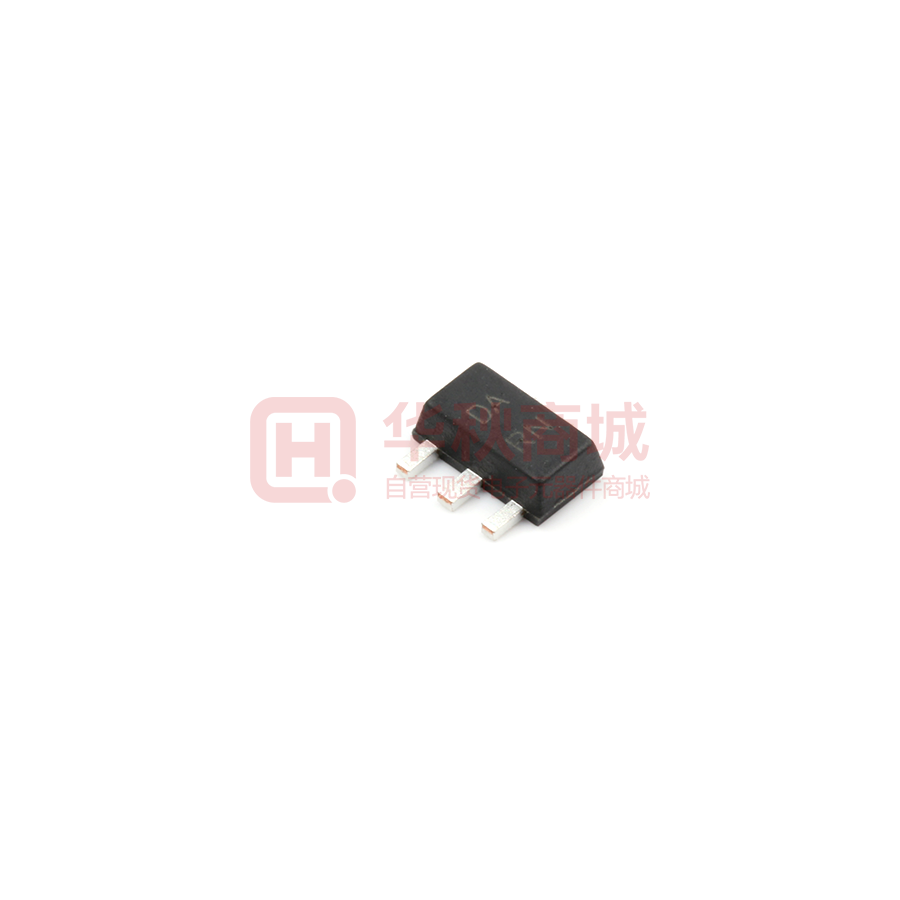

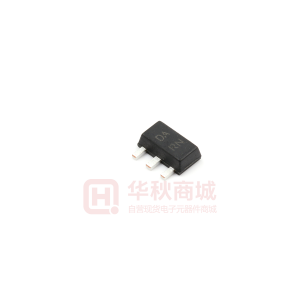

Images are for reference only
2SD1664
- Mfr Part #2SD1664
- ManufacturerHottech
- HQ Part #DS0140120
- PackageSOT89-3
- Lead Time Ship immediately
Description500nA 32V 500mW 1A 150MHz 400mV@500mA,50mA NPN +150℃@(Tj) SOT-89-3 Bipolar Transistors - BJT ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Single | |
| Vce Saturation Pressure Drop | 300mV | |
| Operating Temperature | +150℃ | |
| Installation Type | - | |
| Collecting Emitter Breakdown Voltage Vce (Max) | 32V | |
| Transistor Type | NPN | |
| DC Current Gain (hFE) | 82 | |
| Transition Frequency | 150MHz | |
| Package / Case | SOT89-3 | |
| Collector Current Ic | 1A | |
| Power Dissipation | 500mW | |
| Collector- Emitter Voltage VCEO | 32V | |
| Emitter-Base Voltage VEBO | 5V | |
| Collector Base Voltage (VCBO) | 40V | |
| Polarization | NPN | |
| Storage Temperature | -55~+150℃ | |
| Lead Quantity | 3Pin | |
| Height | 1.60mm | |
| L x W/Size | 4.60 x 2.60mm | |
| Country of Origin | China | |
| Original Manufacturer | Guangdong Hottech Co. Ltd. | |
| Brand | Hottech | |
| Part Status | - |
