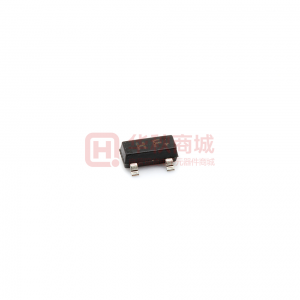

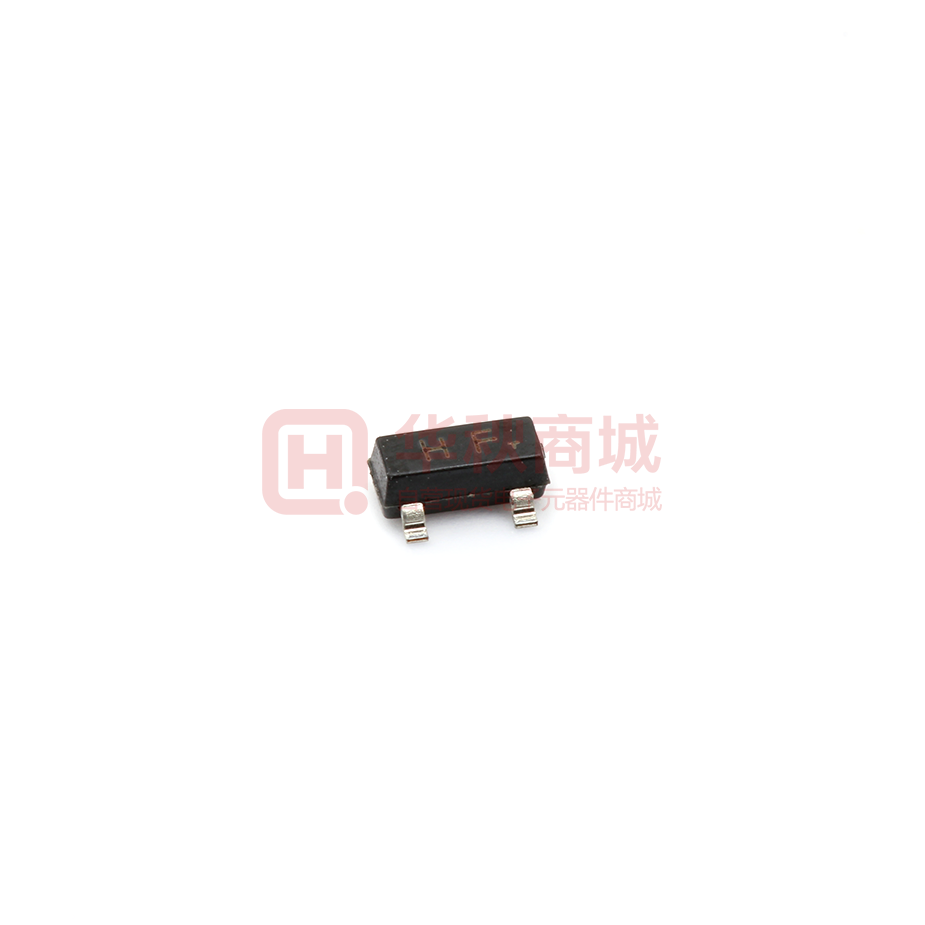

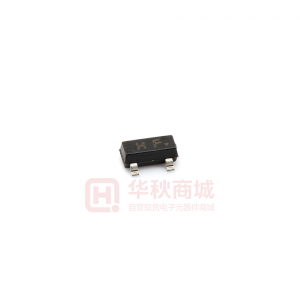

Images are for reference only

2SC1815

  • Mfr Part #2SC1815
  • ManufacturerHottech
  • HQ Part #DS0140115
  • PackageSOT-23
  • Lead Time Ship immediately
  • DescriptionTriode NPN Ic=150mA Vceo=50V hfe=130~400 P=200mW SOT23

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
To ConfigureSingle
Vce Saturation Pressure Drop250mV
Operating Temperature+150℃(TJ)
Installation Type-
Collecting Emitter Breakdown Voltage Vce (Max)50V
Transistor TypeNPN
DC Current Gain (hFE) (Min&Range)130~400
Transition Frequency80MHz
Collector Current Ic150mA
Power Dissipation200mW
Collector- Emitter Voltage VCEO50V
Emitter-Base Voltage VEBO5V
Collector Base Voltage (VCBO)60V
PolarizationNPN
Storage Temperature-55~+150℃
Height1.15mm
L x W/Size2.90 x 1.30mm
Printing CodeHF
Country of OriginChina
Original ManufacturerGuangdong Hottech Co. Ltd.
BrandHottech
Part StatusActive
Terms of Service
ShippingDelivery Period For stock parts, orders placed on HQonline from 8:00-16:00 will be dispatched on the same day
Once shipped, the transit time depends on the logistics provider you choose:
DHL Express, 3-5 days
FedEx International, 3-5 days
China Post Airmail, 15-45 days
Shipping RateShipping rate for your order can be found in the shopping cart.
Shipping OptionWe provide DHL, FedEx, and China Post Airmail shipping.
Shipping TrackingWe will notify you by email with a tracking number once the order is shipped. You can also find the tracking number in the order history.
Returning/WarrantyReturning HQonline only accepts return requests due to quality issues. Return requests should be submitted within 30 days of delivery of the goods, please contact customer service for a return authorization.
Parts should be unused and in original packaging.
The customer has to take charge of the shipping.
Warranty All HQonline purchases come with a 30-day money-back return policy, plus a 90-day HQonline warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by the customer to follow instructions, product modification, negligent or improper operation.
OrderingHow to Buy HQonline accepts online orders.
Add to cart > Check out > Submit order > Complete payment >Delivery
Payment PayPal, Payoneer, Credit Card includes Visa, Master, American Express, JCB, Discover.
Western Union, Bank Transfer, Payoneer, AliExpress.
7 In Stock
Qty
Minimum1 Mutiple1
Unit Price$ 0.0557
Ext Price$ 0
Add to Cart
Buy Now
Pricing (USD)
QtyUnit PriceExt Price
1+$0.00510 $0.00510
100+$0.00476 $0.47600
300+$0.00442 $1.32600
500+$0.00408 $2.04000
2000+$0.00391 $7.82000
5000+$0.00380 $19.undefined
