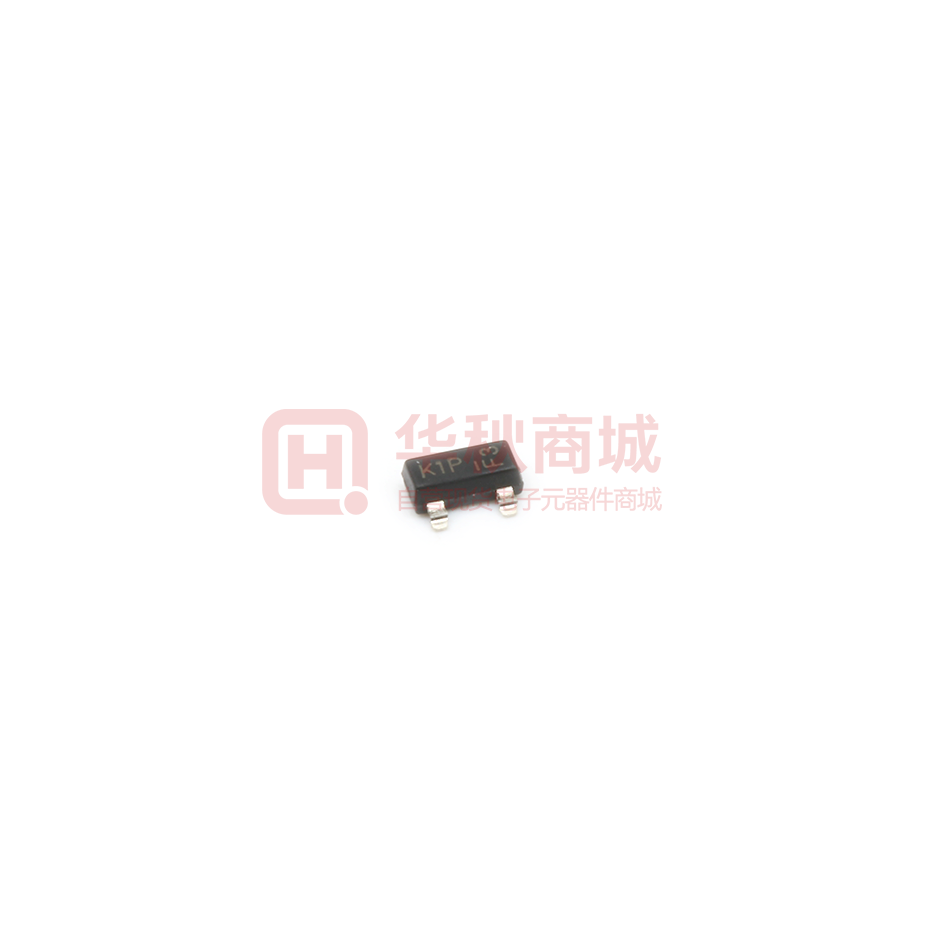

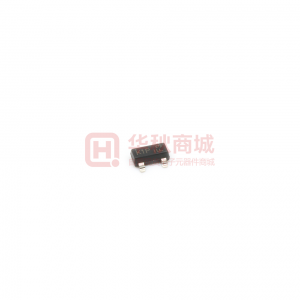

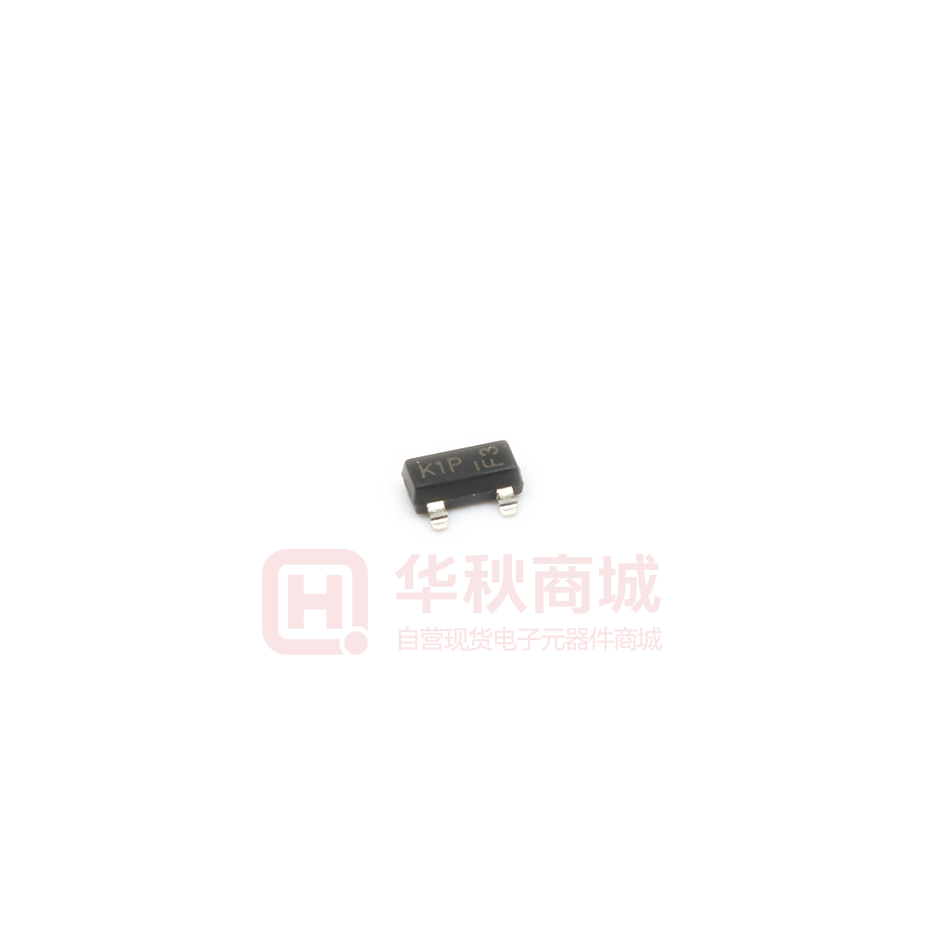

General Purpose Transistors DIODES MMBT2222A-7-F

  • Mfr Part #MMBT2222A-7-F
  • ManufacturerDIODES
  • HQ Part #DS0113669
  • PackageSOT23
  • Lead Time Ship immediately
  • DescriptionGeneral Purpose Transistors NPN Ic=600mA Vceo=40V hfe=100~300 P=350mW SOT23

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Vce Saturation Pressure Drop (Max)1V
Operating Temperature-55~+150℃
Installation Type-
Collecting Emitter Breakdown Voltage Vce (Max)40V
Transistor TypeNPN
Supplier Device PackagingSOT-23-3
DC Current Gain (hFE) (Min&Range)100~300
Transition Frequency300MHz
Collector Current Ic (Max)600mA
Package / CaseSOT23
Lead Spacing1.83mm
Collector Current Ic600mA
Power Dissipation350mW
Power (Watts)310mW
Collector-Emitter Saturation Voltage VCE(sat)1V
Collector- Emitter Voltage VCEO40V
Partlife CycleActive
Lead Quantity3Pin
L x W/Size2.90 x 1.30mm
Country of OriginAmerica
Original ManufacturerDiodes Incorporated
Moisture Sensitivity Level (Msl)-
Lead Free Or NotYes
Current Collector Cutoff (Maximum)10nA(ICBO)
SeriesAutomotive, AEC-Q101
Part StatusActive
