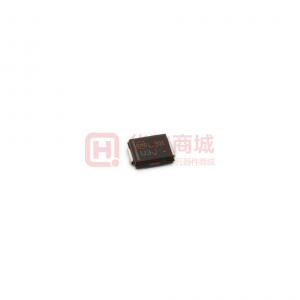

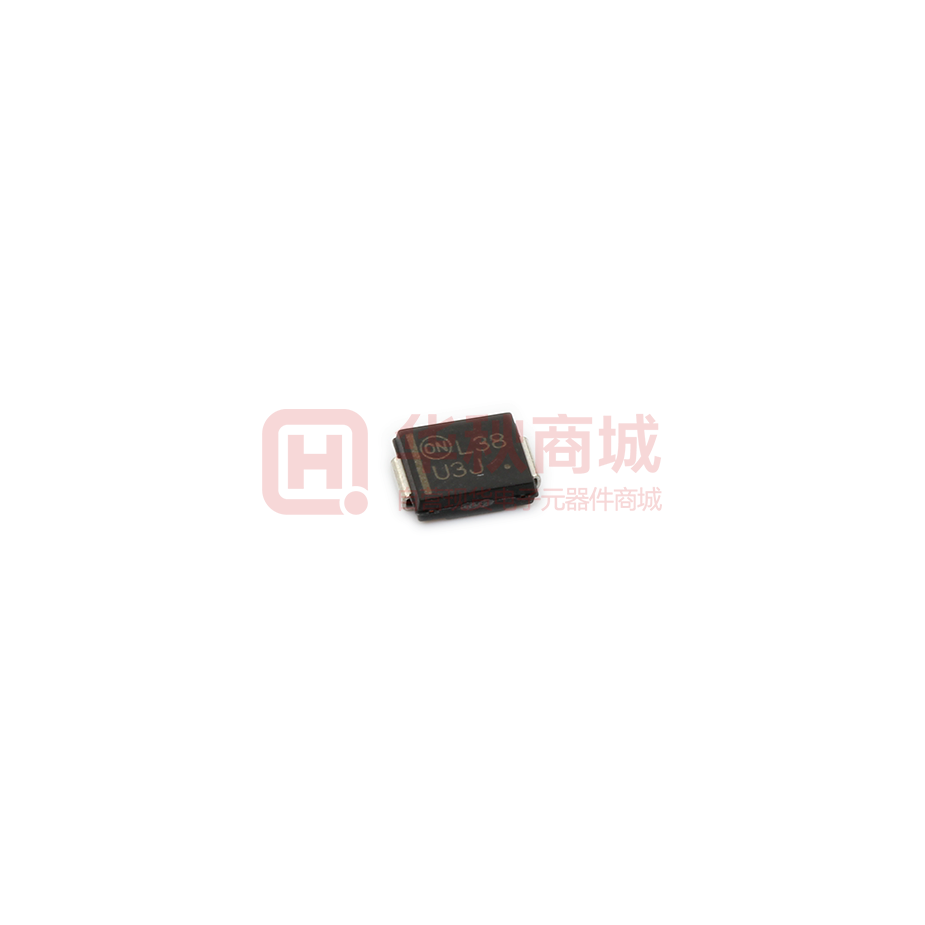

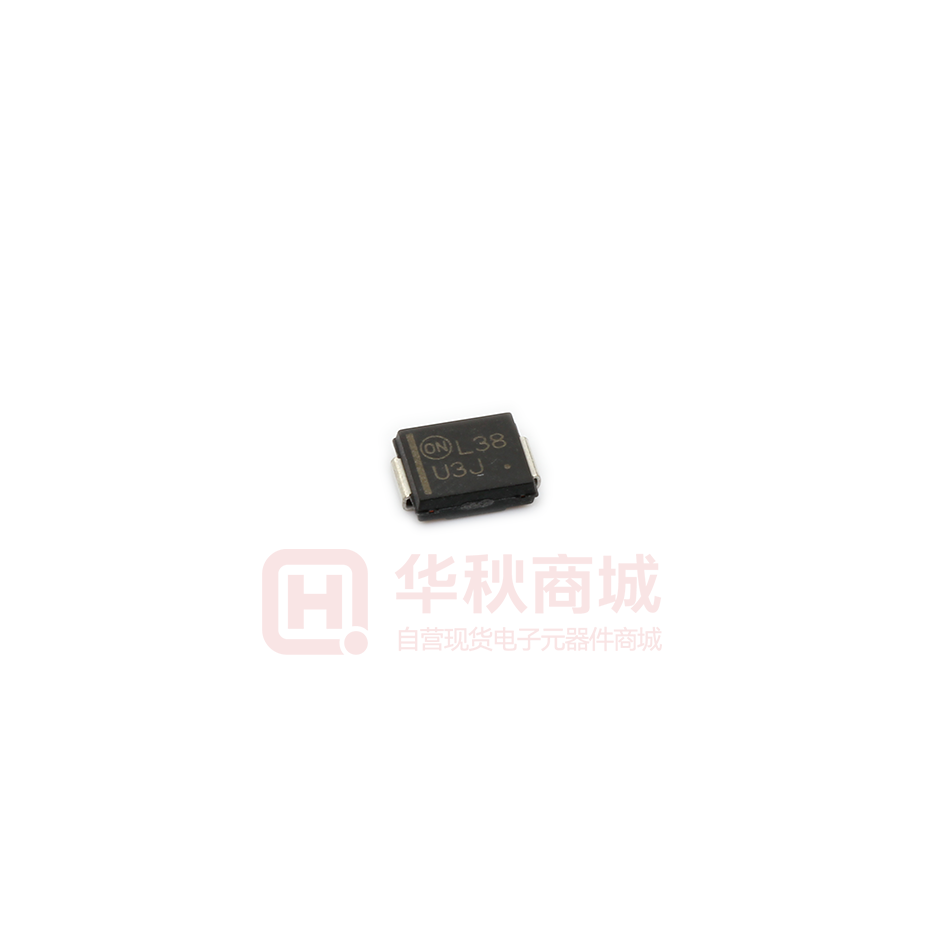

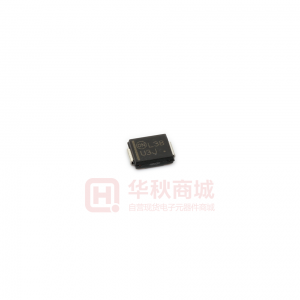

Images are for reference only
MURS360T3G
- Mfr Part #MURS360T3G
- ManufacturerON
- HQ Part #DS0007583
- PackageSMC(DO-214AB)
- Lead Time Ship immediately
Description1.28V@4A 10uA@600V 75ns 4A -65℃~+175℃@(Tj) 600V SMC Diodes - Fast Recovery Rectifiers ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Diode Configuration | - | |
| Operating Temperature | -65℃~+175℃ | |
| Moisture Sensitivity Level (MSL) | - | |
| Reverse Withstand Voltage Vr | 600V | |
| Average Rectified Current | 3A | |
| Forward Voltage Drop Vf | 1.28V | |
| Reverse Recovery Time (trr) | 75ns | |
| Reverse Leakage Current Ir | 10µA | |
| Package / Case | SMC(DO-214AB) | |
| Installation Type | SMT | |
| Forward Voltage VF Max | 1.25V | |
| Storage Temperature | -65℃~+175℃ | |
| Lead Quantity | 2Pin | |
| Height | 2.61mm | |
| L x W/Size | 7.15 x 6.25mm | |
| Country of Origin | America | |
| Original Manufacturer | ON Semiconductor | |
| Application | Automotive | |
| Series | MURS320T3G - MURS360T3G（SURS8） | |
| Part Status | Active | |
| Lead Free Or Not | Yes |
