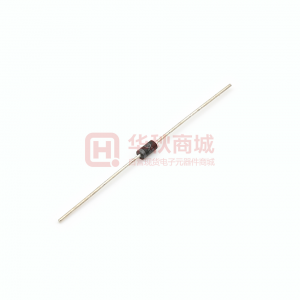

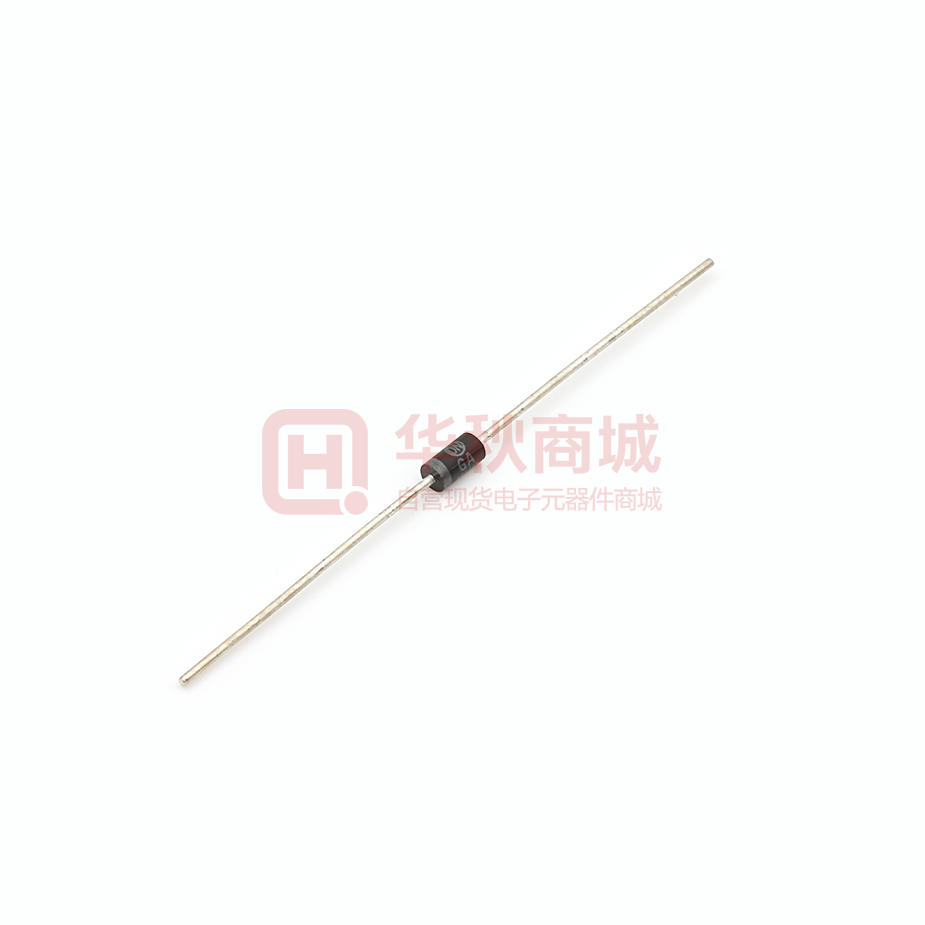

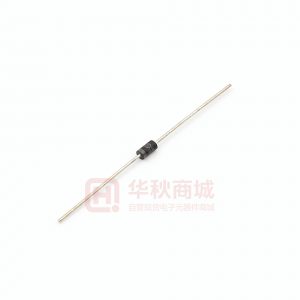

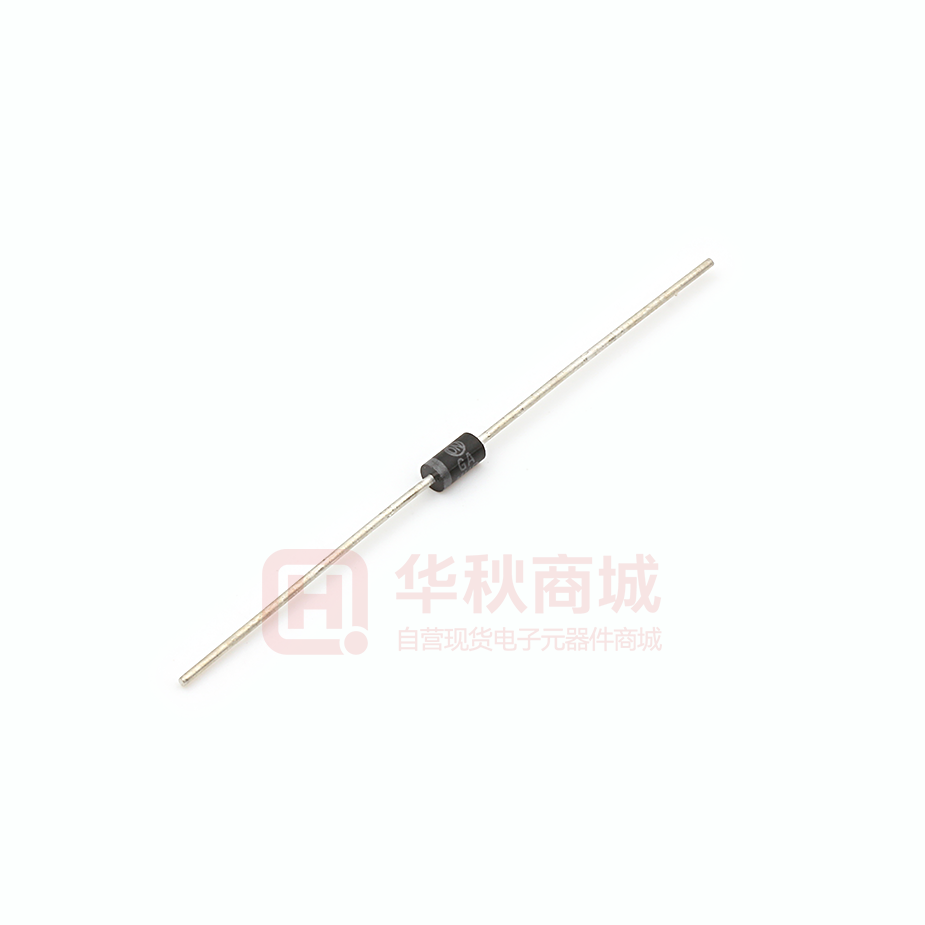

Images are for reference only

Fast / Ultra Fast Recovery Diodes ON MUR220RLG

  • Mfr Part #MUR220RLG
  • ManufacturerON
  • HQ Part #DS0002984
  • PackageDO41
  • Lead Time Ship immediately
  • Description950mV@2A 2uA@200V 35ns Single 2A -65℃~+175℃@(Tj) 200V DO-41 Diodes - Fast Recovery Rectifiers ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Reverse Peak Voltage (Maximum)200V
Diode ConfigurationSingle
Operating Temperature Junction-65°C~175°C
Operating Temperature-65℃~175℃
Moisture Sensitivity Level (Msl)-
Diode Type-
Reverse Withstand Voltage Vr200V
Average Rectification Current If2A
Forward Voltage Drop Vf975mV
Reverse Recovery Time (trr)35ns
Reverse Leakage Current Ir2µA
Supplier Device Packaging-
Package / CaseAxial
Installation TypeDIP
Forward Voltage VF Max750mV
Storage Temperature-65~+175℃
Lead Quantity2pin
L x W/SizeΦ2.70 x 5.20mm
Country of OriginAmerica
Original ManufacturerON Semiconductor
Total Capacitance C-
Manufacturer'S Standard Lead Time-
Part StatusActive
Lead Free Or NotYes
