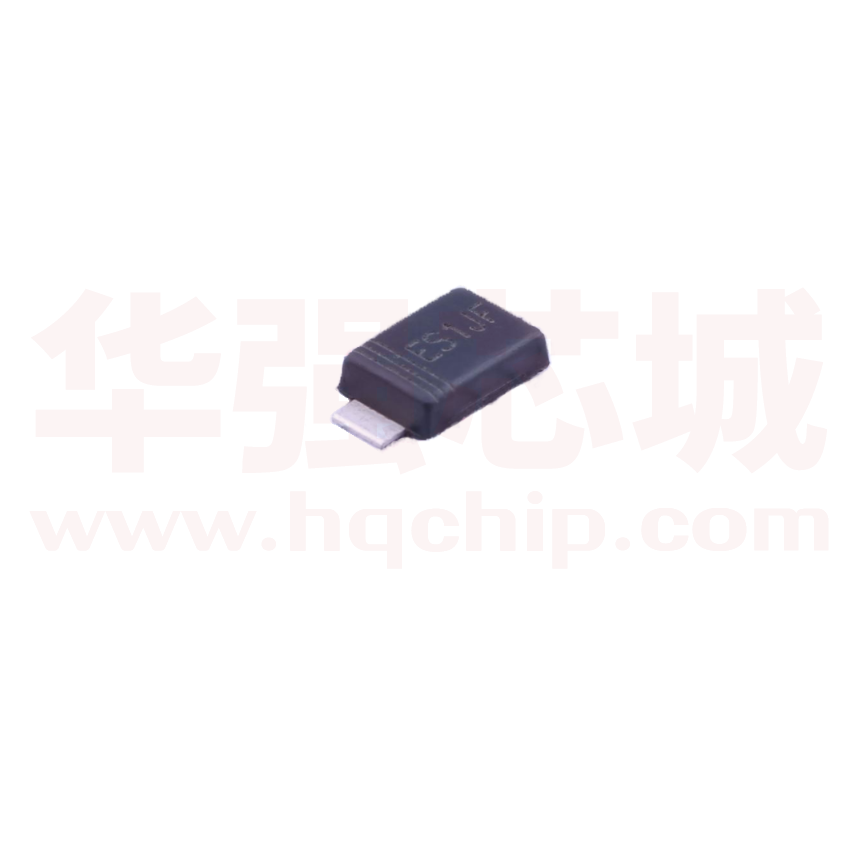

Images are for reference only

ES1JF

  • Mfr Part #ES1JF
  • ManufacturerHottech
  • HQ Part #DS0140160
  • PackageSMAF
  • Lead Time Ship immediately
  • Description1.7V@1A 5uA@600V 35ns 1A -50℃~+150℃@(Tj) 600V SMAF Diodes - Fast Recovery Rectifiers ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Operating Temperature-55℃~150℃
Reverse Withstand Voltage Vr600V
Average Rectified Current1A
Reverse Recovery Time (trr)35ns
Reverse Leakage Current Ir5uA
Package / CaseSMAF
Installation TypeSMT
Maximum DC Blocking Voltage600V
Maximum RMS Voltage Vrms420V
Junction Capacitance15pF
Forward Voltage VF Max1.7
Partlife CycleActive
Lead Quantity2pin
Height1.10mm
L x W/Size3.70 x 2.70mm
Country of OriginChina
Original ManufacturerGuangdong Hottech Co. Ltd.
BrandHottech
Application-
SeriesES1AF - ES1JF
Part StatusActive
