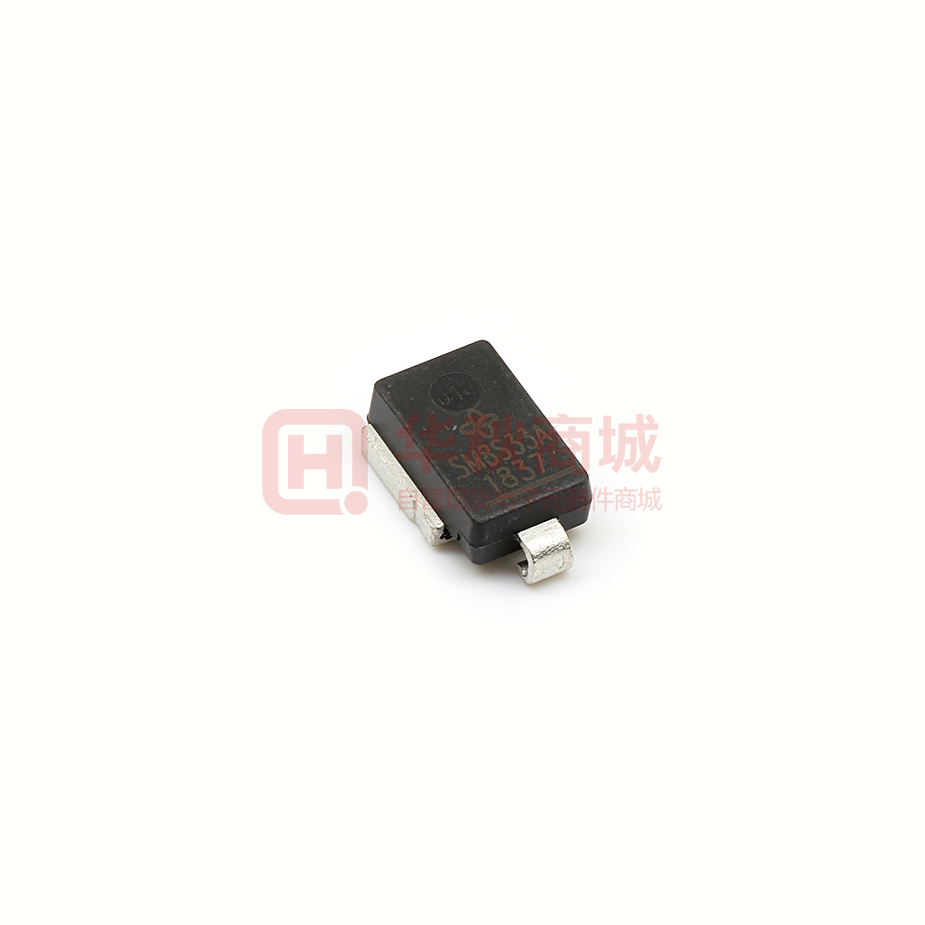

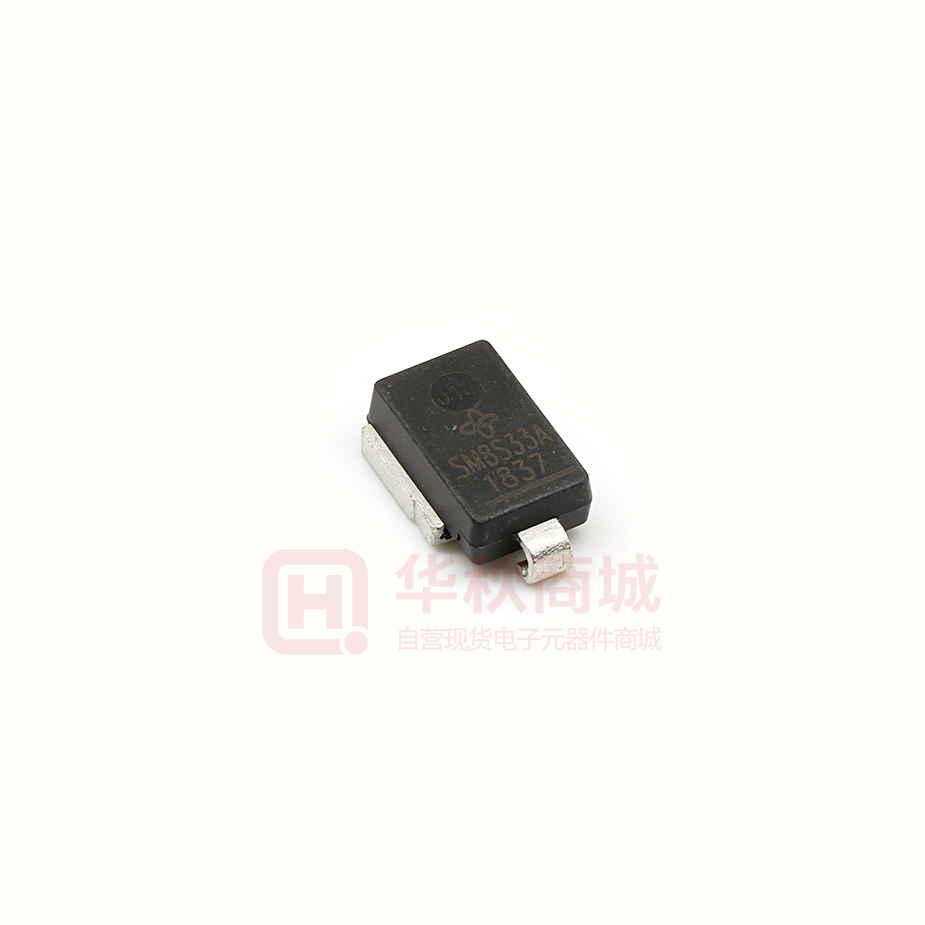

Images are for reference only

ESD Suppressor / TVS Diodes Vishay SM8S33AHE3_A/I

  • Mfr Part #SM8S33AHE3_A/I
  • ManufacturerVishay
  • HQ Part #CP0018489
  • PackageDO218AB
  • Lead Time Ship immediately
  • DescriptionESD Suppressor / TVS Diodes VRWM=33V VBR(min)=36.7V VC=53.3V@IPP=124A DO218AB

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Size13.70 x 8.70mm
Height5.00mm
Peak Pulse Current (Ipp)124A
Installation TypeSMT
Operating Temperature-55~+175℃
Breakdown Voltage V (Br) - Min36.7V
PolarityUnidirectional
Package / CaseDO-218AB
Breakdown Voltage Max40.6V
Country of OriginAmerica
Original ManufacturerVishay Intertechnology, Inc.
BrandVishay
Supply Voltage33V
Off State Voltage33V
Part StatusActive
Number Of Channels1
SeriesSM8S33A
Type-
Moisture Sensitivity Level (MSL)-
ApplicationAutomotive
Lead Free Or NotYes
Power Peak Pulse6.6KW
Terms of Service
ShippingDelivery Period For stock parts, orders placed on HQonline from 8:00-16:00 will be dispatched on the same day
Once shipped, the transit time depends on the logistics provider you choose:
DHL Express, 3-5 days
FedEx International, 3-5 days
China Post Airmail, 15-45 days
Shipping RateShipping rate for your order can be found in the shopping cart.
Shipping OptionWe provide DHL, FedEx, and China Post Airmail shipping.
Shipping TrackingWe will notify you by email with a tracking number once the order is shipped. You can also find the tracking number in the order history.
Returning/WarrantyReturning HQonline only accepts return requests due to quality issues. Return requests should be submitted within 30 days of delivery of the goods, please contact customer service for a return authorization.
Parts should be unused and in original packaging.
The customer has to take charge of the shipping.
Warranty All HQonline purchases come with a 30-day money-back return policy, plus a 90-day HQonline warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by the customer to follow instructions, product modification, negligent or improper operation.
OrderingHow to Buy HQonline accepts online orders.
Add to cart > Check out > Submit order > Complete payment >Delivery
Payment PayPal, Payoneer, Credit Card includes Visa, Master, American Express, JCB, Discover.
Western Union, Bank Transfer, Payoneer, AliExpress.
80 In Stock
Qty
Minimum1 Mutiple1
Unit Price$ 0.0557
Ext Price$ 0
Add to Cart
Buy Now
Pricing (USD)
QtyUnit PriceExt Price
1+$1.50917 $1.50917
10+$1.44951 $14.49510
100+$1.27054 $127.05400
500+$1.23474 $617.37000
