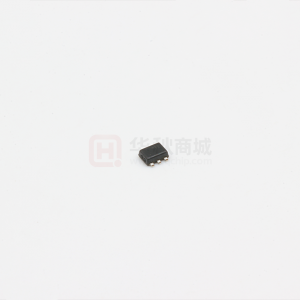

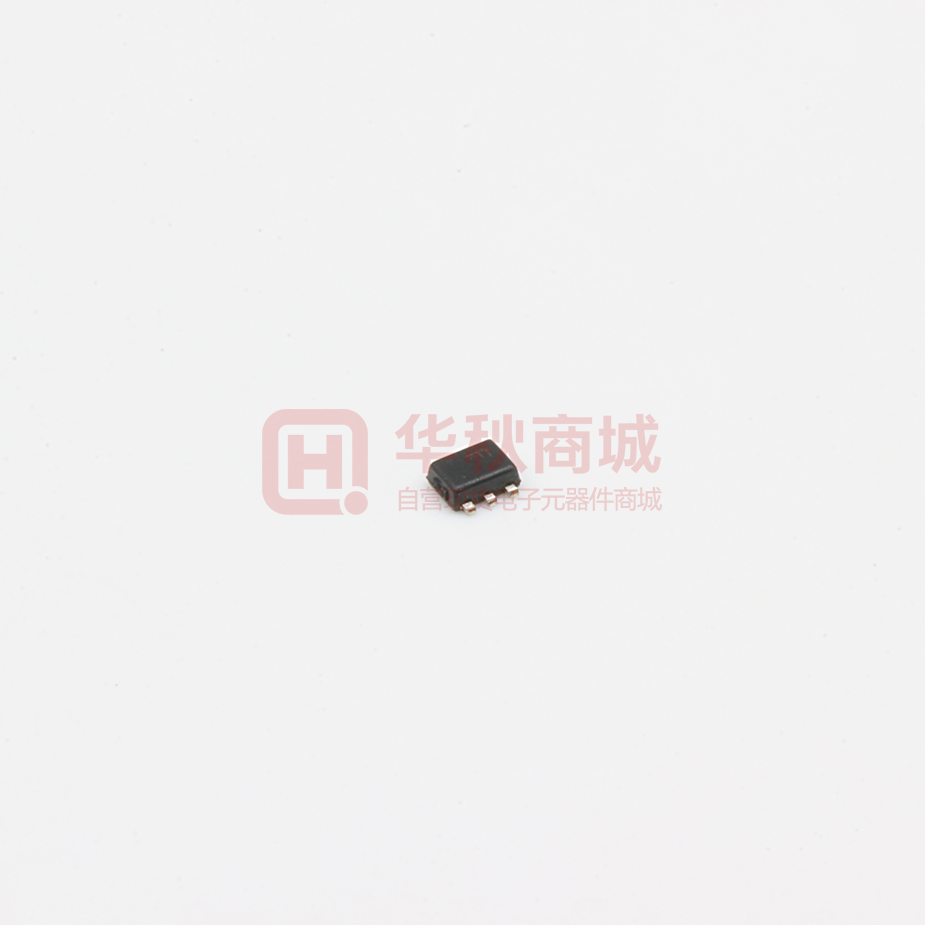

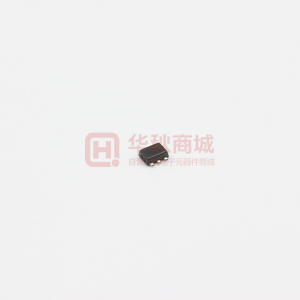

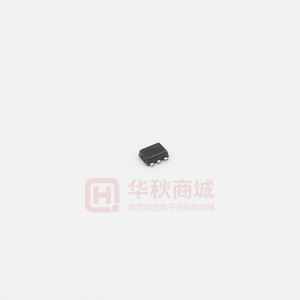

Images are for reference only
ESD Suppressor / TVS Diodes ST USBLC6-2P6
- Mfr Part #USBLC6-2P6
- ManufacturerST
- HQ Part #CP0003811
- PackageSOT666
- Lead Time Ship immediately
DescriptionESD suppressor/TVS diode VRWM=5.25V VBR(Min)=6V VC=17V IPP=5A SOT666
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Reverse Leakage Current Ir | - | |
| Size | 1.70 x 1.30mm | |
| Height | 0.60mm | |
| Peak Pulse Current (Ipp) | 5A | |
| Packing | Tape/Reel | |
| Supplier Device Packaging | SOT-666 | |
| Junction Capacitance Value | - | |
| Installation Type | SMT | |
| Operating Temperature | -40~+125℃ | |
| Clamp Voltage Vc | 17V | |
| Peak Pulse Power | - | |
| Breakdown Voltage V (Br) - Min | 6V | |
| Operating Voltage Vr-Vi (Max) | 5.25V | |
| Operating Voltage Vr-Vi (Max) | 5.25V | |
| Polarity (Single And Two-Way) | Unidirectional | |
| Package / Case | SOT666 | |
| Lead Quantity | 3Pin | |
| Breakdown Voltage Min | 6V | |
| Partlife Cycle | Active | |
| MPQ | 3000pcs | |
| Country of Origin | Switzerland | |
| Original Manufacturer | Stmicroelectronics | |
| Brand | ST | |
| Supply Voltage | 5.25V | |
| Voltage - Off State | 5.25V | |
| Part Status | Active | |
| Number Of Channels | 2 | |
| Series | USB | |
| Type | - | |
| Power Line Protection | - | |
| Moisture Sensitivity Level (Msl) | - | |
| Application | Ethernet | |
| Lead Free Or Not | Yes | |
| One-Way Channel | 2 | |
| Power Peak Pulse | - | |
| Manufacturer'S Standard Lead Time | - |
