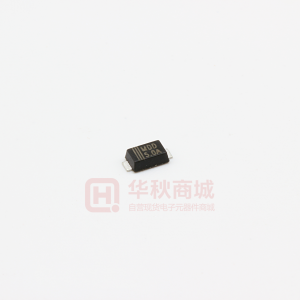

Images are for reference only

SMF5.0A

  • Mfr Part #SMF5.0A
  • ManufacturerMDD
  • HQ Part #DS0139655
  • PackageSMF(SOD-123FL)
  • Lead Time Ship immediately
  • DescriptionESD Suppressor / TVS Diodes PD=200W,VRM=5V,VBR=6.4~7V,VC=9.2V

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Size2.90 x 1.90mm
Height1.10mm
Peak Pulse Current (Ipp)21.7A
Operating Temperature-55~+150℃(TJ)
Breakdown Voltage V (Br) - Min6.4V
PolarityUnidirectional
Lead Quantity2Pin
Partlife CycleActive
Storage Temperature-50~+150°C
CertificationRoHS
Country of OriginChina
Original ManufacturerMicrodiode Electronics(Shenzhen)Co.,Ltd.
BrandMDD
Off State Voltage5V
Part StatusActive
Number Of Channels1
SeriesSMF
Lead Free Or NotYes
Power Peak Pulse200W
Terms of Service
ShippingDelivery Period For stock parts, orders placed on HQonline from 8:00-16:00 will be dispatched on the same day
Once shipped, the transit time depends on the logistics provider you choose:
DHL Express, 3-5 days
FedEx International, 3-5 days
China Post Airmail, 15-45 days
Shipping RateShipping rate for your order can be found in the shopping cart.
Shipping OptionWe provide DHL, FedEx, and China Post Airmail shipping.
Shipping TrackingWe will notify you by email with a tracking number once the order is shipped. You can also find the tracking number in the order history.
Returning/WarrantyReturning HQonline only accepts return requests due to quality issues. Return requests should be submitted within 30 days of delivery of the goods, please contact customer service for a return authorization.
Parts should be unused and in original packaging.
The customer has to take charge of the shipping.
Warranty All HQonline purchases come with a 30-day money-back return policy, plus a 90-day HQonline warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by the customer to follow instructions, product modification, negligent or improper operation.
OrderingHow to Buy HQonline accepts online orders.
Add to cart > Check out > Submit order > Complete payment >Delivery
Payment PayPal, Payoneer, Credit Card includes Visa, Master, American Express, JCB, Discover.
Western Union, Bank Transfer, Payoneer, AliExpress.
5,810 In Stock
Qty
Minimum10 Mutiple10
Unit Price$ 0.0557
Ext Price$ 0
Add to Cart
Buy Now
Pricing (USD)
QtyUnit PriceExt Price
10+$0.01660 $0.16600
50+$0.01532 $0.76600
200+$0.01426 $2.85200
600+$0.01319 $7.91400
1500+$0.01234 $18.51000
3000+$0.01181 $35.43000
