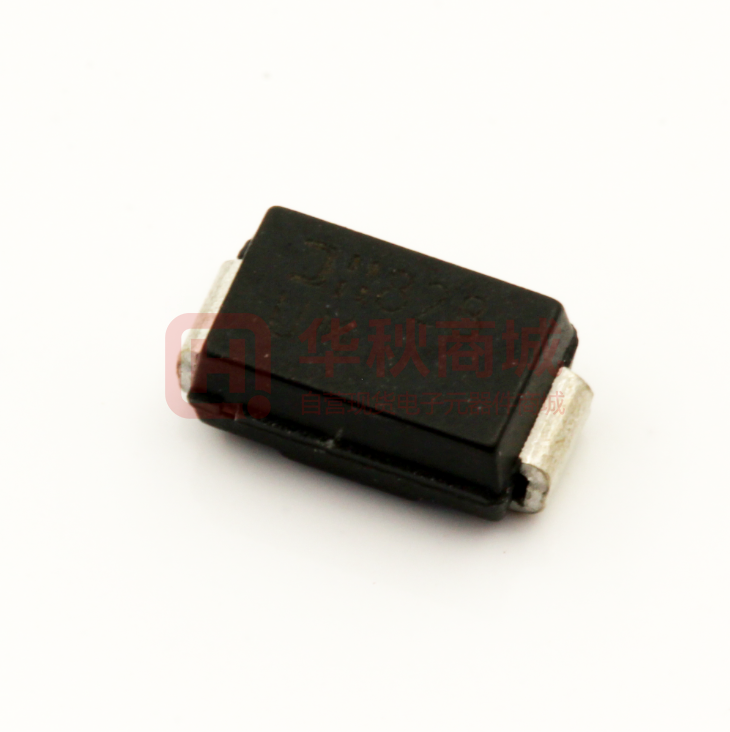

ESD Suppressor / TVS Diodes DIODES SMAJ15CA-13-F
- Mfr Part #SMAJ15CA-13-F
- ManufacturerDIODES
- HQ Part #CP0003616
- PackageSMA
- Lead Time Ship immediately
DescriptionESD Suppressor / TVS Diodes VRWM=15V VBR(min)=16.7V VC=24.4V@IPP=16.4A SMA
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Size | 4.60 x 2.92mm | |
| Height | 2.30mm | |
| Peak Pulse Current (Ipp) | 16.4A | |
| Packing | Tape/Reel | |
| Supplier Device Packaging | SMA | |
| Junction Capacitance Value | - | |
| Installation Type | SMT | |
| Operating Temperature | -55~+150℃(TJ) | |
| Clamp Voltage Vc | 24.4V | |
| Peak Pulse Power | 400W | |
| Breakdown Voltage V (Br) - Min | 16.7V | |
| Operating Voltage Vr-Vi (Max) | 15V | |
| Polarity (Single And Two-Way) | Bidirectional | |
| Package / Case | SMA | |
| Lead Spacing | 4.05mm | |
| Lead Quantity | 2Pin | |
| Breakdown Voltage Max | 18.5V | |
| Breakdown Voltage Min | 16.7V | |
| Partlife Cycle | Active | |
| Storage Temperature | -55~+150℃ | |
| Certification | RoHS | |
| MPQ | 5000pcs | |
| Country of Origin | America | |
| Original Manufacturer | Diodes Incorporated | |
| Brand | Diodes | |
| Voltage - Off State | 15V | |
| Part Status | Active | |
| Number Of Channels | 1 | |
| Series | SMAJ | |
| Type | - | |
| Power Line Protection | - | |
| Moisture Sensitivity Level (Msl) | - | |
| Application | - | |
| Lead Free Or Not | Yes | |
| Power Peak Pulse | 400W | |
| Manufacturer'S Standard Lead Time | - |
