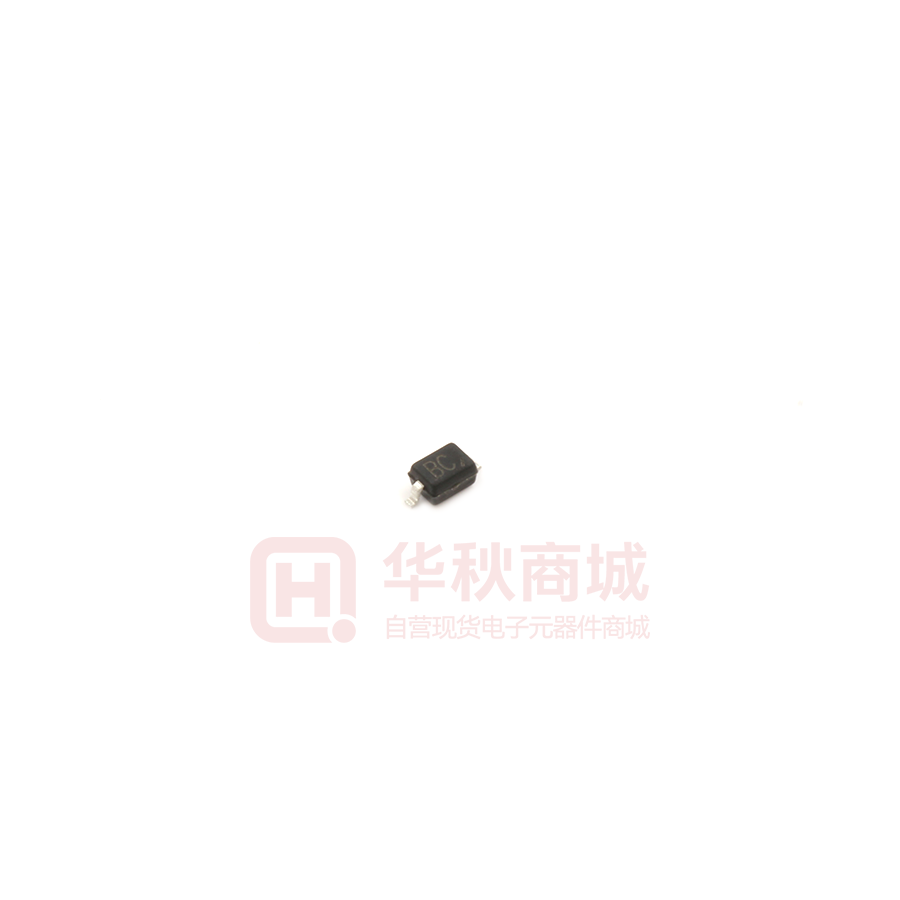

Images are for reference only

UDD32C05L01

  • Mfr Part #UDD32C05L01
  • ManufacturerBrightking
  • HQ Part #DS0137945
  • PackageSOD-323
  • Lead Time Ship immediately
  • Description6V 18.3V 17A 5V Bi-Directional SOD-323 ESD Protection Devices ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Operating Current17A
Rated Voltage-DC5V
Size1.80 x 1.35mm
Height1.10mm
Peak Pulse Current (Ipp)17A
Operating Temperature-55~+150℃(TJ)
Breakdown Voltage V (Br) - Min6V
PolarityBidirectional
Lead Quantity2Pin
Partlife CycleActive
Storage Temperature-55~+150℃
CertificationRoHS
Country of OriginChina
Original ManufacturerGuangdong Baizhen Brightking Electronics Co., LTD
BrandBrightking
Off State Voltage5V
GradeIndustrial
Part StatusActive
Number Of Channels2
SeriesUDD32CXXL01
ApplicationConsumer, Industrial,
Lead Free Or NotYes
Power Peak Pulse350W
Terms of Service
ShippingDelivery Period For stock parts, orders placed on HQonline from 8:00-16:00 will be dispatched on the same day
Once shipped, the transit time depends on the logistics provider you choose:
DHL Express, 3-5 days
FedEx International, 3-5 days
China Post Airmail, 15-45 days
Shipping RateShipping rate for your order can be found in the shopping cart.
Shipping OptionWe provide DHL, FedEx, and China Post Airmail shipping.
Shipping TrackingWe will notify you by email with a tracking number once the order is shipped. You can also find the tracking number in the order history.
Returning/WarrantyReturning HQonline only accepts return requests due to quality issues. Return requests should be submitted within 30 days of delivery of the goods, please contact customer service for a return authorization.
Parts should be unused and in original packaging.
The customer has to take charge of the shipping.
Warranty All HQonline purchases come with a 30-day money-back return policy, plus a 90-day HQonline warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by the customer to follow instructions, product modification, negligent or improper operation.
OrderingHow to Buy HQonline accepts online orders.
Add to cart > Check out > Submit order > Complete payment >Delivery
Payment PayPal, Payoneer, Credit Card includes Visa, Master, American Express, JCB, Discover.
Western Union, Bank Transfer, Payoneer, AliExpress.
23,046 In Stock
Qty
Minimum20 Mutiple20
Unit Price$ 0.0557
Ext Price$ 0
Add to Cart
Buy Now
Pricing (USD)
QtyUnit PriceExt Price
20+$0.02576 $0.51520
200+$0.02414 $4.82800
500+$0.02251 $11.25500
1000+$0.02089 $20.89000
3000+$0.02007 $60.21000
6000+$0.01894 $113.64000
