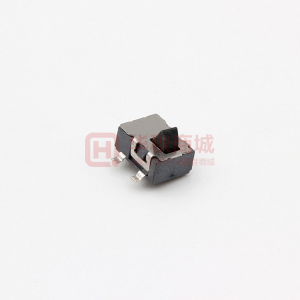

Images are for reference only

TM-8764-1

  • Mfr Part #TM-8764-1
  • ManufacturerXKB
  • HQ Part #SW0049303
  • PackageSW4_4.75X3.7MM_SM
  • Lead Time Ship immediately
  • DescriptionDetector Switches SW4_4.75x3.7mm_SM SPST-NO 100000Cycles 100mA 30VDC Vertical Sticker

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Package / CaseSW4_4.75x3.7mm_SM
Mechanical Life100,000Cycles
Contact CoatingSilver
Rated Current-DC100mA
Lead Quantity4Pin
Contact FormSPST-NO
Partlife CycleActive
Application LevelConsumer
Country of OriginChina
Original ManufacturerGuangdong XKB Technology Co., Ltd.
BrandXKB
Switch Function-
Part StatusActive
SeriesTM-8764-X
Lead Free Or NotYes
Size4.75 x 3.70mm
Operating Force30gf
Operating Life100000Cycles
Rated Voltage - Dc30V
Rated Voltage Ac-
Operating Temperature-40~+85℃
Height0.152"(3.85mm)
CircuitSPST
