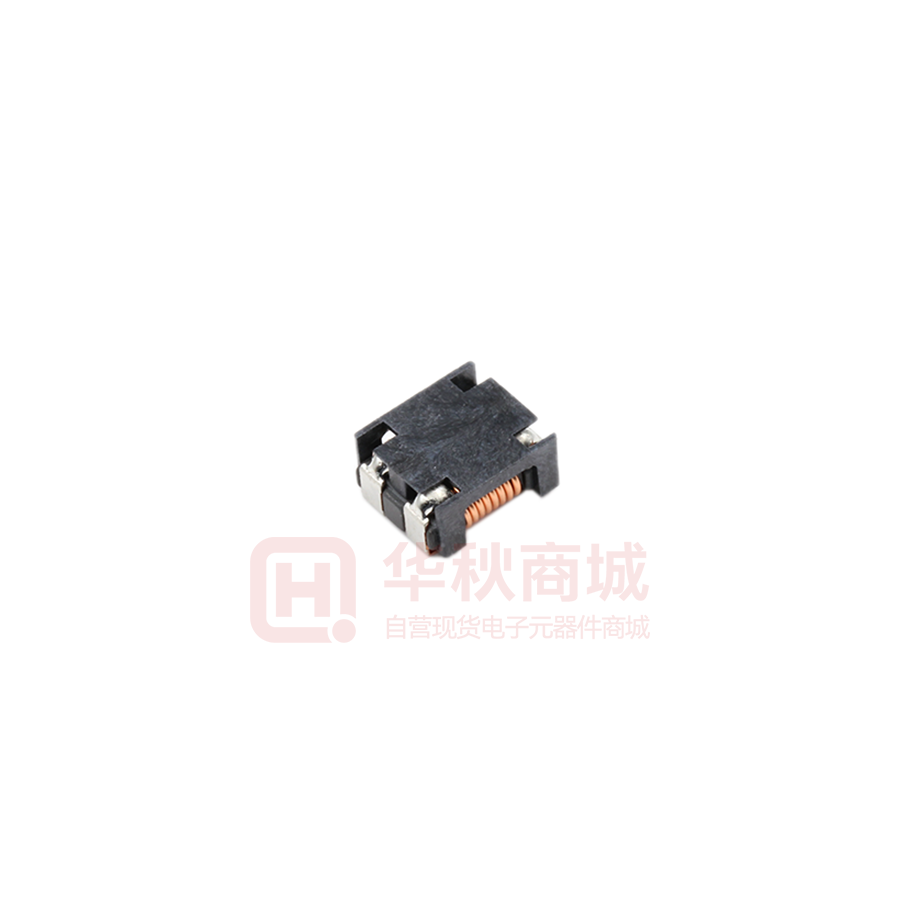

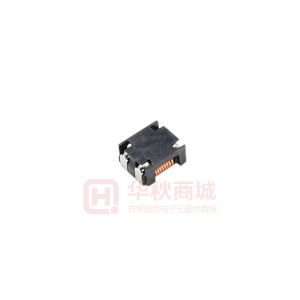

Images are for reference only
ACM7060-701-2PL-TL01
- Mfr Part #ACM7060-701-2PL-TL01
- ManufacturerTDK
- HQ Part #WF0003689
- PackageCHOKE_7X6MM_SM
- Lead Time Ship immediately
DescriptionCommon Mode Chokes 700Ω@100MHz 7.00 x 6.00mm CHOKE_7X6MM_SM 4A 3.50mm 15mΩ 700Ω
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| DC Resistance (DCR) | 15mΩ | |
| Impedance At Different Frequencies | 700Ω@100MHz | |
| Number Of Lines | 2 | |
| Operating Temperature | -40~+85℃ | |
| Rated Current | 4A | |
| Height | 3.50mm | |
| Size | 7.00 x 6.00mm | |
| Package / Case | CHOKE_7X6MM_SM | |
| Installation Type | SMT | |
| Packaging Technology | Wirewound | |
| Partlife Cycle | Active | |
| Storage Temperature | -40~+85℃ | |
| Country of Origin | Japan | |
| Certification | RoHS,HF(halogen free) | |
| Original Manufacturer | TDK Corporation | |
| Brand | TDK | |
| Series | ACM | |
| Lead Free Or Not | Yes | |
| Common Impedance | 700Ω | |
| 0 | Industrial,Consumer | |
| Test Frequency | 100MHz | |
| Grade | Industrial |
