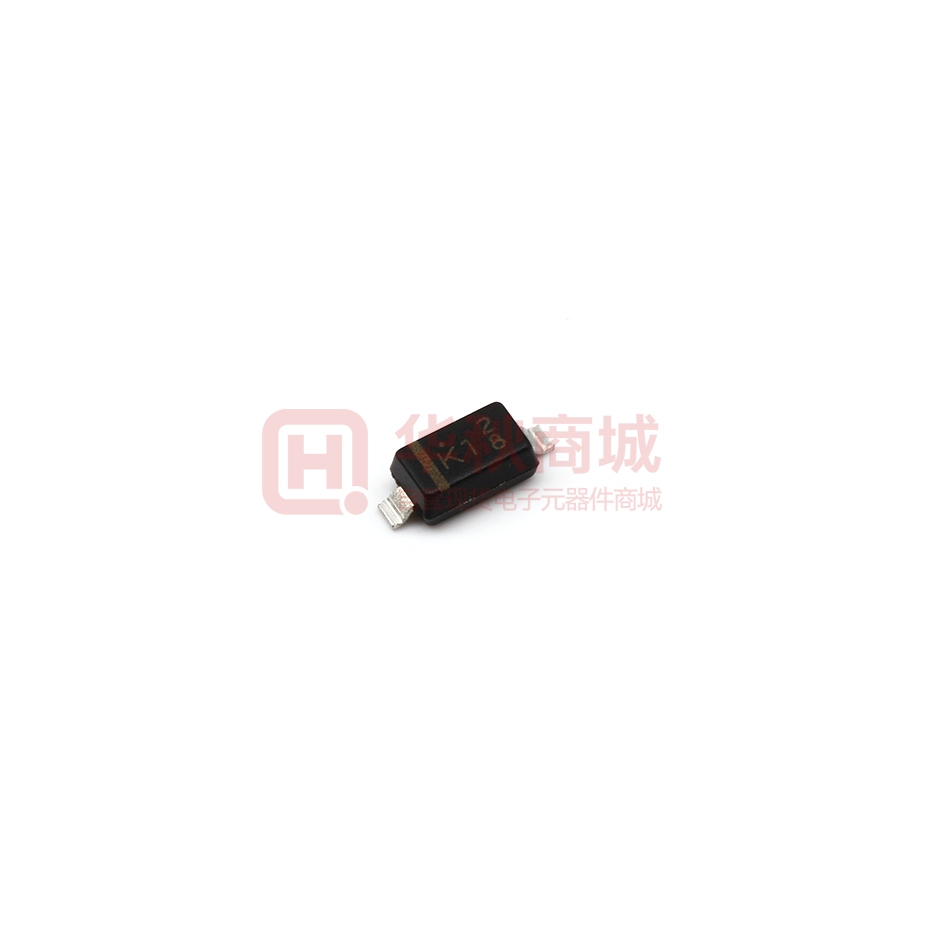

MMSZ5251B_R1_00001
- Mfr Part #MMSZ5251B_R1_00001
- ManufacturerPANJIT
- HQ Part #DS0143146
- PackageSOD-123
- Lead Time Ship immediately
Description100nA@17V 29Ω Single 20.9V~23.1V 500mW 22V SOD-123 Zener Diodes ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Voltage Stabilization Value (Range) | 20.9V~23.1V | |
| Maximum Dissipated Power | 500mW | |
| Diode Configuration | Single | |
| Operating Temperature | -55℃~+150℃ | |
| Reverse Withstand Voltage Vr | 17V | |
| Reverse Leakage Current Ir | 100nA | |
| Package / Case | SOD-123 | |
| Installation Type | SMT | |
| Power | 500mW | |
| Zzt impedance | 29Ω | |
| Izt-Test Current | 5.6mA | |
| Maximum Voltage Regulator | 23.1V | |
| Minimum Voltage Regulator | 20.9V | |
| Standard Voltage Regulator | 22V | |
| Partlife Cycle | Active | |
| Lead Quantity | 2Pin | |
| Height | 1.35mm | |
| L x W/Size | 2.80 x 1.80mm | |
| Country of Origin | China Taiwan | |
| Original Manufacturer | PANJIT International Inc. | |
| Part Status | Active |
