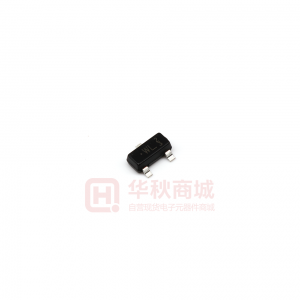

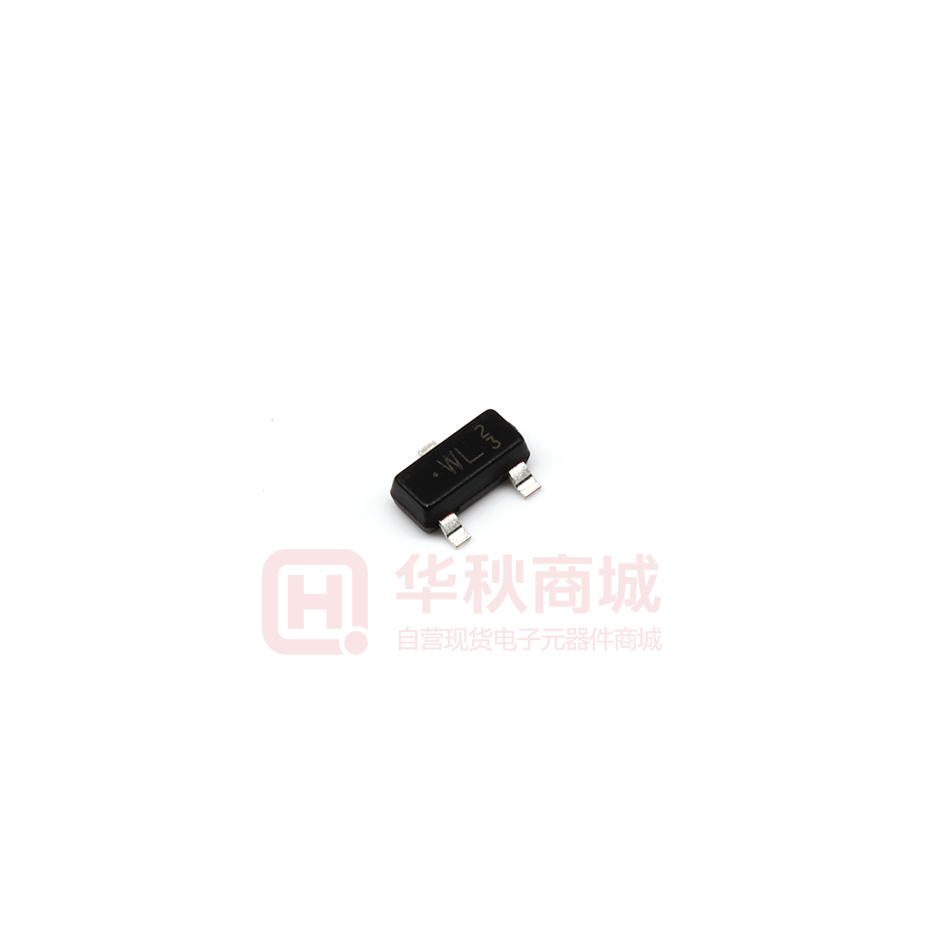

Images are for reference only

BZX84C15_R1_00001

  • Mfr Part #BZX84C15_R1_00001
  • ManufacturerPANJIT
  • HQ Part #DS0143112
  • PackageSOT23
  • Lead Time Ship immediately
  • Description100nA@10.5V 30Ω Single 14.25V~15.75V 410mW 15V SOT-23 Zener Diodes ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Maximum Dissipated Power410mW
Operating Temperature-55℃~150℃
Reverse Withstand Voltage Vr10.5V
Reverse Leakage Current Ir100nA
Package / CaseSOT23
Installation TypeSMT
Zzt impedance30Ω
Izt-Test Current5mA
Maximum Voltage Regulator15.75V
Minimum Voltage Regulator14.25V
Standard Voltage Regulator15V
Partlife CycleActive
Lead Quantity3Pin
Height1.10mm
L x W/Size3.04 x 1.40mm
Country of OriginChina Taiwan
Original ManufacturerPANJIT International Inc.
BrandPANJIT
SeriesBZX84C15
Part StatusActive
Lead Free Or NotYes
