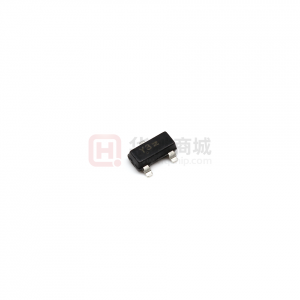

Images are for reference only
Zener / Zener Diodes ON BZX84C13LT1G
- Mfr Part #BZX84C13LT1G
- ManufacturerON
- HQ Part #DS0038790
- PackageSOT23
- Lead Time Ship immediately
DescriptionZener / Zener Diodes SOT23 Vz=13V 12.4V~14.1V Zzt=30Ω Izt=5mA P=250mW
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Reverse Current Izt | 5mA | |
| Voltage Stabilizing Value Vz | 13V | |
| Dynamic Resistance (Maximum) | 30 Ohms | |
| Accuracy | ±6% | |
| Maximum Dissipated Power | 300mW | |
| Packing | Tape/Reel | |
| Diode Configuration | Single | |
| Operating Temperature | -65℃~150℃ | |
| Moisture Sensitivity Level (Msl) | - | |
| Forward Voltage Drop Vf | 900mV | |
| Reverse Leakage Current Ir | 100nA | |
| Supplier Device Packaging | SOT-23-3（TO-236） | |
| Installation Type | SMT | |
| Lead Spacing | 1.9mm | |
| Zzt impedance 最大值 | 30Ω | |
| Forward Voltage VF Max | 900mV | |
| Izt-Test Current | 5mA | |
| Maximum Voltage Regulator | 14.1V | |
| Minimum Voltage Regulator | 12.4V | |
| Standard Voltage Regulator | 13V | |
| Thermal Resistance | 417°C/W | |
| Partlife Cycle | Active | |
| Application Level | AEC-Q101 | |
| Storage Temperature | -65~+150℃ | |
| Lead Quantity | 3Pin | |
| Height | 1.11mm | |
| L x W/Size | 3.04 x 1.40mm | |
| Certification | RoHS | |
| MPQ | 3000pcs | |
| Printing Code | Y3 | |
| Country of Origin | America | |
| Original Manufacturer | ON Semiconductor Inc. | |
| Brand | Onsemi | |
| Tolerance Tol | ±6% | |
| Application | - | |
| Current Dc Forward (If) | 10mA | |
| Manufacturer'S Standard Lead Time | - | |
| Series | BZX84CxxxLT1G | |
| Part Status | Active | |
| Lead Free Or Not | Yes |
