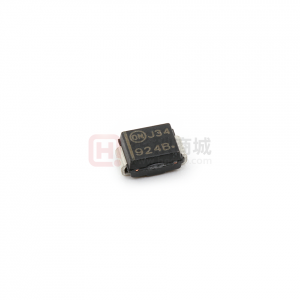

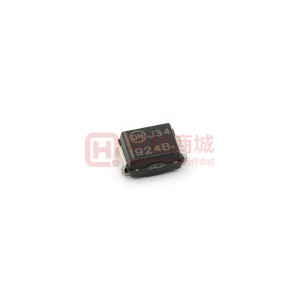

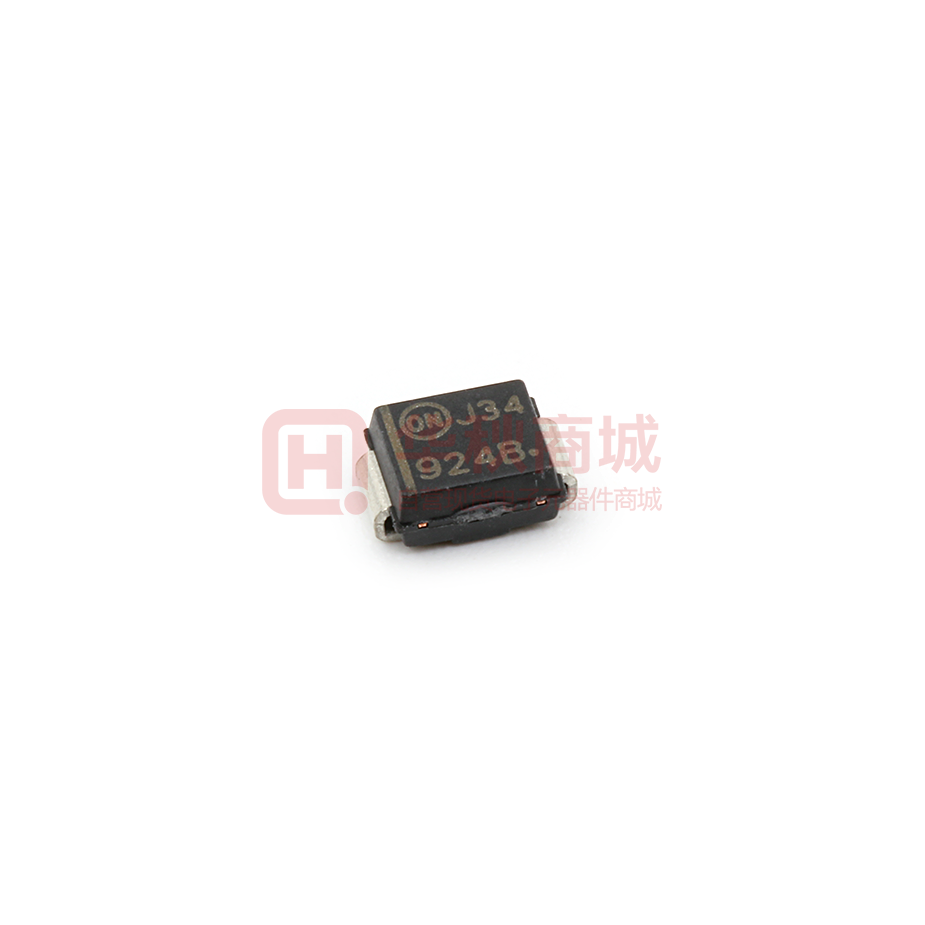

Zener / Zener Diodes ON 1SMB5924BT3G

  • Mfr Part #1SMB5924BT3G
  • ManufacturerON
  • HQ Part #DS0039531
  • PackageSMB
  • Lead Time Ship immediately
  • Description9.1V ±5% 550mW 5uA@7V 4Ω Single 8.64V~9.56V SMB(DO-214AA) Zener Diodes ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Reverse Current Izt41.2mA
Voltage Stabilizing Value Vz9.1V
Dynamic Resistance (Maximum)4Ohm
Dynamic Resistance (Maximum)4Ohm
Maximum Dissipated Power3W
Diode ConfigurationSingle
Operating Temperature-65℃~150℃
Moisture Sensitivity Level (Msl)-
Moisture Sensitivity Level (Msl)-
Reverse Withstand Voltage Vr7V
Forward Voltage Drop Vf1.5V
Reverse Leakage Current Ir5μA
Supplier Device PackagingSMB
Supplier Device PackagingSMB
Installation TypeSMT
Impedance Typ
Maximum Voltage Regulator9.56V
Minimum Voltage Regulator8.64V
Standard Voltage Regulator9.1V
Zzk-Impedance Max500Ω
Storage Temperature-65~+150℃
Lead Quantity2pin
L x W/Size4.60 x 3.95mm
Country of OriginAmerica
Original ManufacturerON Semiconductor Inc.
Tolerance Tol±5%
Manufacturer'S Standard Lead Time-
Part StatusActive
Lead Free Or NotYes
