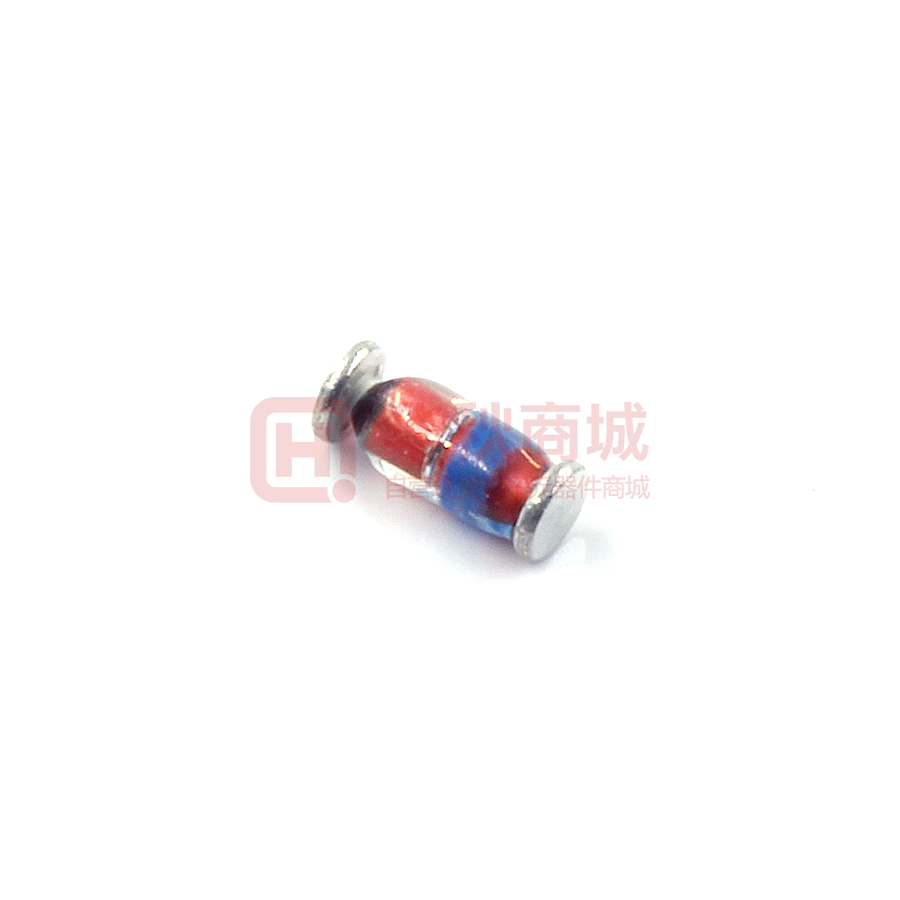

Images are for reference only

ZMM2V7

  • Mfr Part #ZMM2V7
  • ManufacturerHottech
  • HQ Part #DS0140087
  • PackageLL-34(SOD-80)
  • Lead Time Ship immediately
  • DescriptionZener / Zener Diodes Vz=2.7V 2.5V~2.9V Izt=5mA P=500mW LL34

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Maximum Dissipated Power500mW
Operating Temperature+175℃(TJ)
Moisture Sensitivity Level (MSL)-
Average Rectified Current100mA
Reverse Leakage Current Ir10µA
Installation TypeSMT
Forward Voltage VF Max1V
Izt-Test Current5mA
Maximum Voltage Regulator2.9V
Minimum Voltage Regulator2.5V
Standard Voltage Regulator2.7V
Reference Weight0.04g
Partlife CycleActive
Storage Temperature-55~+175℃
Lead Quantity2pin
Height1.60mm
L x W/SizeΦ1.60 x 3.70mm
Country of OriginChina
Original ManufacturerGuangdong Hottech Co. Ltd.
BrandHottech
Application-
Forward Current100mA
Part StatusActive
