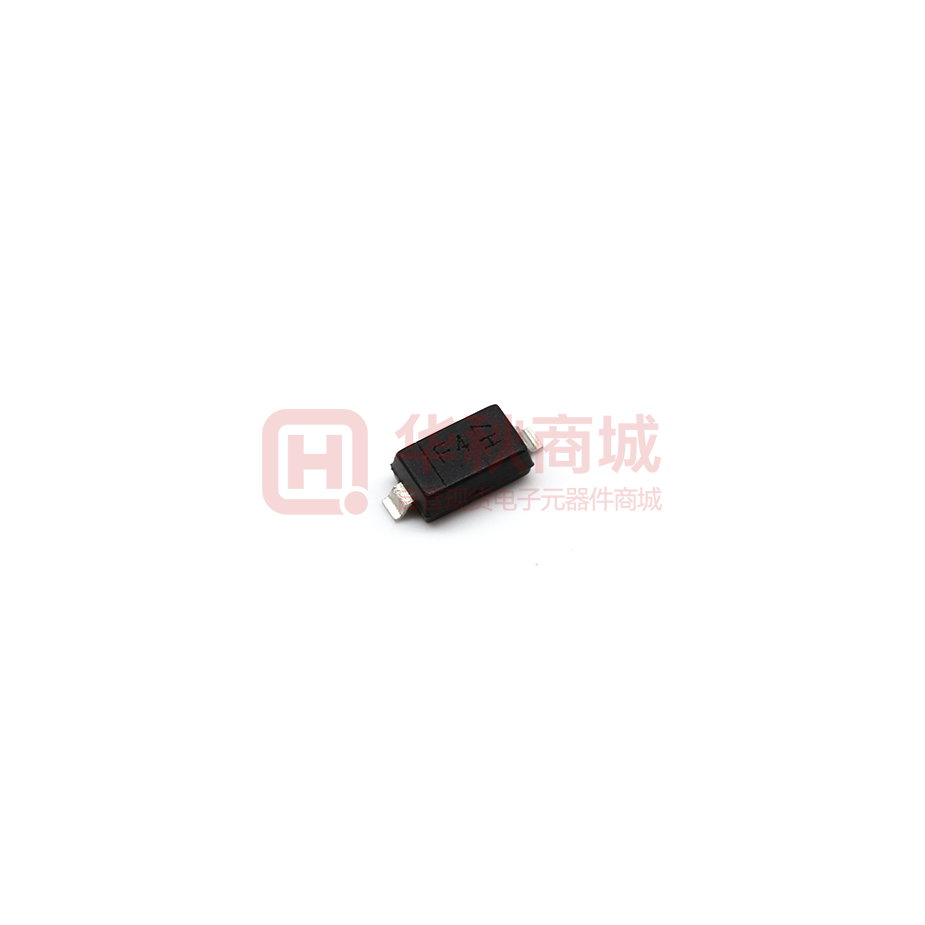

Images are for reference only


  • Mfr Part #MMSZ5239B-7-F
  • ManufacturerDIODES
  • HQ Part #DS0039286
  • PackageSOD123
  • Lead Time Ship immediately
  • Description3uA@7V 10Ω Single 8.65V~9.56V 500mW 9.1V SOD-123 Zener Diodes ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Maximum Dissipated Power500mW
Operating Temperature-65℃~150℃
Moisture Sensitivity Level (MSL)-
Reverse Withstand Voltage Vr7V
Reverse Leakage Current Ir3µA
Package / CaseSOD123
Installation TypeSMT
Forward Voltage VF Max900mV
Izt-Test Current20mA
Maximum Voltage Regulator9.56V
Minimum Voltage Regulator8.65V
Standard Voltage Regulator9.1V
Partlife CycleActive
Application LevelAEC-Q101
Storage Temperature-65~+150℃
Lead Quantity2pin
L x W/Size2.65 x 1.55mm
Country of OriginAmerica
Original ManufacturerDiodes Incorporated
Part StatusActive
Lead Free Or NotYes
