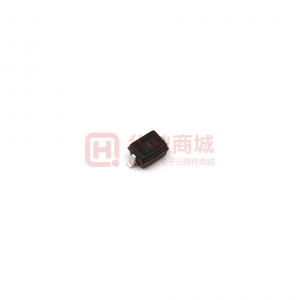

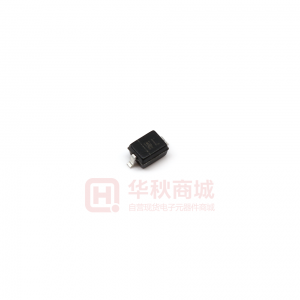

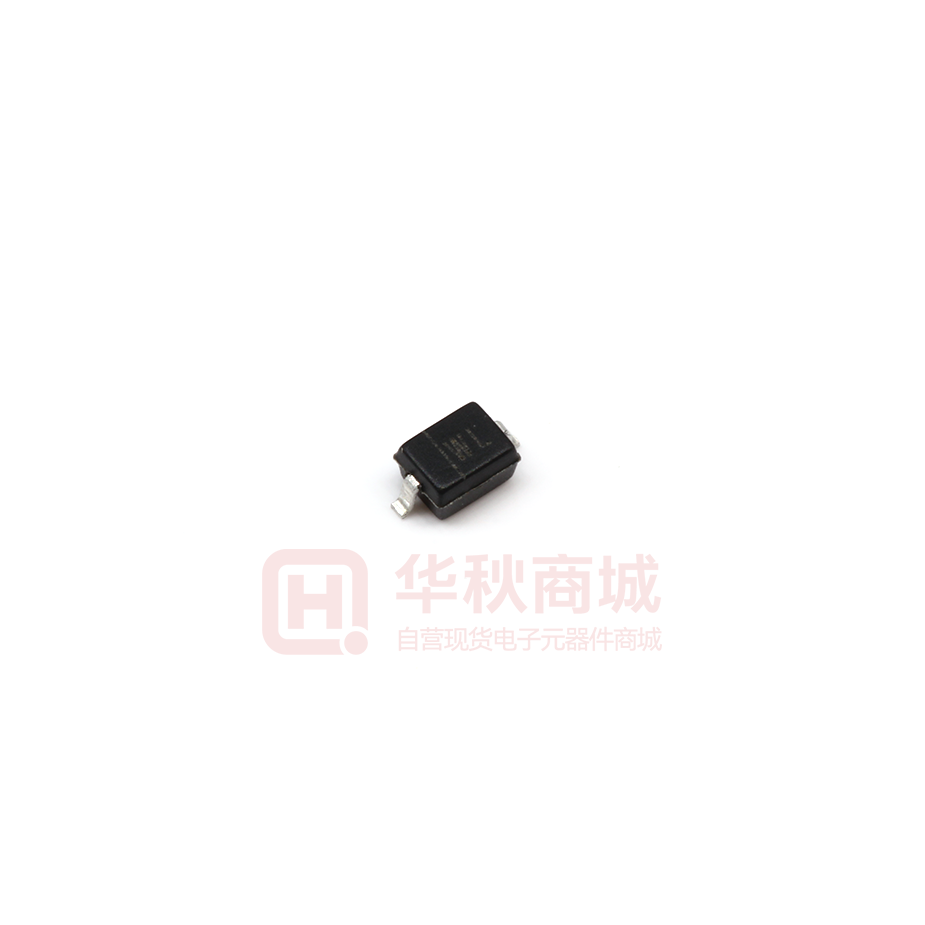

Images are for reference only


  • Mfr Part #BZT52C18S-7-F
  • ManufacturerDIODES
  • HQ Part #DS0039388
  • PackageSOD323
  • Lead Time Ship immediately
  • Description100nA@12.6V 45Ω Single 16.8V~19.1V 200mW 18V SOD-323 Zener Diodes ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Maximum Dissipated Power200mW
Operating Temperature-65~+150℃(TJ)
Moisture Sensitivity Level (MSL)-
Reverse Withstand Voltage Vr12.6V
Reverse Leakage Current Ir100nA
Package / CaseSOD323
Installation TypeSMT
Zzt impedance45Ω
Forward Voltage VF Max900mV
Izt-Test Current5mA
Maximum Voltage Regulator19.1V
Minimum Voltage Regulator16.8V
Standard Voltage Regulator18V
The Tolerance Of The Reference Voltage6.41%
Partlife CycleActive
Storage Temperature-65~+150℃
Lead Quantity2pin
L x W/Size1.70 x 1.30mm
CertificationRoHS, AEC-Q101
Country of OriginAmerica
Original ManufacturerDiodes Incorporated
Part StatusActive
Lead Free Or NotYes
