Restocking
Images are for reference only

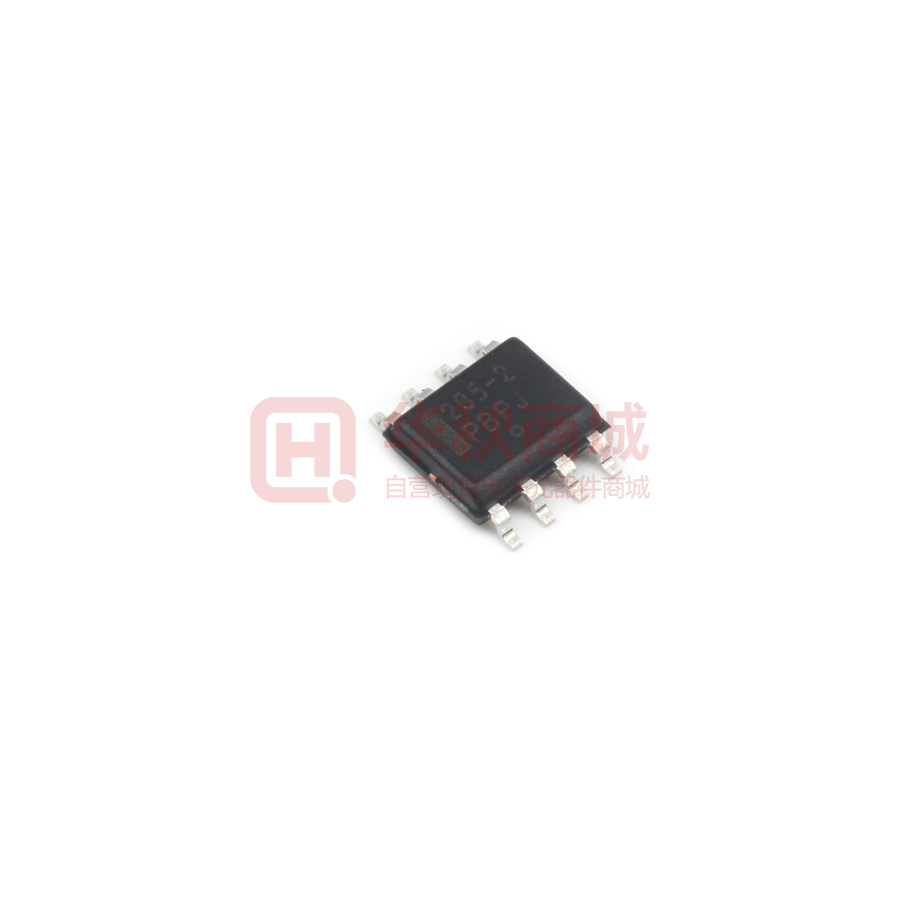

Voltage Reference ON LM285D-2.5R2G
- Mfr Part #LM285D-2.5R2G
- ManufacturerON
- HQ Part #IC0021333
- PackageSOIC8_150MIL
- Lead Time Ship immediately
Description-40℃~+85℃@(Ta) ±1.5% parallel connection 120uVrms 20mA 80ppm/℃ Fixed SOIC-8 Voltage References ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Lead Quantity | 8Pin | |
| Cathode Current | 30µA | |
| Noise - 10Hz To 10Hz | 120µVrms | |
| Temperature Coefficient (Temperature Drift) | 80ppm/℃ | |
| Initial Accuracy (Error) | ±1.5% | |
| Output Current | 20mA | |
| Output Voltage (Maximum) | - | |
| Output Voltage (Minimum/Fixed) | 2.5V | |
| Reference Source Type | Shunt | |
| Type Of Output | Fixed | |
| Operating Current | - | |
| Output Voltage | 2.5V | |
| Package / Case | SOIC8_150MIL | |
| Installation Type | SMT | |
| Lead Spacing | 1.27mm | |
| Input Voltage Range | - | |
| Noise - 10Hz to 10KHz | 120µVrms | |
| Tolerance | ±1.5% | |
| MPQ | 2500pcs | |
| Original Manufacturer | ON Semiconductor Inc. | |
| Brand | Onsemi | |
| Height | 1.75mm | |
| Size | 4.90 x 3.89mm | |
| Operating Temperature | -40~+85℃ | |
| Series | - |
