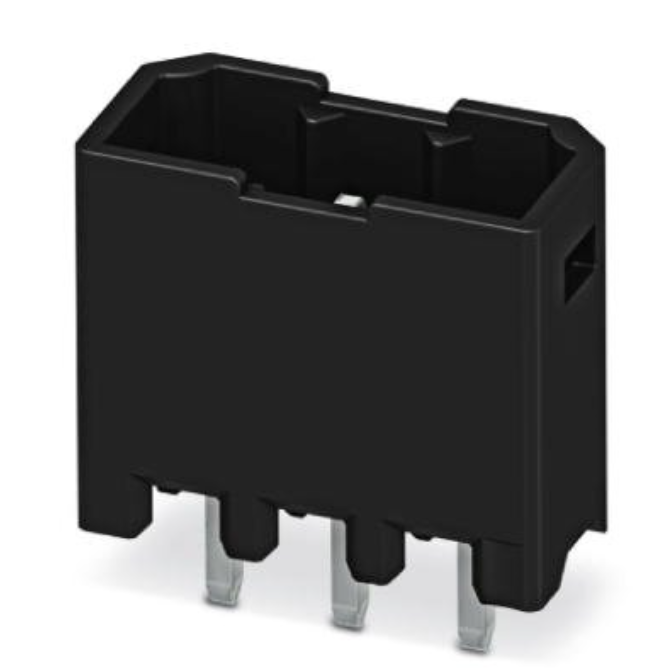

Images are for reference only

1778560

  • Mfr Part #1778560
  • ManufacturerPhoenix
  • HQ Part #CO0366623
  • PackageTERMINAL_5X9.2MM_TM
  • Lead Time Ship immediately
  • DescriptionTerminal spacing 2.5mm, 1x3Pin direct insertion tinning

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
ApplicationIndustrial
Current - Ul-
Current Iec6A
Terminal Type-
Spacing2.50mm
Rated Voltage160V
Package / CaseTERMINAL_5X9.2MM_TM
Characteristic-
Rated Current6A
Operating Temperature-40~+100℃
Contact Coating Thickness3.00um
Contact Coating-
TerminationPCB
Installation TypeDIP
Row Number1
Number of Positions3Pin
Mounting OrientationVertical
Application LevelIndustrial
Connector SystemCOMBICON COMPACT PTSM
Partlife CycleActive
Storage Temperature-40~+70℃
CertificationRoHS
Country of OriginGermany
Size5.00 x 9.20mm
ManufacturerPhoenix Contact GmbH & Co. KG
Voltage - Ul-
Voltage Iec160V
Height7.50mm
Part Status-
SeriesPTSM 0,5
Lead Free Or NotYes
Moisture Sensitivity Level (MSL)-
Colour-
