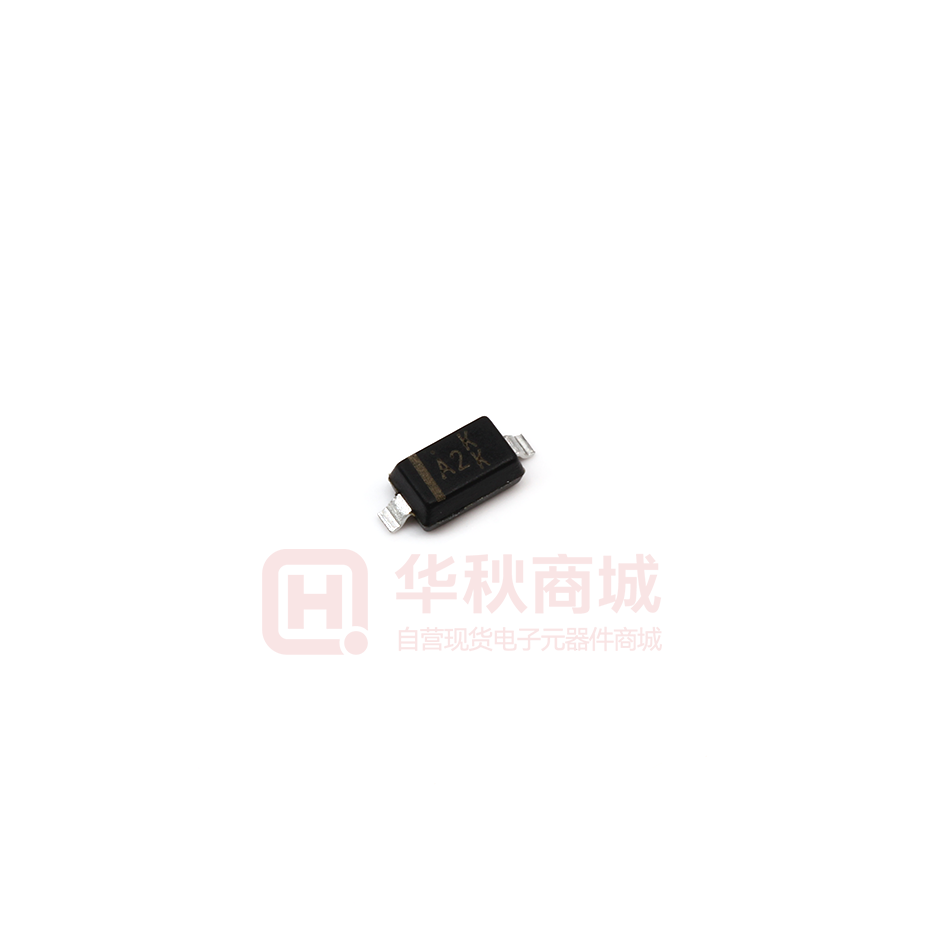

Images are for reference only

1N4148W_R1_00101

  • Mfr Part #1N4148W_R1_00101
  • ManufacturerPANJIT
  • HQ Part #DS0143084
  • PackageSOD123
  • Lead Time Ship immediately
  • DescriptionSOD-123 Switching Diode ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Maximum Dissipated Power410mW
Operating Temperature-55℃~150℃
Reverse Withstand Voltage Vr75V
Average Rectified Current200mA
Reverse Recovery Time (trr)4ns
Reverse Leakage Current Ir2.5µA
Package / CaseSOD123
Installation TypeSMT
Forward Voltage VF Max1.25V
Partlife CycleActive
Lead Quantity2pin
Height1.35mm
L x W/Size2.80 x 1.80mm
CertificationRoHS
Country of OriginChina Taiwan
Original ManufacturerPANJIT International Inc.
BrandPANJIT
Forward Current200mA
Series-
Part StatusActive
Lead Free Or NotYes
Terms of Service
ShippingDelivery Period For stock parts, orders placed on HQonline from 8:00-16:00 will be dispatched on the same day
Once shipped, the transit time depends on the logistics provider you choose:
DHL Express, 3-5 days
FedEx International, 3-5 days
China Post Airmail, 15-45 days
Shipping RateShipping rate for your order can be found in the shopping cart.
Shipping OptionWe provide DHL, FedEx, and China Post Airmail shipping.
Shipping TrackingWe will notify you by email with a tracking number once the order is shipped. You can also find the tracking number in the order history.
Returning/WarrantyReturning HQonline only accepts return requests due to quality issues. Return requests should be submitted within 30 days of delivery of the goods, please contact customer service for a return authorization.
Parts should be unused and in original packaging.
The customer has to take charge of the shipping.
Warranty All HQonline purchases come with a 30-day money-back return policy, plus a 90-day HQonline warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by the customer to follow instructions, product modification, negligent or improper operation.
OrderingHow to Buy HQonline accepts online orders.
Add to cart > Check out > Submit order > Complete payment >Delivery
Payment PayPal, Payoneer, Credit Card includes Visa, Master, American Express, JCB, Discover.
Western Union, Bank Transfer, Payoneer, AliExpress.
3,758 In Stock
Qty
Minimum1 Mutiple1
Unit Price$ 0.0557
Ext Price$ 0
Add to Cart
Buy Now
Pricing (USD)
QtyUnit PriceExt Price
1+$0.00997 $0.00997
100+$0.00931 $0.93100
300+$0.00864 $2.59200
500+$0.00798 $3.99000
2000+$0.00764 $15.28000
5000+$0.00744 $37.20000
