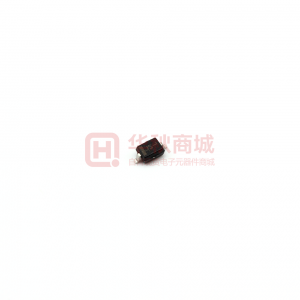

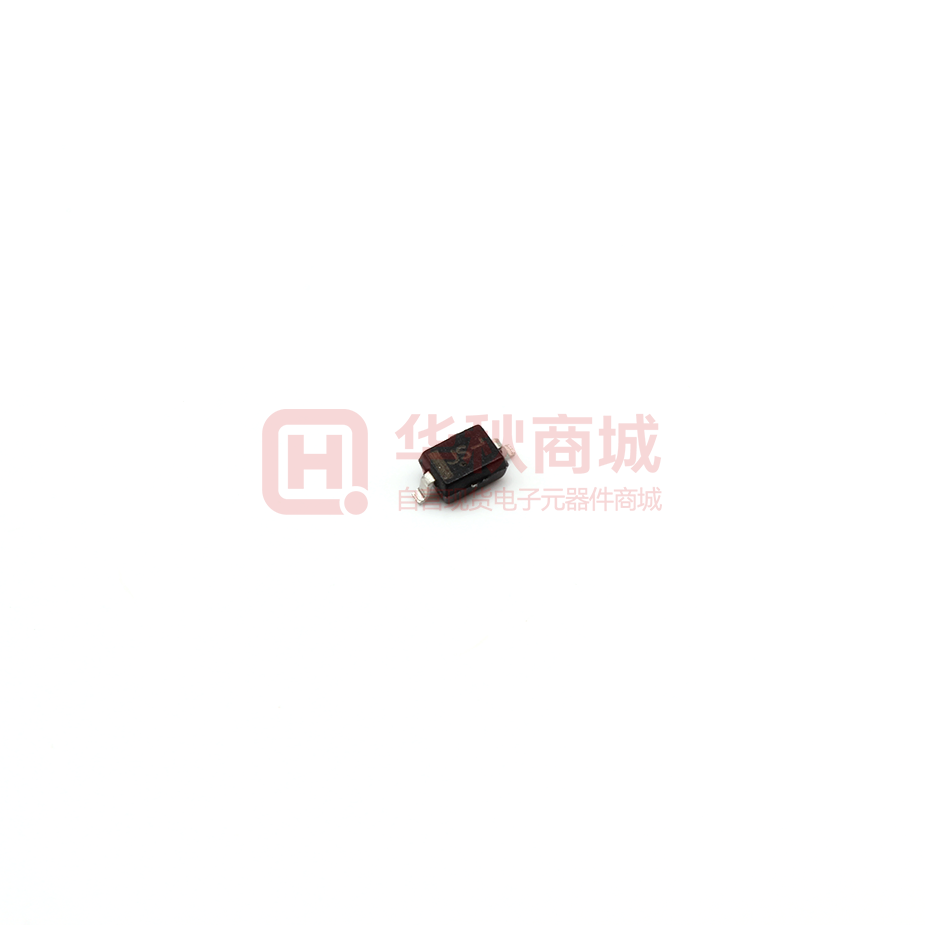

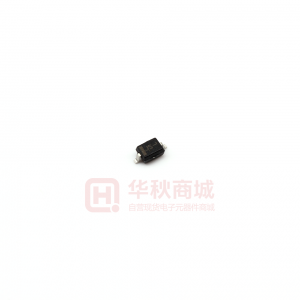

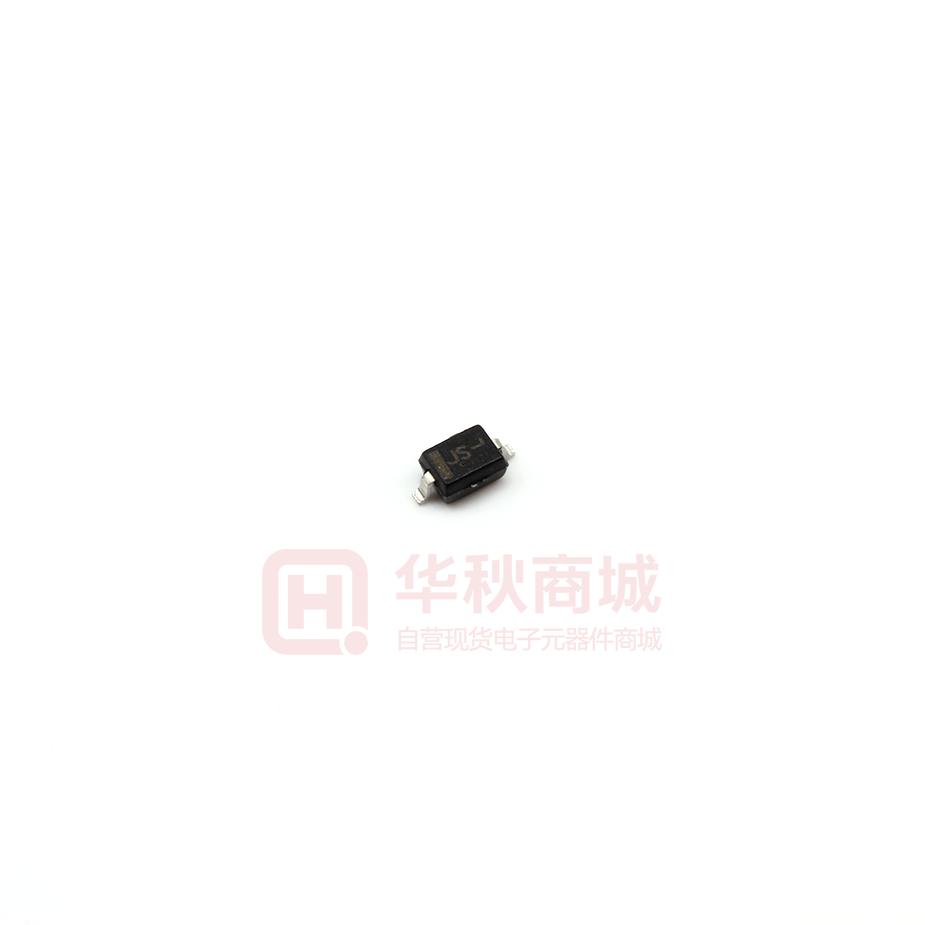

Images are for reference only

Switching Diodes (Small Signal) ON BAS21HT1G

  • Mfr Part #BAS21HT1G
  • ManufacturerON
  • HQ Part #DS0002553
  • PackageSOD323
  • Lead Time Ship immediately
  • Description250V -55℃~+150℃@(Tj) 200mW Single 1.25V@200mA 50ns 100nA@200V 200mA SOD-323 Switching Diode ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Maximum Dissipated Power200mW
Reverse Peak Voltage (Maximum)250V
Diode ConfigurationSingle
Operating Temperature Junction-55°C~150°C
Operating Temperature-55℃~150℃
Moisture Sensitivity Level (Msl)-
Diode Type-
Reverse Withstand Voltage Vr250V
Average Rectification Current If200mA
Forward Voltage Drop Vf1.25V
Reverse Recovery Time (trr)50ns
Reverse Leakage Current Ir100nA
Supplier Device PackagingSOD-323
Package / CaseSOD323
Installation TypeSMT
Forward Voltage VF Max1V
Ifsm - Peak Forward Surge Current20A
Vr - Reverse Voltage250V
Storage Temperature-55~+150℃
Lead Quantity2pin
L x W/Size1.70 x 1.25mm
Country of OriginAmerica
Original ManufacturerON Semiconductor Inc.
Current Dc Forward (If)200mA
Total Capacitance C5pF
Manufacturer'S Standard Lead Time-
Part StatusActive
Lead Free Or NotYes
Terms of Service
ShippingDelivery Period For stock parts, orders placed on HQonline from 8:00-16:00 will be dispatched on the same day
Once shipped, the transit time depends on the logistics provider you choose:
DHL Express, 3-5 days
FedEx International, 3-5 days
China Post Airmail, 15-45 days
Shipping RateShipping rate for your order can be found in the shopping cart.
Shipping OptionWe provide DHL, FedEx, and China Post Airmail shipping.
Shipping TrackingWe will notify you by email with a tracking number once the order is shipped. You can also find the tracking number in the order history.
Returning/WarrantyReturning HQonline only accepts return requests due to quality issues. Return requests should be submitted within 30 days of delivery of the goods, please contact customer service for a return authorization.
Parts should be unused and in original packaging.
The customer has to take charge of the shipping.
Warranty All HQonline purchases come with a 30-day money-back return policy, plus a 90-day HQonline warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by the customer to follow instructions, product modification, negligent or improper operation.
OrderingHow to Buy HQonline accepts online orders.
Add to cart > Check out > Submit order > Complete payment >Delivery
Payment PayPal, Payoneer, Credit Card includes Visa, Master, American Express, JCB, Discover.
Western Union, Bank Transfer, Payoneer, AliExpress.
2,699 In Stock
Minimum20 Mutiple1
Unit Price$ 0.0557
Ext Price$ 0
Add to Cart
Buy Now
Pricing (USD)
QtyUnit PriceExt Price
20+$0.02006 $0.40120
200+$0.01879 $3.75800
500+$0.01751 $8.75500
1000+$0.01623 $16.23000
3000+$0.01559 $46.77000
6000+$0.01470 $88.20000
