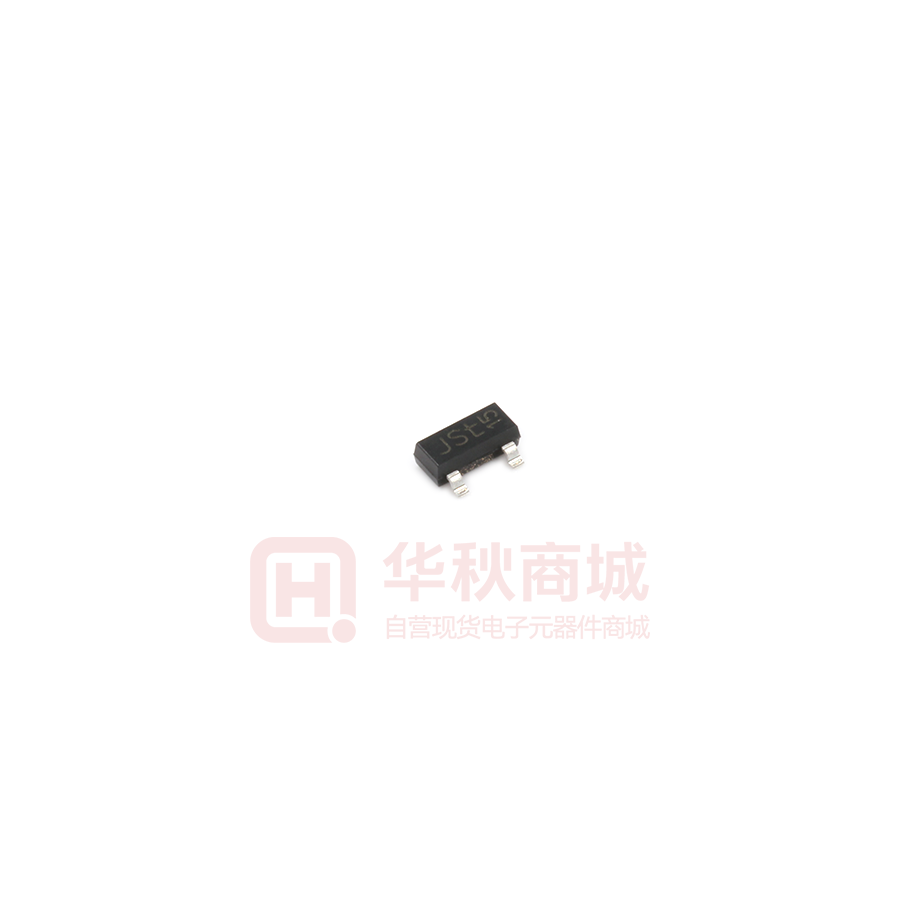

Images are for reference only
BAS21,215
- Mfr Part #BAS21,215
- ManufacturerNexperia
- HQ Part #DS0002444
- PackageSOT23
- Lead Time Ship immediately
DescriptionSwitching Diodes (Small Signal) 250V 3.00 x 1.40mm SMT SOT23 200mA
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Maximum Dissipated Power | 250mW | |
| Reverse Peak Voltage (Maximum) | 250V | |
| Operating Temperature | -55℃~150℃ | |
| Moisture Sensitivity Level (MSL) | - | |
| Reverse Withstand Voltage Vr | 250V | |
| Average Rectified Current | 200mA | |
| Reverse Recovery Time (trr) | 50ns | |
| Reverse Leakage Current Ir | 100nA | |
| Package / Case | SOT23 | |
| Installation Type | SMT | |
| Forward Voltage VF Max | 1V | |
| Ifsm - Peak Forward Surge Current | 9A | |
| Storage Temperature | -65~+150℃ | |
| Lead Quantity | 3Pin | |
| Height | 1.10mm | |
| L x W/Size | 3.00 x 1.40mm | |
| Certification | AEC-Q101 | |
| Printing Code | JS% | |
| Country of Origin | China | |
| Original Manufacturer | Nexperia Semiconductor Co., Ltd. | |
| Brand | Nexperia | |
| Application | - | |
| Forward Current | 200mA | |
| Total Capacitance C | 5pF | |
| Series | - | |
| Part Status | Active | |
| Lead Free Or Not | Yes |
