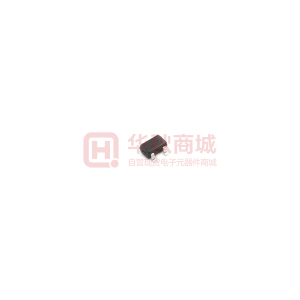

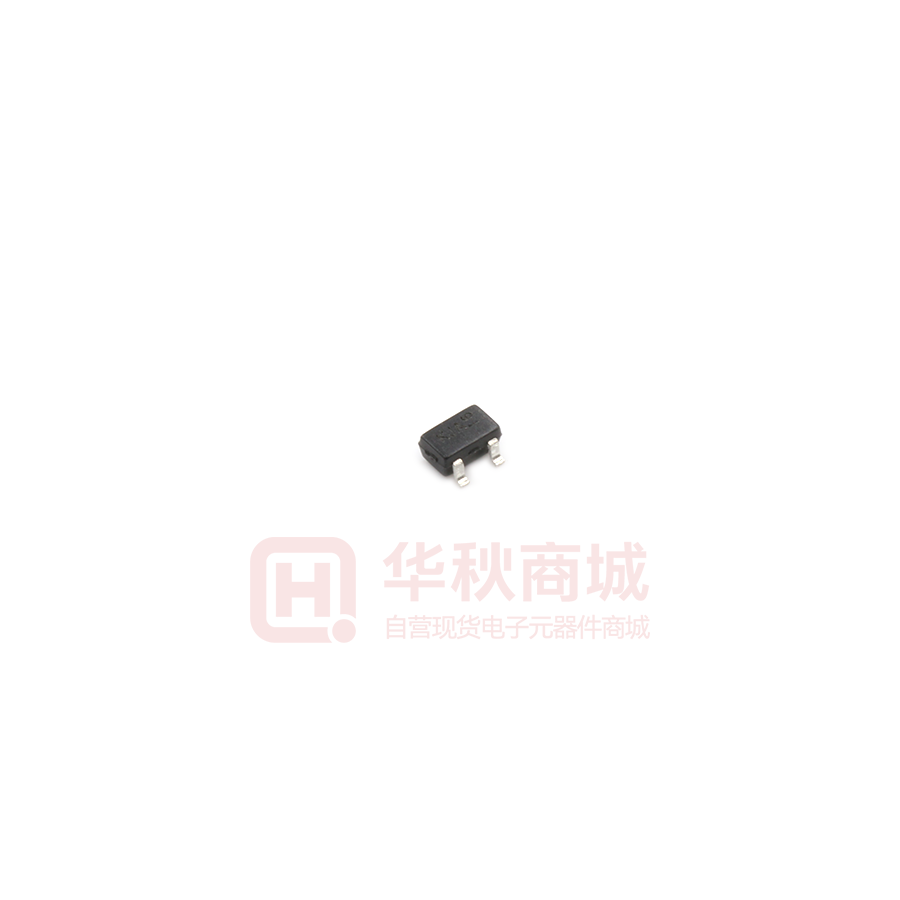

BAV70W-7-F
- Mfr Part #BAV70W-7-F
- ManufacturerDIODES
- HQ Part #DS0025669
- PackageSOT-323-3
- Lead Time Ship immediately
Description75V -65℃~+150℃@(Tj) 200mW Dual Common Cathode 1.25V@150mA 4ns 2.5uA@75V 150mA SOT-323-3 Switching Diode ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Maximum Dissipated Power | 200mW | |
| Reverse Peak Voltage (Maximum) | 75V | |
| Operating Temperature | -65℃~150℃ | |
| Reverse Withstand Voltage Vr | 75V | |
| Average Rectified Current | 150mA | |
| Reverse Recovery Time (trr) | 4ns | |
| Reverse Leakage Current Ir | 2.5µA | |
| Package / Case | SOT-323-3 | |
| Installation Type | SMT | |
| Forward Voltage VF Max | 855mV | |
| Ifsm - Peak Forward Surge Current | 2A | |
| Breakdown Voltage | 75V | |
| Storage Temperature | -65~+150℃ | |
| Lead Quantity | 3Pin | |
| Height | 0.95mm | |
| L x W/Size | 2.00 x 1.25mm | |
| Certification | AEC-Q101, RoHS | |
| Country of Origin | America | |
| Original Manufacturer | Diodes Incorporated | |
| Brand | DIODES | |
| Application | - | |
| Total Capacitance C | 2pF | |
| Series | - | |
| Part Status | Active | |
| Lead Free Or Not | Yes |
